Top Quality 6630 DMD Insulating Paper

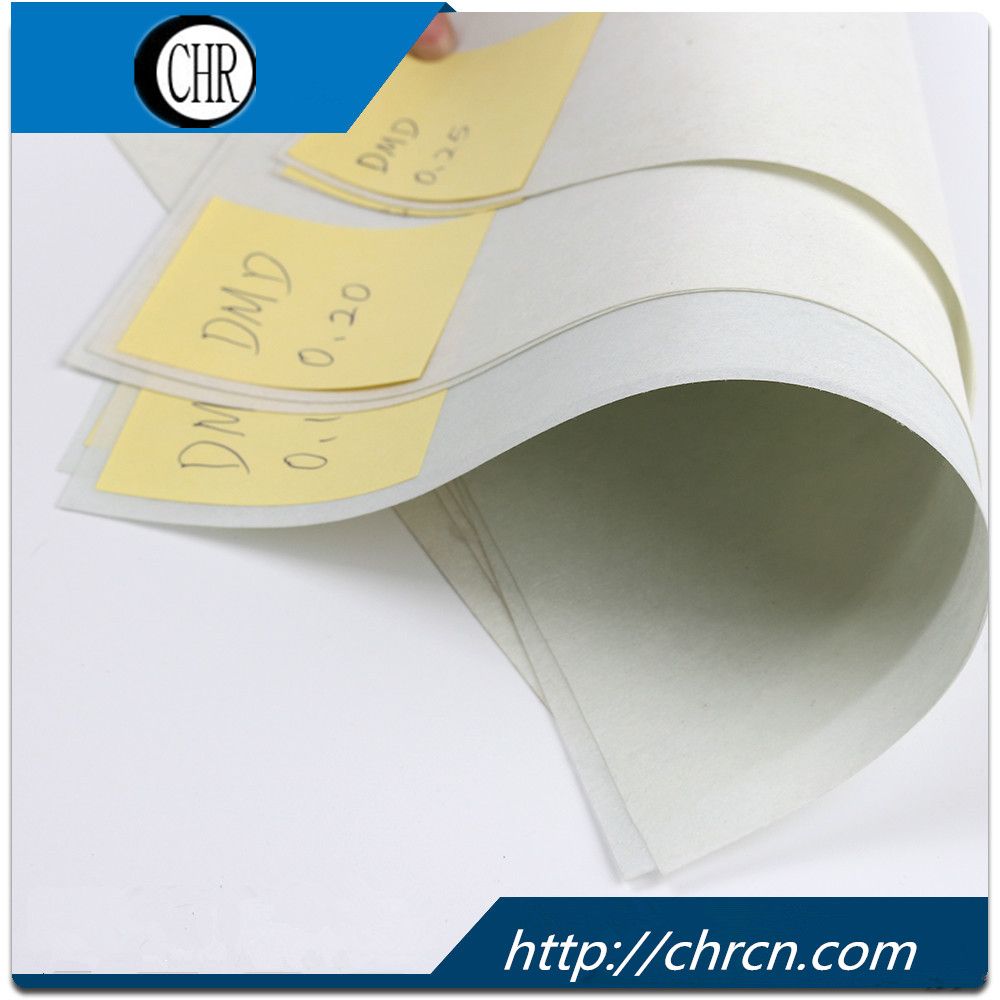

Name: Top Quality 6630 DMD Insulating Paper
Brand: all-electronics-online.com
SKU: 706665092
Availability: InStock
Rating: 4.6 (89 reviews)

Price:	US $ 2.4kg
Trade Terms:	FOB,CFR,CIF
Min Order:	1000kg
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	6630
Markets:	North America,Africa,Mid East,Eastern Asia,Western Europe
Thickness:	0.18mm \ 0.20mm \0.23mm\ 0.25mm\ 0.30mm\0.35mm
Application:	Switch Baseplate
Type:	Solid
Chemistry:	Hybrid Insulation
Material:	Paper
Thermal Rating:	B 130
Maximum Voltage:	<10KV
Brand:	Chr

Product Description

6630 DMD INSULATION PAPER is laminated with two layers of polyester fiber non-woven fabric and a single layer of polyester film in the center,
Characteristic: As slot ,interurn and liner insualtion of B grade electrical machine and electrical equipment.
Key features:
· Excellent electrical properties
· High tear, tensile and burst strength
· Retained flexiblity
· Physical Toughness
· Excellent moisture and chemical resistance
Thickness: 0.17mm 0.20mm 0.23mm 0.25mm  0.30mm  0.35mm
Width: 1000mm   color: white, green
Pacage: carton and pallet     Storage life---1 year

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
