Top Quality Low-Volume Fr4 Rigid Circuit Board
| Price: |
US $ 0.45-0.67/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Structure: |
Multilayer Rigid PCB |
| Material: |
Polyester Glass Fiber Mat Laminate |
| Production Process: |
Subtractive Process |
Product Description
To Quality Low-volume FR4 Rigid Circuit Board
Company profile: One-stop EMS service-----Your reliable PCB and PCBA design assembly Supplier As an experienced PCB and PCBA manufacturer, we provide prototype for small volume and medium volume projects.We are able to guarantee complete services with comprehensive technical backup, offering a cost advantage and scheduled delivery. 2.Our Main Service including offeringRigid Flex Blind Via Board 12 layersImpedance Alumium PCBPCB Assembly PCB Manufacturing Electronics ODM Box BuildingFR4 Rigid Circuit Board Manufacturing CapabilitiesOur circuit board manufacturing capabilities can meet almost 95% demand of customer requirements and actually we concentrated on this field for decades, so plant facilities have been advanced to high level and your intelligent manufacturing could be well handled here| Total Pad Size | Standard | Advanced |
| Capture Pad | Drill + 0.008 | Drill + 0.006 |
| Landing Pad | Drill + 0.008 | Drill + 0.006 |
| BC Mechanical Drill (Type III) | 0.008 | 0.006 |
| Laser Drill Size | 0.004-0.010 | 0.0025 |
| Material Thickness | 0.0035 | 0.0025 |
| Stacked Via | Yes | Yes |
| Type I Capabilities single & Double Deep | Yes | Yes |
| Type II Capabilities Buried Vias with Microvias | Yes | Yes |
| Type III Capabilities | Yes | Yes |
| Copper Filled Microvia | Yes | Yes |
| Smallest Copper Filled Microvia | 0.004 | 0.0025 |
| Copper Filled Microvia Aspect Ratio | 0.75:1 | 1:01 |
| Smallest Laser Microvia Hole Size | 0.004 | 0.0025 |
| Laser Via Aspect Ratio (Depth:Diameter) | 0.75:1 | c |

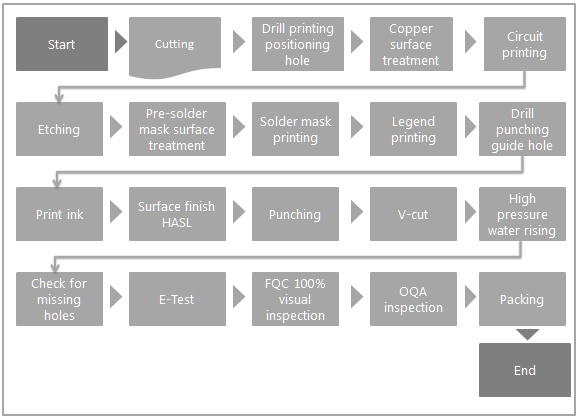

FR4 Rigid Circuit Board Manufacturing Process
We are offering rigid circuit board manufacturing and assembly services to following big customers all over the world
Your rigid circuit board demand will be perfectly handled by our professional production line and responsible work team.
Frequently Asked Questions (FAQs)How we ensure the quality of circuit board manufacturing and assembly?We choose top sheet suppliers to ensure stable performance (general FR-4). During the manufacturing process, automatic copper plating lines and high-speed drilling machines (brand:TMAX) to make accuracy and fast delivery guaranteed. All printed circuit board will be detected by advanced automatic flying probe machines (or test frame ) at subsequent stages to make sure each PCB is OK from inner circuits to outside shape. How long will you get our quotation of PCB manufacturing and assembly?In general, PCB sample is delivered in 24~72 hours (urgent order less than 24 hours). Volume production can be completed in 7 working days. If for subsequent PCB assembly and test requirements, the lead time could be less than 15 days. What kind of files you have to send us to get quotation?You have to send us PCB design files (gerbers or .pcb acceptable), Bill of Materials (BOM), Quantities to make quote and other technical requirements (.step/.txt/.xls files acceptable) What payment methods we can support?We accept T/T, L/C, West Union as payment methods. For prototype order, you have to make 100% payment in advance, but for mass production 70% payment in advance and 30% payment before delivery. What measures we take to avoid counterfeit components?Procurement only from manufacturer or big general agentOriginal quality certificate of component can be issued (if necessary)Inspections of shape, silkscreen and conductivity attributes in incoming quality controlStrong responsibilities and perspectives of long-term relationship What measures we take to protect clients IP and confidentiality?Sign NDA (Non-disclosure Agreement)Using number code in stead of client name during manufacturing processSeparate assembly workshop and taking photo is NOT allowedDocuments of engineering process are archived and reserved
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.
We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.
So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
