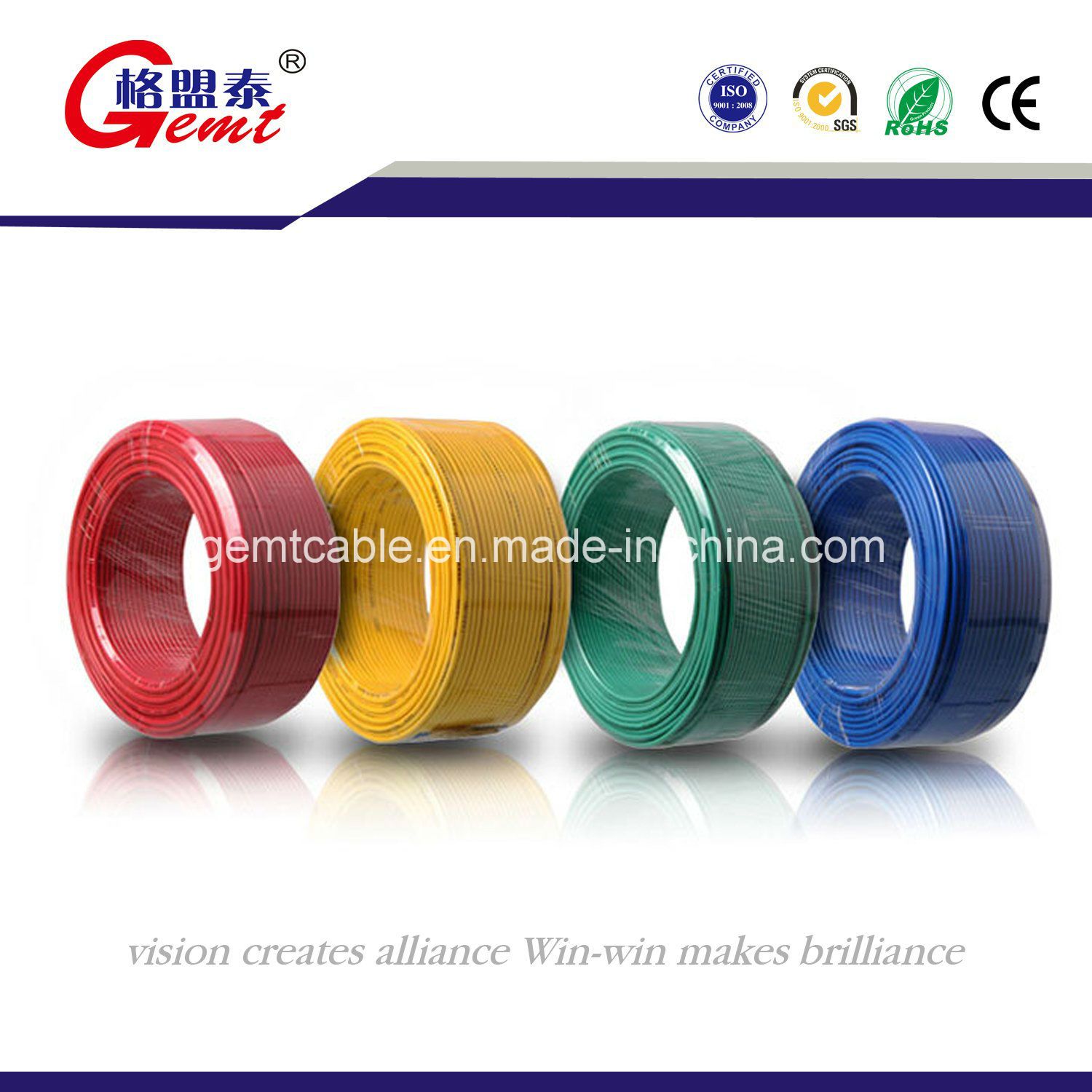

Top Quality PVC Insulated Single Wire Cable Electrical

Prod Model:	BV107
Color:	Black,White,Red,Blue,Yellow etc
Sizes:	Customized
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PE
Certification:	RoHS
Brand:	Gemt

Product Description

Top Quality PVC Insulated Single Wire Cable Electrical

1. Product Description:

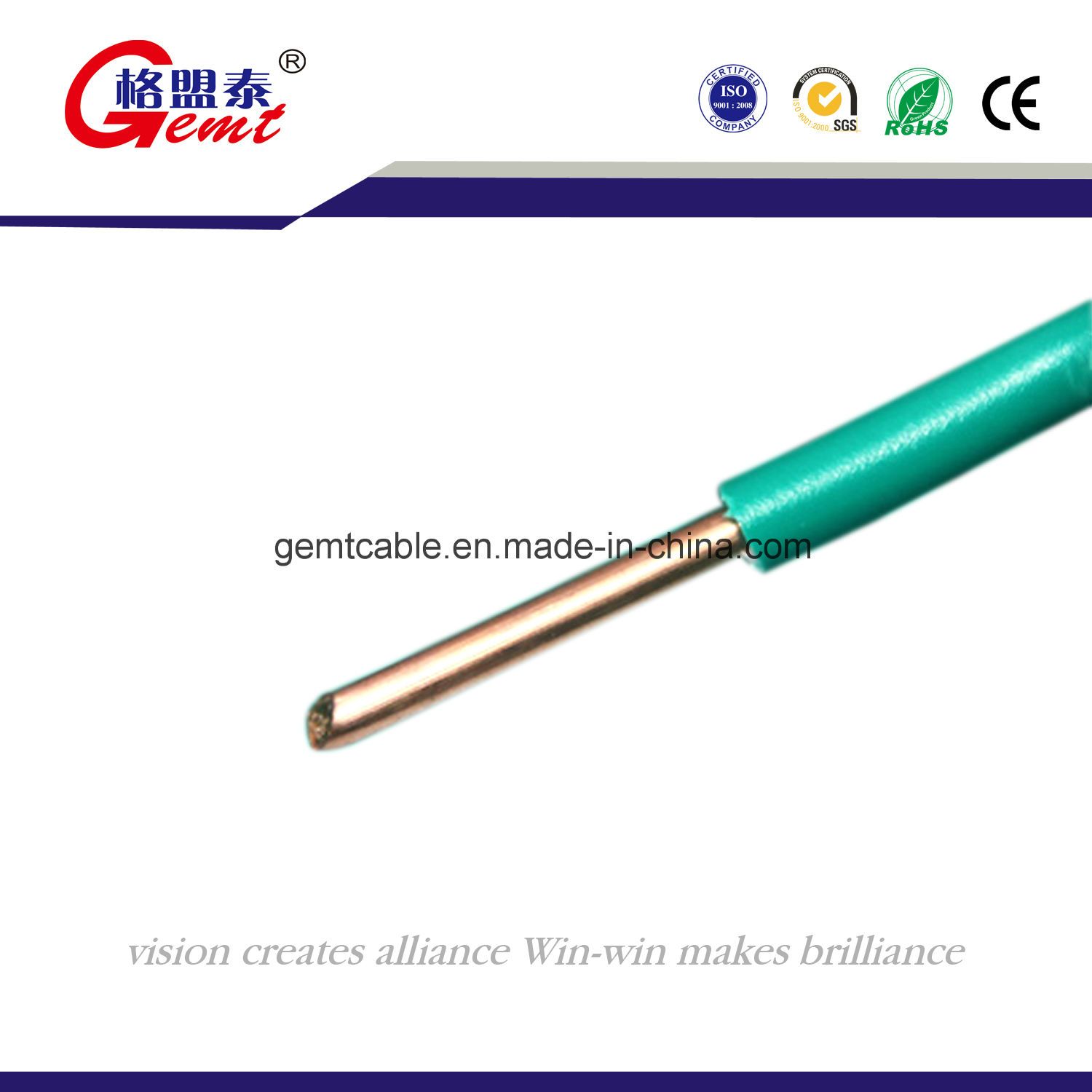

1)Conductor: Copper (70° C single core solid)
2)Insulation: PVC
3)Sheathed: Non
4)Rated voltage (U0/U): 300/500V 400/750V 220V
5)Standard: IEC60227-2003 or as per the customers' requests
6)Purpose: For internal wiring
7)The max continuous operating temperature of the conductor: 70° C
8)The ambient temperature for the cable installation: ≥ 0° C
9)The bending radius of the cable: (D=cable outer diameter, R=bending radius) A. D≤ 25mm, R≥ 4D B. D>25mm, R≥ 6D"

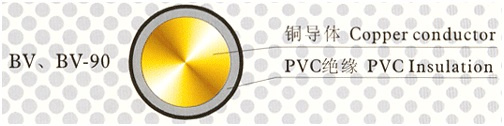

Synthetic data of 300/500V BV model PVC insulated wire with copper core

Nominal cross section of conductor mm2	Minimum number of single line in the stranded conductor	Rated value of insulator thickness mm	Upper value of average overall diameter mm	Minimum insulation resistance under temperature 700C MΩ.km
0.75 1	7 7	0.6 0.6	2.6 2.8	0.014 0.013

Note:  1.Insulator:PVC/C type PVC mixture is adopted as insulating material.
        2.The average overall diameter should not be larger than the upper value stipulated in the
        above table.


2. Detailed Specification:

BS6004 IEC227
MM² Normal area	MM Structure	MM Thickness of insulation	MM App.overall dia
1.0mm²	1x1.13	0.60	2.50
1.5mm²	1x1.38	0.80	3.00
	7x0.52	0.80	3.20
2.5mm²	1x1.78	0.80	3.40
	7x0.68	0.80	3.60
4.0mm²	1x2.25	0.90	4.00
	7x0.85	0.90	4.20
6.0mm²	1x2.76	0.90	5.00
	7x1.04	0.90	5.00
10mm²	7x1.35	1.00	5.80
16mm²	7x1.70	1.00	6.60
25mm²	7x2.14	1.20	10.00
35mm²	7x2.52	1.20	10.00
50mm²	19x1.78	1.40	11.90
70mm²	19x2.14	1.40	13.70

3. Technical Information:
1. U0 /U: 300/500V,450/750V
2. Standard Applied: IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3. Max.Operating Temperature: 70°C,can be 90°C,105°C as per requirent
4. Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5. Insulation:PVC
6.Cores:single core
7.Range of Nominal cross section: 0.75~240sqmm
8. Jacket: without Jacket
9. Color: Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available
11.Packing:100 meter/roll or as per requirement
12. Certification: ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
13.OME can be available
14.BV cables have very good sales over the world,enjoy ing a very good reputation based on top quality,most competitive price and best service.


4. Why Choose Us(GEMT):
   G--Guaranteed quality
   E--Effective service
   M--Mutual benefit
   T--Top technique
   GEMT Cable, Friend Reliable
