| Business Type: |
Manufacturer |
| Connector Type: |
RJ45 Jack Connector |
| Gender: |
Female |
| Positions: |
6/8/10 Pins |
| LED: |
Optional |
| Shielded: |
Yes |
| Application: |
Battery |
| Installation Mode: |
Clamshell-Type T-Flash Jack |
| Type: |
Multi-Tube Jack |
| Interface Type: |
USB |
| Shape: |
Rectangular |
| Production Process: |
Injection |
| Customized: |
Non-Customized |
| Working Frequency: |
High Frequency |
| Feature: |
Moistureproof |
| Cards Support: |
Dual Card |
Product Description

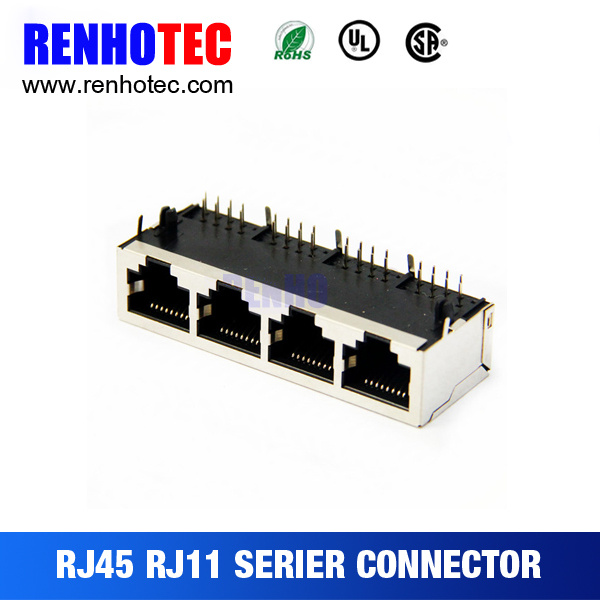

Top Rated Straight Multi-Port Connector 1x4 rj45
»Description:
1000Base-TX RJ45 Tab-up with LEDs Integrated magnetics connector (ICM), designed to support
Applications, Such as Network Interface Cards (NIC), LAN-on Motherboard (LOM), and PC
Applications.
»Features and Benefits:
* Single port (1X1) Tab-up RJ45 with internal magnetics.
* RoHS-6 peak wave solder temperature rating 260 0C.
* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
* Internal magnetics are 100% electrically tested for HI-POT and functionality.
| Product Series | RHT-620 |
| Application-LAN | ETHERNET(NON POE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WITH/WITHOUT LEDS |
| Latch | UP/DOWN |
| Number of Ports | SINGLE PORT WITH USB |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH OR WITHOUT |
| Speed | 10/100/1000/10G BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
»Material Specifications:
* Insert:Plastic:Reinforced FR PA66-B30 UL94V-0.
* Contact Area:Phosphor Bronze, Gold Plated, 6U~50U Optional.
* PCB Terminal:Phosphor Bronze, Tail-Tin over Nickel
* Housing:Reinforced FR PA66-B30 UL94V-0.
* Metal Shell:Copper Alloy, Nickel Plated
* Case:Phenolic, UL94V-0 Black.
