| Prod Model: |
S2800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Range: |
0.75kw-1000kw |
| Output Frequency: |
0.10Hz~400Hz |
| Input Voltage: |
380V(0.75kw-1000kw) |
| Size: |
Frequency Inverter |
| Control Type: |
Open Loop Vector Control |
| Carrier Frequency: |
0.5~15kHz |
| Altitude: |
Lower Than 1000m |
| Storage Temperature: |
-10c to 40c |
| Color: |
Black |
| Input Phase: |
1/3 Phase |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
Vector Control Transducer |
| Output Type: |
1/3 Phase |
| Function: |
Open Loop Vector Control |
| Brand: |
Machtric |
Product Description
Welcome to Machtric Automation Equipment !

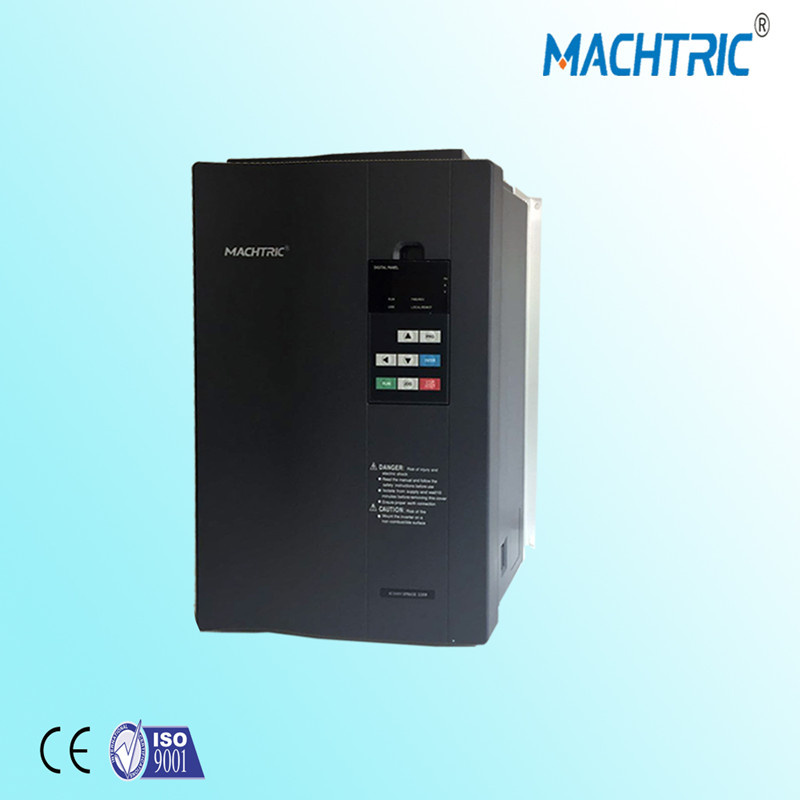

S2800E Series General Used Variable Frequency Inverter
Power Range
220v(0.4kw-3.7kw) (-/+15%) Single phase
380v(0.75kw-1000kw) (-/+15%) Three phase
Techical Index :
Output Frequency : 0hz-400hz
Control Mode : VF control ,Open loop vector control
Failure Protection :25 type of failure protection :over current ,over voltage ,low voltage ,over heat ,short phase ,over load ,etc
Votage Adjustment : Auto maintain output voltage stable in changing of power .
Speed Control Accuracy: Maximum speed +-0.5%with vector senserless control
Off power :Keep running in power off instantly .
Multi-speed Function :8 speeds
Adjustable Frequency : Stable frequency
Model |
S2800 E |
Input |
Rated Voltage& Frequency |
Single phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
Voltage Allowable Range |
220/380±15% |
Output |
Output Voltage Range |
1~rated input voltage |
Output Frequency Range |
0~600Hz |
|
Control Mode |
Sensorless Vector Control, V/F control |
Technic |
Overload Capacity |
150% rated current in 60s; 180% rated current in 10s |
Start Torque |
0.5Hz/150% with vector senserless control |
Adjustment Ratio |
1:100 with vector senserless control |
Speed Control Accuracy |
Maximum speed±0.5% with vector senserless control |
Carrier Frequency |
0.5~15Hz |
Terminal |
Programmable Digital Input |
4 terminals |
Programmable Analog Input |
FIV:0~10V, FIC:0~10V or 0~20mA |
Coupling Output |
1 set |
Relay Output |
1 set |
Analog Output |
1 set-option of 4~20mA/ 0~10V |
Function |
Frequency Setting |
Digital, Analog, Series communication, Multi-Speed, PID, etc |
PID Function |
Built in |
Multi-speed Function |
8 speeds |
Adjustable frequency |
Stable frequency |
Off Power |
Keep running in power off instantly |
Jog Key Function |
Multi-function setting by Users |
Voltage Adjustment |
Auto maintain output voltage stable in changing of power |
Failure Protection |
25 types of failure protection: over current, over voltage, low voltage,
over heat, short phase, over load, etc,
|
Our Services
After-sales Sercive:
1.On year guarantee for whole machine
2. 24 hours technical support by email
3. calling service
4. Have detail manual
FAQ
1. what's the payment term?
We accept T/T, L/C, D/P, WEST UNION, CASH
2. What's the delivery time ?
Usually it will take about two - three weeks for production .It depends on your quanlity .
3. What is the standard of package?
Export standard package or special package according to customer requirement
.
4. what kind of product quality your factory offer?
We offer most competitive prices with best quality
5. Do you accept OEM business?
We accept OEM with your autherization.
6.Which market do you already sell?
We already ship to Europ, Middle East, South America, Asia, Afria etc.
More information ,feel free to contact me !
