| Prod Model: |
SC(B)10 |
| Coil Number: |
Autotransformer |
| Material: |
Epoxy Resinv |
| Rated Capacity: |
30-2500kVA |
| Rated Voltage: |
10kv-25kv |
| Frequency: |
50Hz |
| Standard: |
IEC60076 |
| Certificate: |
ISO9001 |
| Application: |
Electronic |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi |
Product Description
| Features |
1. Safe,hardly inflammable and no pollution for environment protection.
2. Germany HTT technology in Power Transformer manufacturing.
3. Low losses, low noise level, maintenance free, easy installation and obvious low operation cost.
4. Better dissipation of heat, the transformer can operate up to 150% of its rated load under air-forced cooling condition.
5. Highly moisture-proof ability.
6. Temperature protection and surveillance system is avaliable to assure safe and reliable service of Power Transformer.
|
| Function Characteristics: |
SAFE,
fireproof, no pollution, it can be installed directly in the load center.
FREE , MAINTENANCE
easy to install, low total operating costs.
With good moisture resistance, it can work normally under the100% humidity. After it stopped operating, the outage without pre-drying can be put into operation again.
LOW LOSS,
low partial discharge, low noise, good heat dissipation capacity. Under the forced air cooling conditions, it can run at 150% rated load.
The equipped perfect humidity protection & control system can provide reliable guarantee for the safe operation of the transformer. |

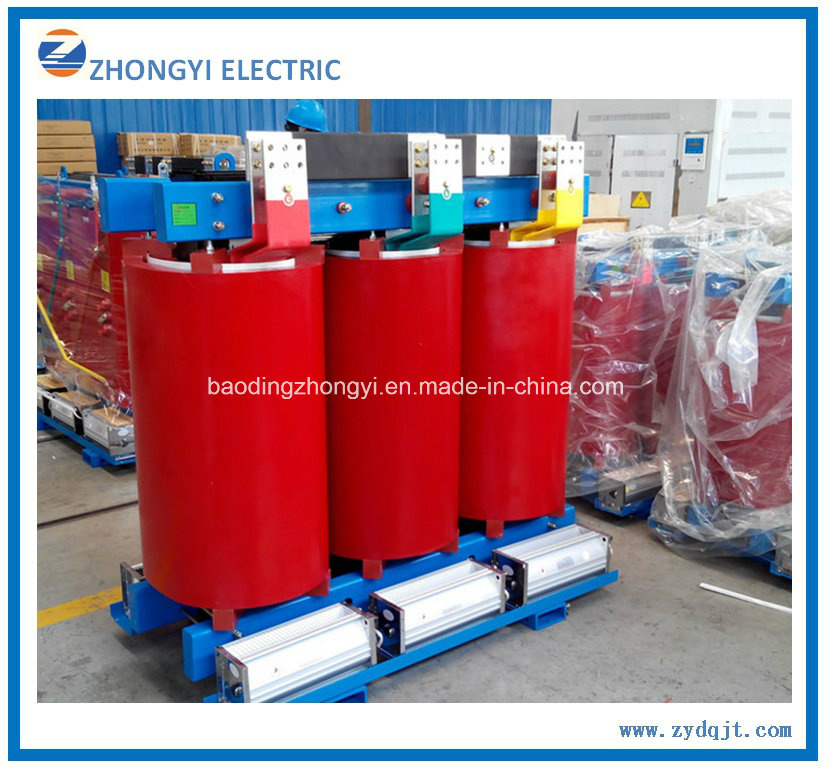

Technical Parameter of SC(B)10 series 10kV Resin-insulated Dry Type Power Transformer
Product Model No. | Connection Group Symbol | Loss W | Impedance Voltage(%) | No-load Current(%) | Overall Dimensions(without enclosure)mm | Weight(Kg) |
| No-load | Load | L | W | H | L1 | L2 | d | f |
| SC10-30/10 |
Y,yn0
D,yn11 | 195 | 705 |
4 | 2.6 | 770 | 550 | 800 | 210 | 210 | 350 | 350 | 330 |
| SC10-50/10 | 270 | 995 | 2.2 | 820 | 600 | 830 | 220 | 220 | 450 | 450 | 380 |
| SC10-63/10 | 330 | 1210 | 2.2 | 850 | 610 | 850 | 220 | 220 | 450 | 450 | 440 |
| SC10-80/10 | 370 | 1380 | 2.2 | 890 | 610 | 860 | 230 | 230 | 550 | 550 | 510 |
| SC10-100/10 | 400 | 1570 | 2.0 | 900 | 610 | 930 | 240 | 240 | 550 | 550 | 590 |
| SC10-125/10 | 470 | 1850 | 1.8 | 900 | 720 | 980 | 300 | 210 | 550 | 660 | 650 |
| SC10-160/10 | 545 | 2130 | 1.8 | 980 | 720 | 980 | 310 | 220 | 550 | 660 | 780 |
| SC10-200/10 | 625 | 2530 | 1.6 | 980 | 720 | 1050 | 315 | 225 | 550 | 660 | 930 |
| SC10-250/10 | 720 | 2760 | 1.6 | 1110 | 900 | 1120 | 320 | 230 | 660 | 840 | 1040 |
| SC10-315/10 | 880 | 3470 | 1.4 | 1110 | 900 | 1275 | 325 | 235 | 660 | 840 | 1180 |
| SC10-400/10 | 975 | 3990 | 1.4 | 1110 | 960 | 1315 | 360 | 320 | 660 | 900 | 1450 |
| SC10-500/10 | 1160 | 4880 | 1.4 | 1155 | 960 | 1330 | 370 | 330 | 660 | 900 | 1630 |
| SC10-630/10 | 1345 | 5870 | 1.2 | 1240 | 960 | 1310 | 360 | 320 | 660 | 900 | 1900 |
| SC10-630/10 | 1300 | 5960 |
6 | 1.2 | 1290 | 960 | 1330 | 350 | 310 | 660 | 960 | 1900 |
| SC10-800/10 | 1520 | 6955 | 1.2 | 1320 | 1020 | 1350 | 360 | 320 | 820 | 960 | 2290 |
| SC10-1000/10 | 1770 | 8130 | 1.1 | 1360 | 1020 | 1455 | 370 | 325 | 820 | 960 | 2700 |
| SC10-1250/10 | 2090 | 9690 | 1.1 | 1430 | 1020 | 1505 | 385 | 340 | 820 | 960 | 3130 |
| SC10-1600/10 | 2450 | 11730 |
8 | 1.1 | 1470 | 1020 | 1695 | 410 | 370 | 820 | 960 | 3740 |
| SC10-2000/10 | 3320 | 14450 | 1.0 | 1580 | 1080 | 1830 | 430 | 405 | 820 | 1020 | 4150 |
| SC10-2500/10 | 4000 | 17170 | 1.0 | 1620 | 1080 | 1900 | 440 | 420 | 820 | 1020 | 4810 |
Notes: The Dimension and weight will be changed according to the requirements. These two data in the table will be subject to the factory
documents.
Packing & Delivery
Packaging Details:
1. Conventional packaging
a. Wooden box
b. Iron shelf
2. Special packaging: According to customer's requirement
|
Our main products:
oil-immersed power transformers,
dry-type transformers,
Europe type 1250KVA Package Transformer 11KV 22KV 33KV Substation
high and low voltage switchgear assembly
and a variety of special-type transformers.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.
The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
