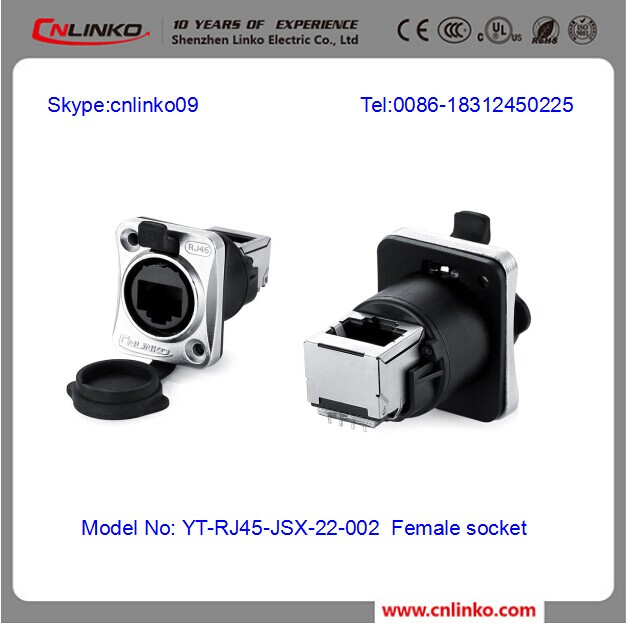

Top Side Dual RJ45 Connector/Cat5 RJ45 Port

Prod Model:	YT-RJ45-JSX-22-002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Specification:	0.15mm-0.2mm2/26-24 AWG
Diameter Range:	Od5.5-7mm
Rated Current:	1.5A
Operating Voltage:	1000V
Protection Level:	IP65/67
Durability:	Over 500times

Product Description

Top side dual RJ45 connector/cat5 rj45 port

1: Compliance with D level or CAT 5E standard of EIA 5688 and ISO / IEC11801, RJ45 connector               compatible CAT6E...
2: D panel connectors, metal shell and locking system...
3: Shielding system with high frequency noise immunity and electromagnetic interference protection...
4: Push-pull design with secure locking system and optional installation of straight or PCB adapter...
5: Waterproof and non-waterproof design, protection level IP65/IP68 if waterproof and dustproof...
6: Solid connections system can provide the solutions for date transmission in harsh environments...
7: Waterproof RJ45 connector

Product Features:

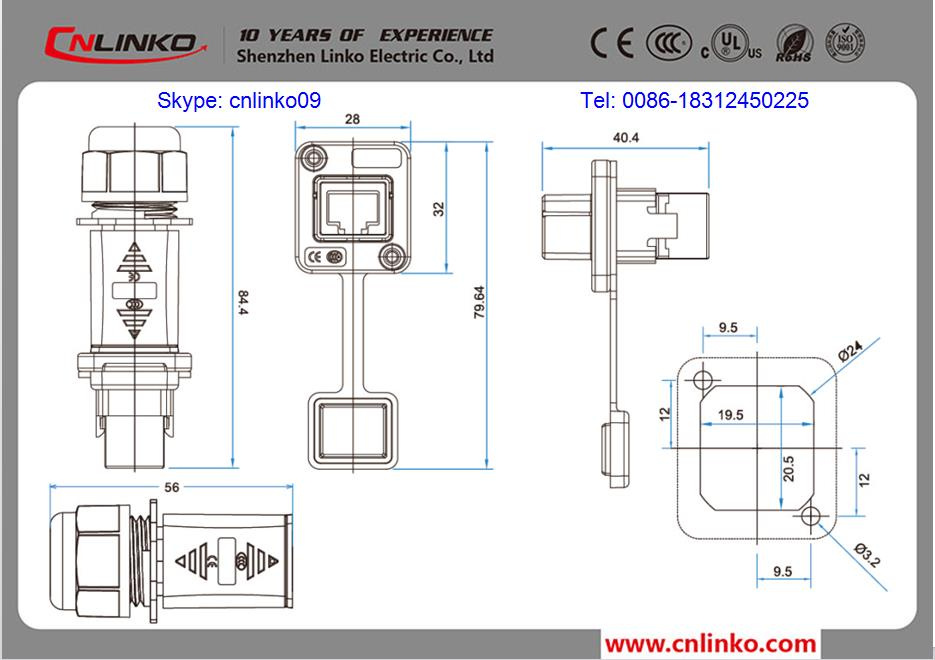

YT-RJ45-JSX-22-002
Specifications:
Connecting mode:	Plug/unplug
Protection level:	IP65
Wire diameter scope:	Φ5.5mm-Φ7mm
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Prevent the combustion level:	UL94-V0
Resistance to vibration:	10-500Hz, 10g, Uninterrupted>100NS
Material:
Shell&insulated parts:	High performance engineering plastics
Sealing:	Silica gel
Hardware:	Zinc alloy (pearl hard chrome)
Flammability rating	UL94-V0
Main characteristics:
- Sealed against dust and fluid (IP65)
- Vibration resistance, impact resistance, stretching resistance
- With one hand, can quickly insert or pull out the
Application industries:
- Stage equipment	- Robot technology
- Medical equipment	- Industrial process control
- Telecommunication equipment	- Mobile control
- Communications equipment	- Video control
- CNC machines	- Remote maintenance

Packing & Payment term & Shippment


Package: 10PCS/ box, 24 boxes / master carton

Payment term: T/T or western uion (100% full payment before shipment)

Delivery time: 3-7 working days after got your payment

Shipping way: By air, by sea or by express (depends on customer's request)



FAQ:


Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits
Q2: What classes do connectors have?


Shape	Frequency	Function
circular	high-frequency	for printed board; cabinets;
rectangular	low frequency	socket connectors; for audio equipment, power, signal, etc.

Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).
1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.
Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.

Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.

Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.

Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.

Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
