| Prod Model: |
tk119-3G |
| Markets: |
North America,South America,Southeast Asia,Eastern Asia,Western Europe |
| Model Number: |
Tk119-3G |
| Color: |
Black |
| Weight: |
50g |
| GSM Frequency: |
850/900/1800/1900MHz |
| WCDMA Frequency: |
W850/W1900/W2100MHz |
| GPS Positioing Accuracy: |
5-15m |
| Working Voltage: |
12VDC/24VDC/36VDC |
| Battery Capacity: |
70mAh |
| Optional Accessory: |
Relay |
Product Description
GPS Tracker Operating Principle
Install Satellite Receiver module and GSM communication module. GPS precise positioning with A-GPS and feedback position to the platform via GPRS at setting times(e. G. Every 30s). It shows the precise position of the device on Google map. We need GPRS to transmit data, so the SIM card needs to open the GPRS function.
Using GPS tracker, we can position, monitor and control the vehicle with the position server via GPRS, GPS and Internet. It can help customers to manage transparently, reduce cost, maintain security and raise efficiency. Now it is widely used in business traffic, logistics distribution, automobile lease, intelligent transportation, shipping market, army and police, rescuing, Safety Supervision, Intelligent city
Product Feature*Supports quad bands, i. E. 850/900/1800/1900MHz,W850/W1900/W2100MHz, worldwide used
*Wide Input Voltage: 9-36V DC.
*GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone APP platform and SMS query.
*Supports multiple alarm, built in acceleration sensor for vibration, collision and falling alarm.
*Speed alarm, shift alarm, Geo-fence alarm,
*In-built battery, low battery alarm, power disconnected alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle.
*Extend I/O to add more funcions (need customization)
*Multiple protocol support, OTA upgrade program.
*Waterproof IP67.
*Mini size, easy to hide and install
*OEM and ODM orders are welcome
Base SpecificationVoltage: 12VDC/24VDC/36VDC
Standby Current: <10mA@12V
Work current: <30mA@12V
GPS positioning accuracy: 15m
GSM positioning accuracy: 100m
GPS Frequency: 1575MHz
GSM Frequency: 850/900/1800/1900MHz
WCDMA Frequency: W850/W1900/W2100MHz
Hot/warm/cold start time: <3s, <15s, <60s
Dimensions (mm): 71.8(L)X38.5(W)X10.5(H)S
Operating temperature: -20º C~70º C
Operating humidity: 20%~80%RH
Net Weight: 50 g
Alarm TypesVibration Alarm
Collision / falling Alarm
Speed Alarm
Shift Alarm
Geo-fence Alarm
GPS Tracker TK115 parameter| Base Specification |
| Voltage: | 12VDC/24VDC/36VDC |
| Standby Current: | <10mA@12V |
| Work current: | <30mA@12V |
| GPS positioning accuracy: | 15m |
| GSM positioning accuracy: | 100m |
| GPS Frequency: | 1575MHz |
GSM Frequency:
WCDMA Frequency: | 850/900/1800/1900MHz
W850/W1900/W2100MHz |
| Hot/warm/cold start time: | <3s,<15s,<60s |
| Dimensions (mm): | 71.8(L)X38.5(W)X10.5(H) |
| Operating temperature: | -20ºC~70ºC |
| Operating humidity: | 20%~80%RH |
| Net Weight: | 50 g |

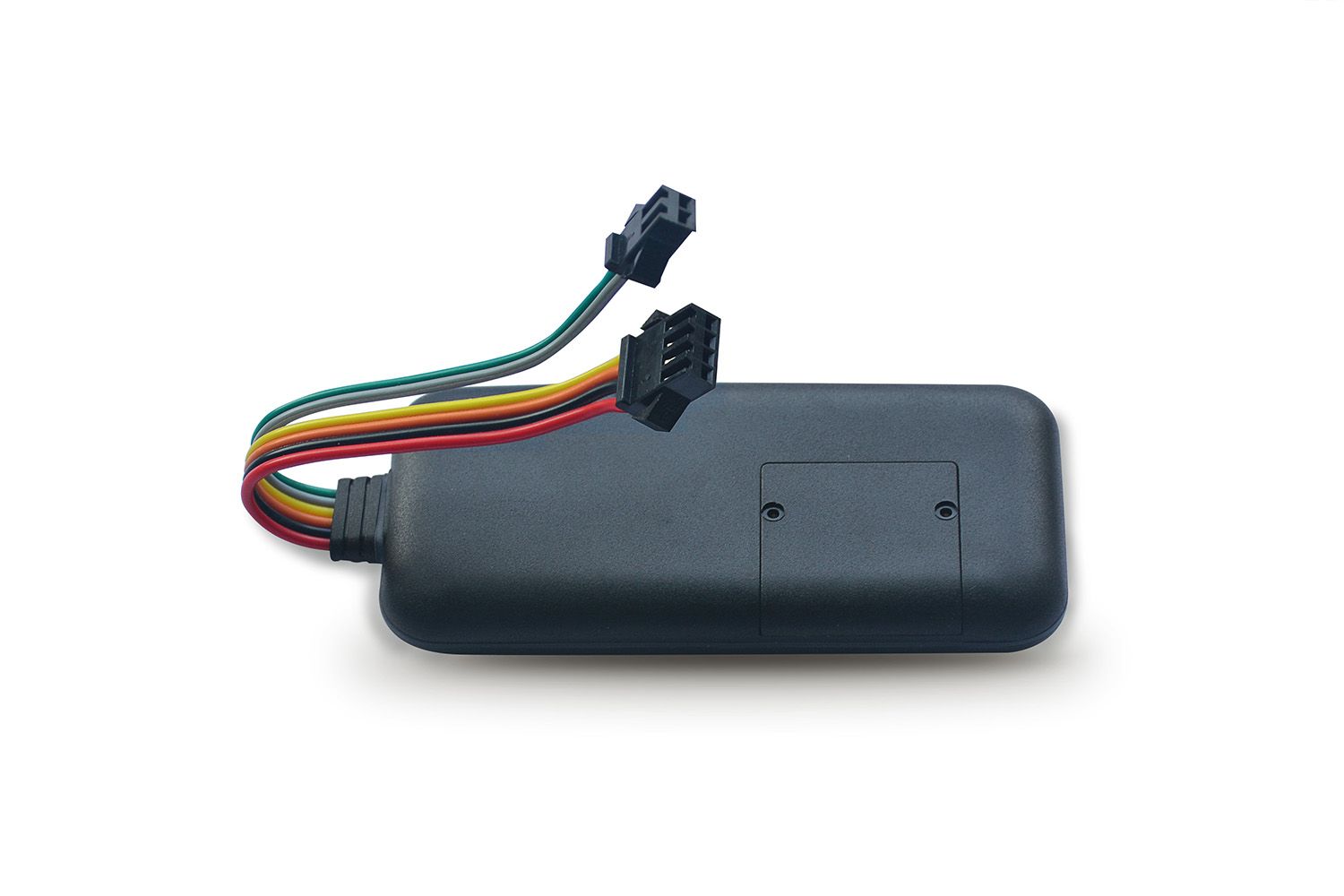

GPS vehicle tracker TK119-3g Produc Picture

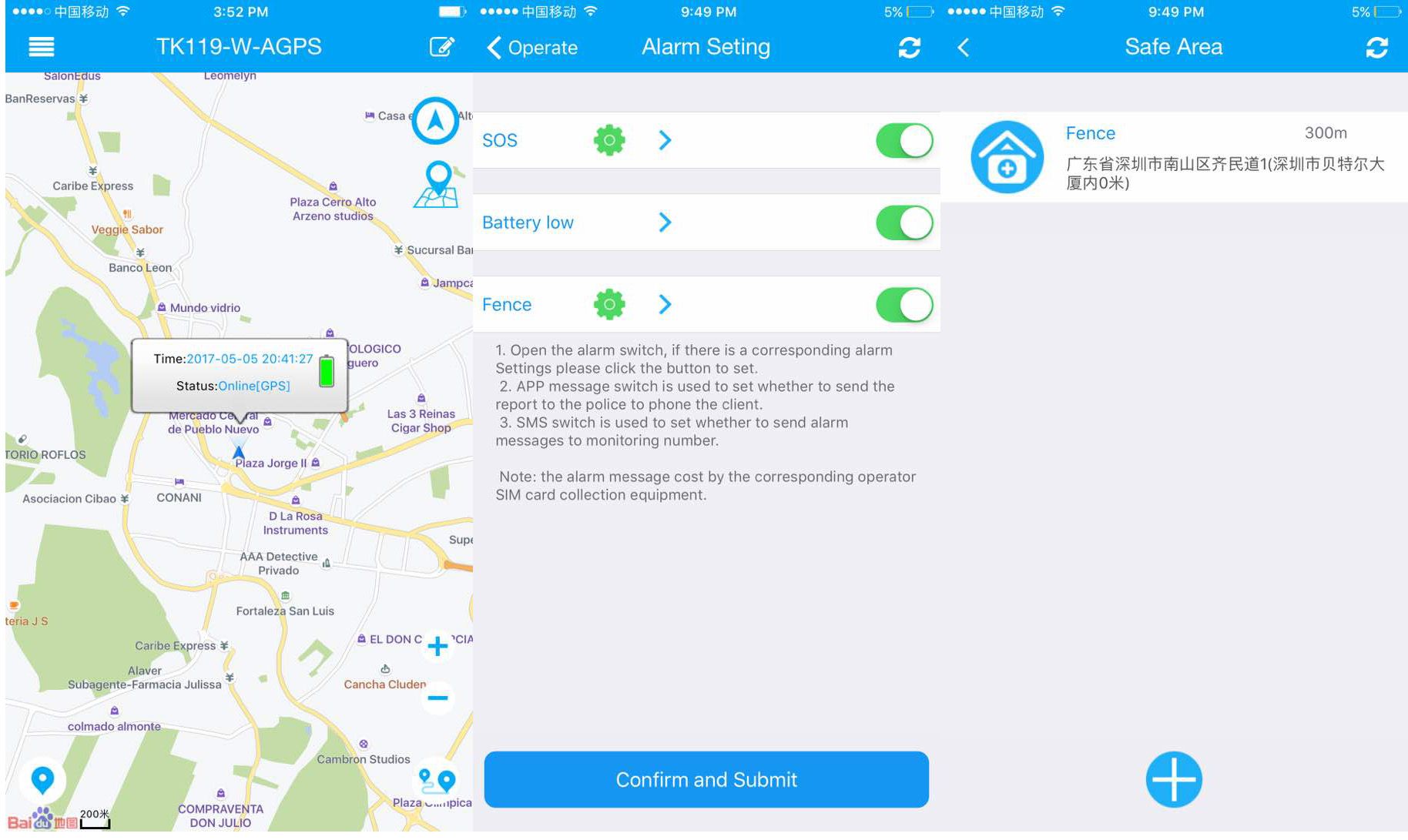

PlatformYou can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track,multiple alarms setting on the platform server.
Delivery*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
OEM&ODM Service
1.Customize logo and brand print on the device.2.Customize the tracker for special functions.3.Offer software customization service,such as communication protocol.
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
