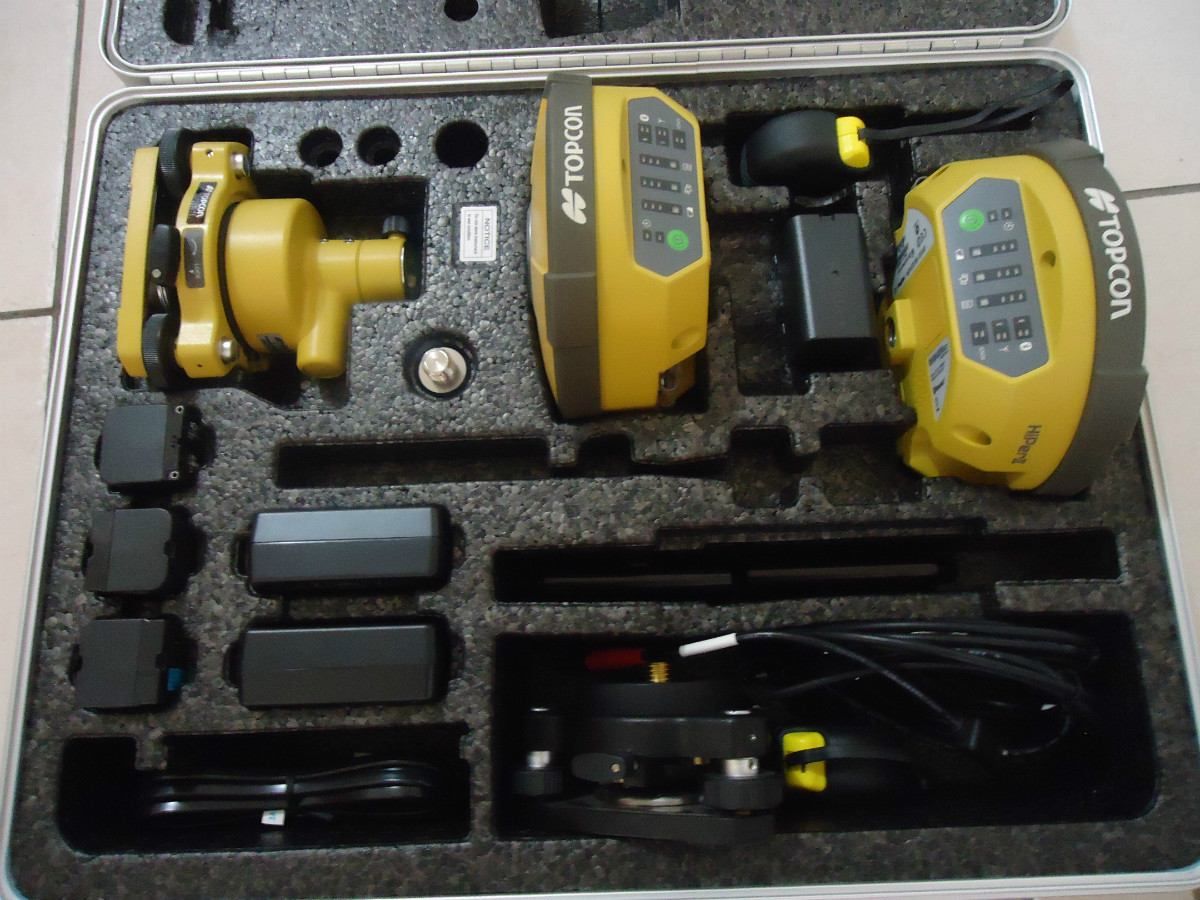

Topcon GPS Hiper II Rtk Gnss GPS

Prod Model:	Hiper II or V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name And Model:	Topcon Rtk GPS Hiper II or Hiper V
Type:	GPS Receiver
Use:	Automotive&Hand Held

Product Description

Topcon GPS HiPer II
HiPer II The Next Generation Dual Frequency GNSS Receiver
Topcon raises the industry standard once again by presenting the next-generation of the world's most popular receiver system the HiPer II. Smaller, lighter, faster, more affordable: The HiPer II receiver is designed on these
Clear-cut concepts.
This state-of-the-art receiver not only offers further enhanced agility, but also increases receiver
Performance and user-friendliness as well as the fully customizable structure providing our customers
With the maximum flexibility to choose the system options they require.
Features:
Smaller. Lighter. Faster. More Affordable.
Integrated GPS+GLONASS RTK & Static Receiver
Rugged, Lightweight, Magnesium Alloy Construction
Cable-free Bluetooth® Wireless Operation
Optional integrated SS or Digital UHF Radio
Optional integrated GSM or CDMA Modem
Bright, easy-to-read LED Panel
Voice Messages for Receiver Status
SD/SDHC Memory Card Slot
Removable Li-ion Battery
Internal GSM/CDMA Modem for Network RTK
Designed as a perfect network RTK rover, the HiPer II gives you the option of an internal GSM or CDMA cellular modem.
With its completely integrated design, the HiPer II eliminates the hassles of external modems and cables, all in a
Lightweight, rugged design.
Voice Messages for Receiver Status
Multi-lingual, clear-tone voice messages notify the users of critical receiver information and status such as satellite signal interruption,
Radio interference, low battery,
Low memory and more. This feature improves your efficiency by providing information without having to look at the
LED display or controller screen.

RTK
Horizontal:	+(10mm+1ppm)RMS
Vertical:	+(20mm+1ppm)RMS
Initializing Time:	10S
Initialization Reliability:	Typical>99.9%
Static
Horizontal:	+5mm+1ppm)RMS
Vertical:	+(19mm+2ppm)RMS
Physical Reference
Size (HXD):	84mmX190mmX200mm
Weight:	1.4Kg (With Battery)
Electronic Reference
Power Consumption:	2.8W
Battery Volume:	2200mAh
Battery Life:	8 Hours (Static) 4.5 Hours (RTK) 1000 Recharges
External Power:	9-18 VDC
Environment
Working Temperature:	-30 - +65
Storage Temperature:	-40 -+75
Humidity:	100% condensation
Waterproof and Dustproof:	IP67, protected from temporary immersion to depth of 1 meter, floating.
Shock and Vibration:	Survive from 2 meters drop onto concretes
Characteristics
Buttons and Display:	2 buttons/4 LED lights
I/O:	RS232, High-speed USB, Bluetooth
Channel:	72 Channels
Datalink
Power (UHF):	1W-20W Adjustable
Band Width:	410-430 MHz / 430-450 MHz / 450-470 MHz
