| Prod Model: |
TK228 OBD2 gps alarm system-EZ |
| Working Voltage: |
+6.0 ~+45VDC/1.5A |
| Backup Battery: |
Rechargeable 3.7V 200mAh Li-ion Battery |
| Dimension (Main Unit): |
54.0*51.5*28.5(mm) |
| GSM Frequency: |
Quad-Band: 850MHz/900MHz/1800MHz/1900MHz |
| GPS Chipset: |
U-Blox7 Chipset |
| GPS Sensibility: |
-162dBm |
| Working Temperature: |
-20 ~ 85 Celsius |
| Humidity: |
0 ~ 95% |
| Type: |
OBD 2 GPS Tracking |
| Chip: |
U-Blox Chipset |
Product Description

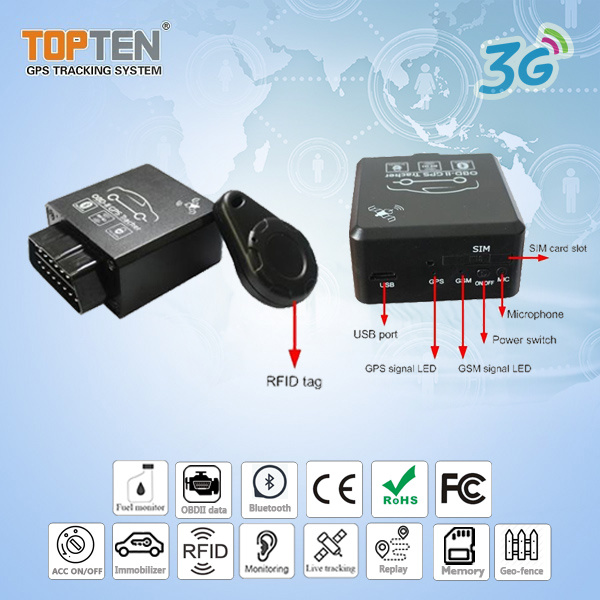

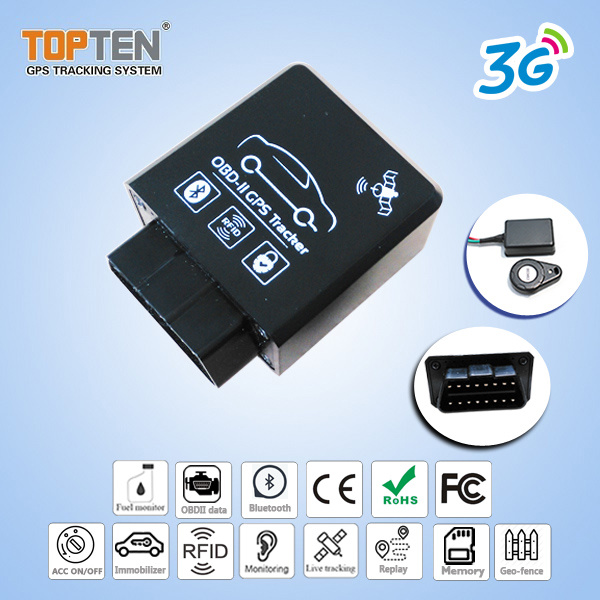

TK228 OBD-II GPS Tracker is a multifunctional product. It is an integration of
OBD-II GPS tracker + RFID car alarm + Remote/Bluetooth Diagnostics + Wireless immobilizer.

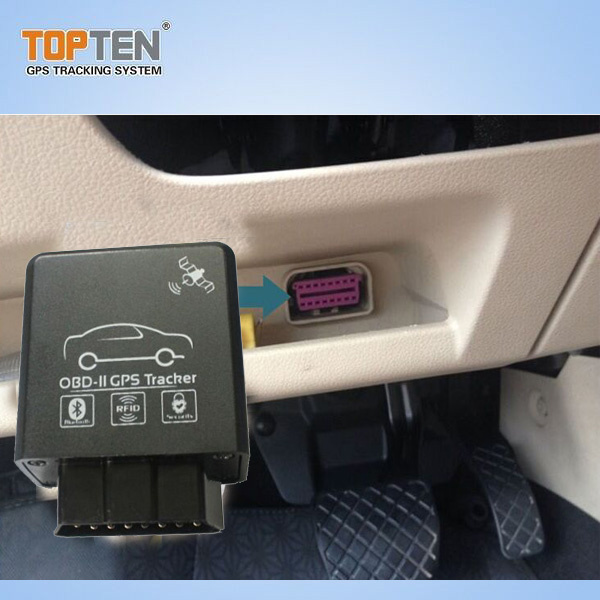

It has plug & play design, which is compatible with all the cars with OBD-II connector, and it supports most CAN-BUS protocols.
The device will read vehicle's ECU's data (speed, rpm, odometer, speed, driver behavior data...etc) via CAN-BUS and send out by GPRS network remotely or by blue-tooth connection on spot.
It adapts 2.4Ghz RFID technology, which can make it work as a simple keyless alarm system with easy installation. In arm status, the following operations will trigger alarm: engine on, vibration, cut-off power & take-out of the device. The system will send out alarm message with location by SMS/GPRS to your mobile phone or tracking center immediately.
Main function: 1. Plug & play design with OBD-II connector, compatible with all the vehicles with OBD-II connector, supports most CAN-BUS communication protocols;
2. It is the integration of GPS tracker + RFID car alarm + Bluetooth diagnostics;
3. Arm/disarm by SMS/phone call, or by 2.4G RFID tag automatically;
4. Check the real physical address (such as city name, street name.) directly;
5. Track by SMS/website to get the latitude, longitude, speed, direction & odometer etc.;
6. Movement alarm, Over-speed alarm, Geo-fence alarm;
7. Engine on alarm, power failure alarm, vibration alarm;
8. Anti-tamper alarm. Once the device is disconnected, it will trigger the alarm;
9. Built-in shock sensor for power saving & triggering vibration alarm;
10. Monitor the voice;
11. Supports 2.4G long-distance contactless RFID function(optional);
12. Keyless RFID car alarm function(optional);
13. Accurate odometer & speed reading directly via CAN-BUS;
14. Data logger 8Mb for offline GPS waypoint;
15. Read the vehicle error code & clear the error code ;
16. Built-in rechargeable backup battery; when the car battery is cut off or damaged, the built-in backup battery can work for emergency check, and the system will send out power failure alert immediately.
17. Two kinds of location information; user can check the GPS latitude, longitude, speed, direction. If there is no GPS signal, user could also locate the car by GSM base station code.
18. Remote diagnostics function. Transmission of the following data via blue-tooth or GPRS network:
(1) Battery's voltage, RPM, speed, TAP throttle opening, engine load, coolant temperature, fuel consumption, odometer, error code & times, acceleration times & deceleration times;
(2) Driver behavior data: ignition time, total driving time, total idling time, average engine hot-start time, average speed, history high speed, history RPM, total acceleration times & total deceleration times.
| size of main unit | 54.0*51.5*28.5(mm) |
| weight of main unit | 73g |
| working tempreature | -20~85 degree celsius |
| humidity | 0 ~ 95% |
| GSM frequency | Quad-band: (850MHz/900MHz/1800MHz/1900MHz) |
| GPS chip | Ublox chipset |
| Working frequency | 1575.42Mhz C/A(GPS) |
| Receiving sensitivity | -162db |
| Positioning accuracy | ≤15m (wide-open area) |
| Speed accuracy | ≤0.2M/S (wide-open area) |
| Positoning mode | Auto 2D/3D |
| Working voltage | +6.0 ~+45VDC/1.5A |
| GPS Position time | Cold start: 60 seconds Warm start: 10seconds |
| Power Consumption | Working current: 50mA; Peak current: 1000mA; |
| Inside Backup battery | Rechargeable 3.7V 500mAh Li-ion battery |
| Standard package: | |
| main unit | 1 pcs |
| Manual user | 1 pcs |
| Optional Accessories | |
| Extended Cable | |
| 2.4 G RFID tag | |

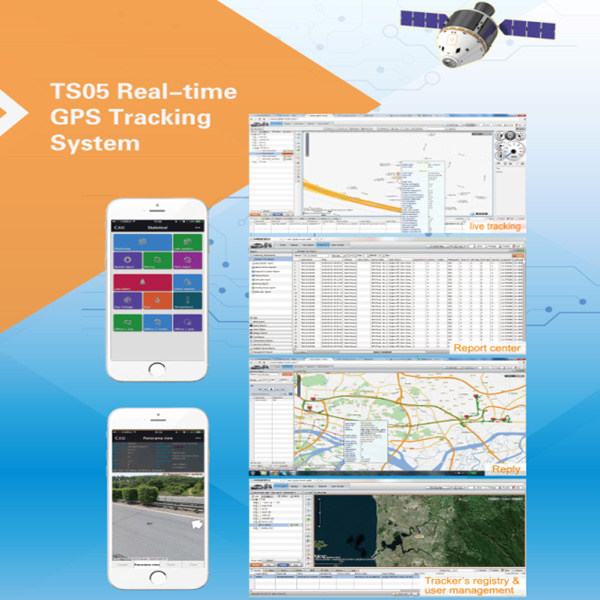

Realtime GPS Tracking Platform
demo account for login:
www.topten-track.com username: abcdeee password: 111111

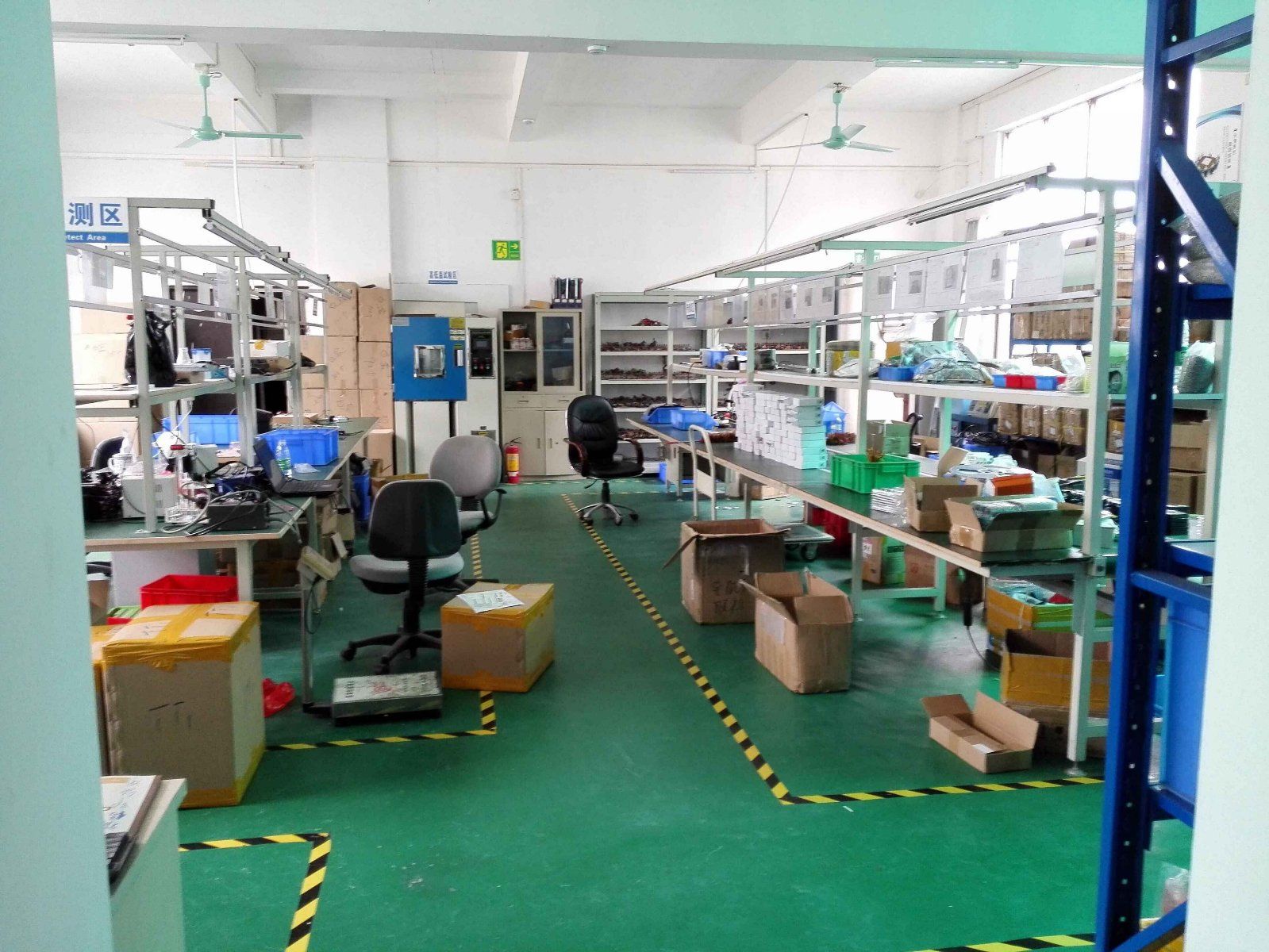

Workshop for gps tracker, car alarm
