Toroidal Power Line Common Mode Choke Inductor Coil

Name: Toroidal Power Line Common Mode Choke Inductor Coil
Brand: all-electronics-online.com
SKU: 811860855
Availability: InStock
Rating: 4.5 (48 reviews)

Price:	US $ 0.5-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TCC
Environmental Certification:	ISO14001
Quality Certification:	ISO9001
Safety Certification:	CQC03003095~3097
Other Certification:	RoHS
Material:	Copper
Product Name:	Common Mode Choke Coil
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	Liwang

Product Description

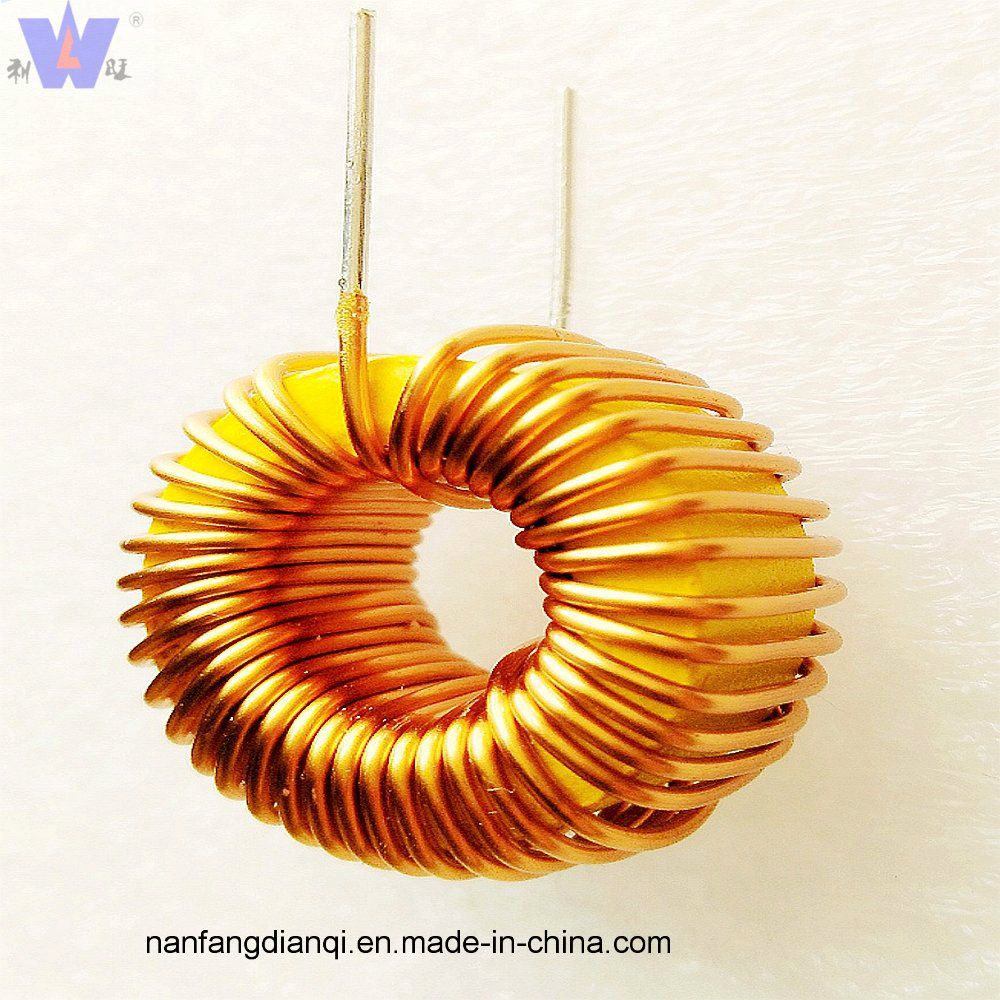

Toroidal Power Line Common Mode Choke inductor coil
Detailed Product Description
1. Gnetic-Flux-Small Leakage Loss;
2. All Size, Low DC Resistance;
3. Toroidal Choke Coil;
4. RoHS

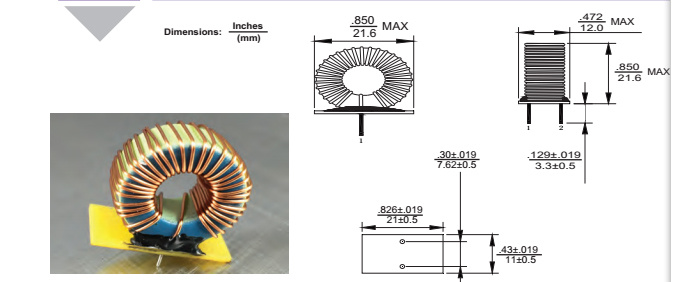

Dimension :

12X6X4mm	12.7X7.9X4.5mm	12.7X7.9X5.2mm	12.7X7.9X7mm	13X7X5mm	14X8X4mm
14X8X9mm	14X9X5mm	16X9X5mm	16X9X8mm	16X10X5mm	16X10X8mm
16X12X8mm	18X10X7mm	18X10X7mm	18X10X12mm	19X13X6mm	20X10X10mm
20X12X8mm	20X12X10mm	22X14X6.5mm	22X14X8mm	31X19X8mm	31X19X12mm
31X19X15mm	36X23X15mm	37X22X10mm	37X22X10mm	37X22X14mm	38X19X13mm

Toroidal inductors Feature:
. Small profile
. Large current
. Low resistance
. MPP, hi-flux, sendust/RF carbonyl, and iron power core
. For excellent EMI suppressor
. High frequency and low loss
. Common mode filter
. Toroidal inductor
. For excellent EMI suppressor
. High-frequency, low loss toroid common mode choke coils
. Toroid common-mode filter coils
. Toroidal common-mode inductor
. For SMPS application
. SMT and low profile available
. RoHS compatible (Pb free) versions available
Application: Computer systems, perpheral units, Nc machines, TV. VCRP

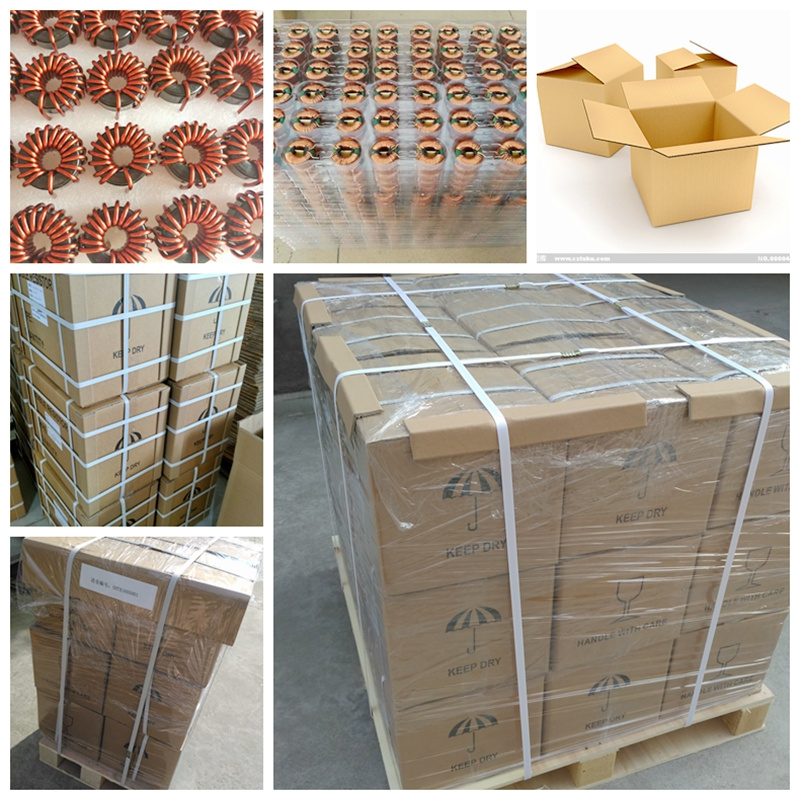

Package :

Contact Us:

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
