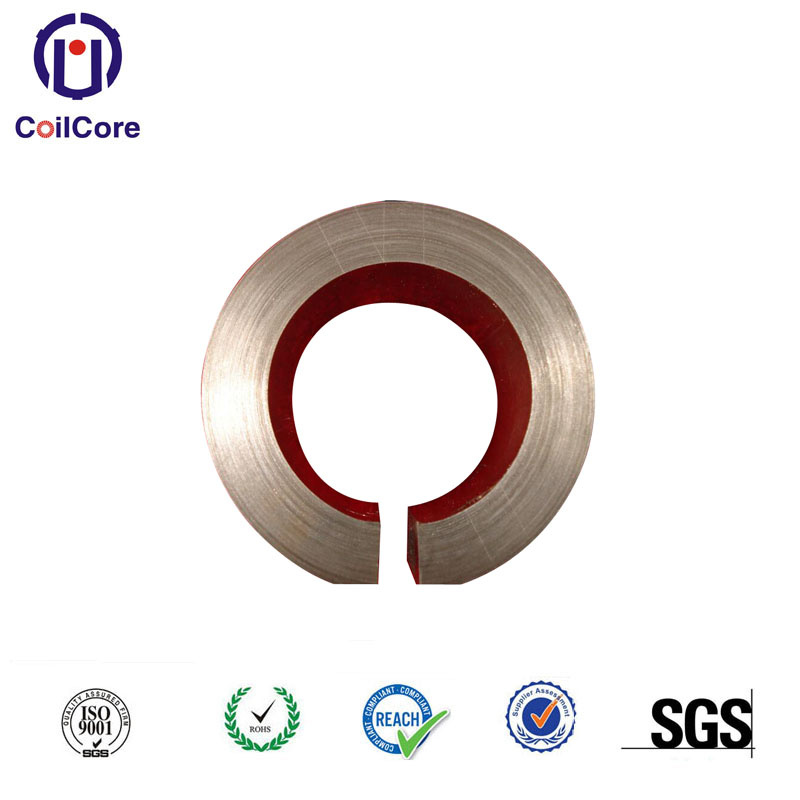

Toroidal Power Transformer for Round Amorphous Cut Core

Name: Toroidal Power Transformer for Round Amorphous Cut Core
Brand: all-electronics-online.com
SKU: 821253315
Availability: InStock
Rating: 4.4 (77 reviews)

Price:	US $ 0.1/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CORE AM ID/ODXH
High Saturation Magnetic Induction:	Low Core Loss
Application:	Audio
Type:	Current Transformer
Phase:	The Size Can Be Customized

Product Description

There are some information of the product:

High frequency low loss, rapid quenching soft magnetism crystalline alloy.

Characteristics:Made of Fe-based amorphous soft magnetic material, high saturation magnetic
flux density, wide range of constant, low loss at high frequency, low leakage magnetic pole,
frequency characteristics, excellent temperature characteristics.

Main applications:Car audio filter inductance, differential-made inductors for EMC anti-jamming,
charging circuit output smoothing filter and energy storage inductors.

Material characteristics:

Physical properties

Saturation magnetization(Bs)	1.25T	Saturation magnetostrictive coefficient(λs)	<2×10-6
Curie temperature(Tc)	560ºC	Density(d)	7.3g/cm3
Crystallization temperature(Tx)	510ºC	Resistivity(ρ)	130μΩ-cm
Hardness(Hv)	800	Continuous operating temperature range	-55~130ºC

Magnetic properties

Annealing method	Non-magnetic annealing
Initial permeability	>150,000
Maximum permeability	>600,000
Residual magnetic flux density	0.6T
Coercivity	<0.8A/m
Iron loss P(20kHz,0.5T)	<25W/kg
Iron loss P(100kHz,0.3T)	<150W/kg
Iron loss change rate (-55ºC~125ºC)	<15%

Get in Touch

More info about our company and our products, please feel free to contact with us, our team is ready to support you.

Tel : +86-20-85649266

Fax : +86-20-85649263

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:
