Toroidal Transformer Coil Winding Machine with ISO9001 Ce IEC Approval

Prod Model:	GB1025
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Toroidal Transformer
Input:	220-240VAC
Output:	220-240VAC
Power:	250va-500va
Frequency:	50Hz/60Hz
Model Number:	250va-500va
Coil Number:	High Flux Density Grain- Oriented Silicon Steel
95% Efficiency:	Power Factor: 0.9 to 0.98
Transformer:	Converters Ring Transformer
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Usage:	Power, Electronic, Audio, Instrument, Rectifier
Brand:	Grewin Toroidal Transformer

Product Description

1.The dimension of the GREWIN electronic toroidal transformer coil winding machine without toroidal coil noise

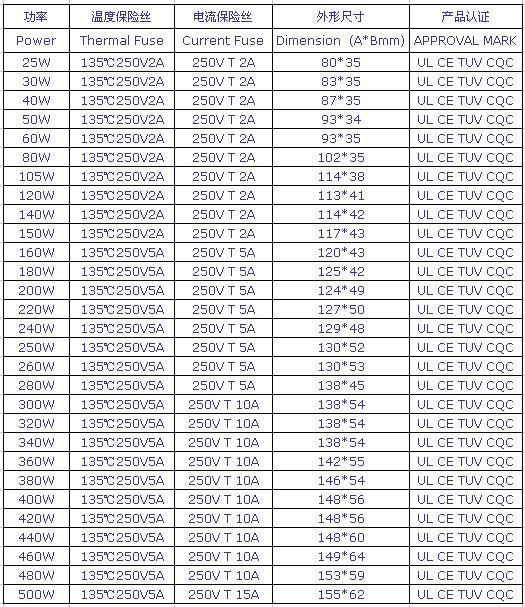

The Partial List of GW-B  Series Toroidal Transformers with Cable and Mounting Holes:

A
1. Installation:

 Horizontal (non-conventional-type base plate), sunk, side type, and bridge.

2.Application:
Especially low-hum and low-dispersing construction
Low-level of induction
High-grade design casing possible
Statically shield winding and magnetical shield winding optional .

Be used widely such as audio equipment,communication,new energy areas,Electrical control,Cable TV network etc.
3.Equipment:
Over 50 sets toroidal/annular/ ring coil winding machines, 3 EI type transformer lines, 2 sets of vacuum annealing furnaces, A set of nitrogen and hydrogen production equipment as below:
. Automatic Winding Machine
. Semi-automatic Winding Machine
. Toroidal Winding Machine
. Insert Lamination Machine
. Wave Soldering Machine
. Plastic Termal Ultraviolet Machine
. Domino Ink Jet Printing Machine
 Transformer Multitester for High & Low Frequency
 Layer Insulation Withstand Voltage Tester

4.Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
5.Certificate
The certificate of our transformer has CE CQC RoHs UL
6.Note
The above-mentioned toroidal transformer is frequently-used, we can also manufacture the products by customer design. And the specification is for reference, if has the change further, please take the material object as the standard.

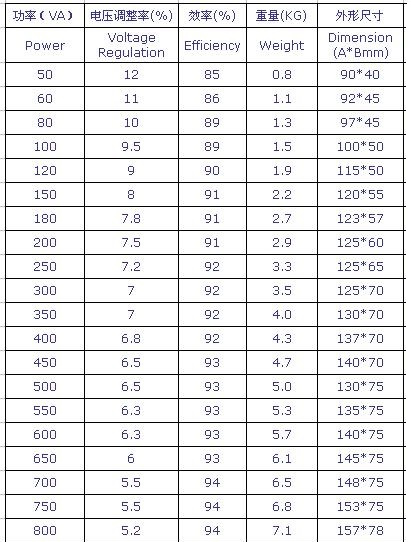

7.GREWIN'S Dimension :
External diameter: 55mm-300mm, height :13mm-130mm, Efficiency: 75-98%
we can design the appropriate products according to customers' requirments such as installation dimension, input and output voltage,power...etc.)
