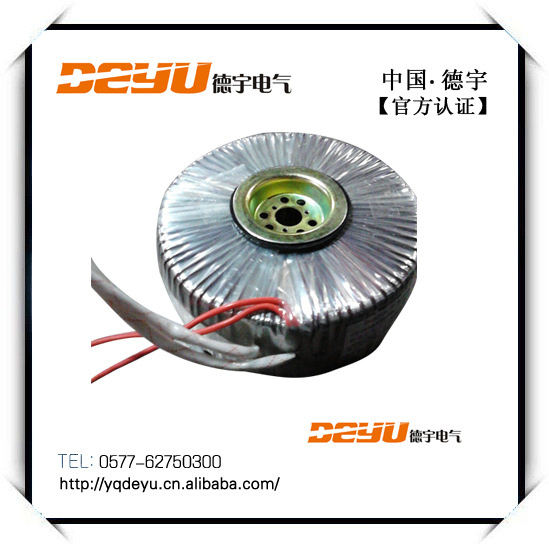

Toroidal Transformer for Various Application

Name: Toroidal Transformer for Various Application
Brand: all-electronics-online.com
SKU: 829070095
Availability: InStock
Rating: 4.8 (78 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BOD
Packaging:	Standard Export Carton and Colour Box Package
Delivery Detail:	15days After Received Advance Payment
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer

Product Description

Specifications
Standard toroidal transformers ranged from 50VA - 1000VA. Customized design welcome.
Standard Toroidal Transformer
Standard toroidal transformers are widely used in automation system, instruments, medical equipment, traffic
Control system, audio devices, safety devices and new energy inverting system, it is featured with advantage
Such as less weight, hight efficiency, low temperature rise, high reliability than conventional transformer.

Inbest toroidal transformers are designed and manufactured according to EN 61558-1, EN61558-2-4,
EN61558-2-6, UL60601, U506. Insulation class: Ta 40° C / Class B 130° C, Class F 155° C, Class H 180° C,
With full protection including static shield, magnetic shield, thermal switch, NTC and soft starter circuit.

Brief Specification
ü Power Range: 50VA -1000VA
ü Input: On request
ü Output: On request
ü Insulation Class: UL class B. F. H. N. (Optional)
ü Isolation: 4KV (Hi-pot)
ü Customized design are always welcome

Power (VA)	Efficiency(%)	Off load current(mA)	Total Weight (kg)	Copper Weight (kg)	Dimension D*H
50VA	88%	8mA	0.73kg	0.30kg	79mm*37mm
80VA	90%	10mA	1.01kg	0.40kg	90mm*38mm
100VA	91%	10mA	1.25kg	0.45kg	92mm*43mm
120VA	92%	11mA	1.35kg	0.50kg	95mm*45mm
150VA	93%	12mA	1.64kg	0.64kg	96mm*50mm
200VA	94%	15mA	2.04kg	0.71kg	115mm*50mm
225VA	94%	16mA	2.23kg	0.86kg	116mm*50mm
250VA	94%	17mA	2.57kg	0.92kg	117mm*60mm
300VA	94%	18mA	2.97kg	1.24kg	125mm*62mm
400VA	95%	20mA	3.73kg	1.66kg	132mm*61mm
500VA	96%	25mA	4.23kg	1.90kg	142mm*71mm
600VA	96%	28mA	4.84kg	2.00kg	140mm*80mm
700VA	96%	30mA	5.35kg	2.24kg	145mm*86mm
800VA	97%	32mA	6.20kg	2.60kg	173mm*70mm
900VA	97%	40mA	7.00kg	3.00kg	173mm*78mm
1000VA	97%	50mA	7.40kg	3.50kg	175mm*78mm

Zhejiang Zhongneng Electrical Co., Ltd., located in Zhejiang Province, is the key medium/high voltage electric productive enterprise of FATO Mechanical and Electrical Equipment Group Co., Ltd.And a provincial advanced enterprise, mainly producing 220kV and below high voltage electro ceramic products, especially lightning arrester series, composite insulator series and drop-out fuse cutout series, and low-voltage surge protective device series.Our products have complete testing devices and strict quality and production management systems.Our products are known for the characteristics of solid power, advanced science and technology, considering service and solid quality.Moreover, for some core products, we have the independent intellectual property right.

Our corporation has the independent corporate capacity.Our progenitor is the division store of Suzhou Surge Arrester Co., Ltd.Which is founded in 1989, and after joined into FATO Mechanical and Electrical Equipment Group Co., Ltd.In 2003, we changed the name to Zhejiang Zhongneng Electrical Co., Ltd.

Zhejiang Zhongneng Electrical Co., Ltd.Is the professional over-voltage protectors manufacturing enterprise, and a member unit of China Electric Industry Association.We passed the certification of ISO9001 quality system and confirmed to standards such as IEC 60099-4, 61643-1, 291, 282 issued by international electric and industrial committee.Moreover, we have a long-term technical cooperation with many technical and research institutes and core enterprises in this industry line, and the qualities of our products can stand long-time decimation.

Following the technical and economical developing step, and the globalization process, in the merger process of global advantage resources, we constantly expect the cooperation coming from global partner.We are looking forward to cooperating with you!
