| Prod Model: |
JL-37B555 |
| Micro DC Motor: |
Motor |
| Gearbox: |
37mm |
| Torque: |
High Torque |
| Speed: |
Constant Speed |
| Voltage: |
12V/24V Gear Motor |
| Gears: |
Metal Gear |
| Brush: |
Metal /Carbon Brush |
| Power: |
DC |
| Material: |
RoHS Material |
| Shaft: |
Stainless Steel |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Certification: |
Ce RoHS |
| Brand: |
Kingly |
Product Description

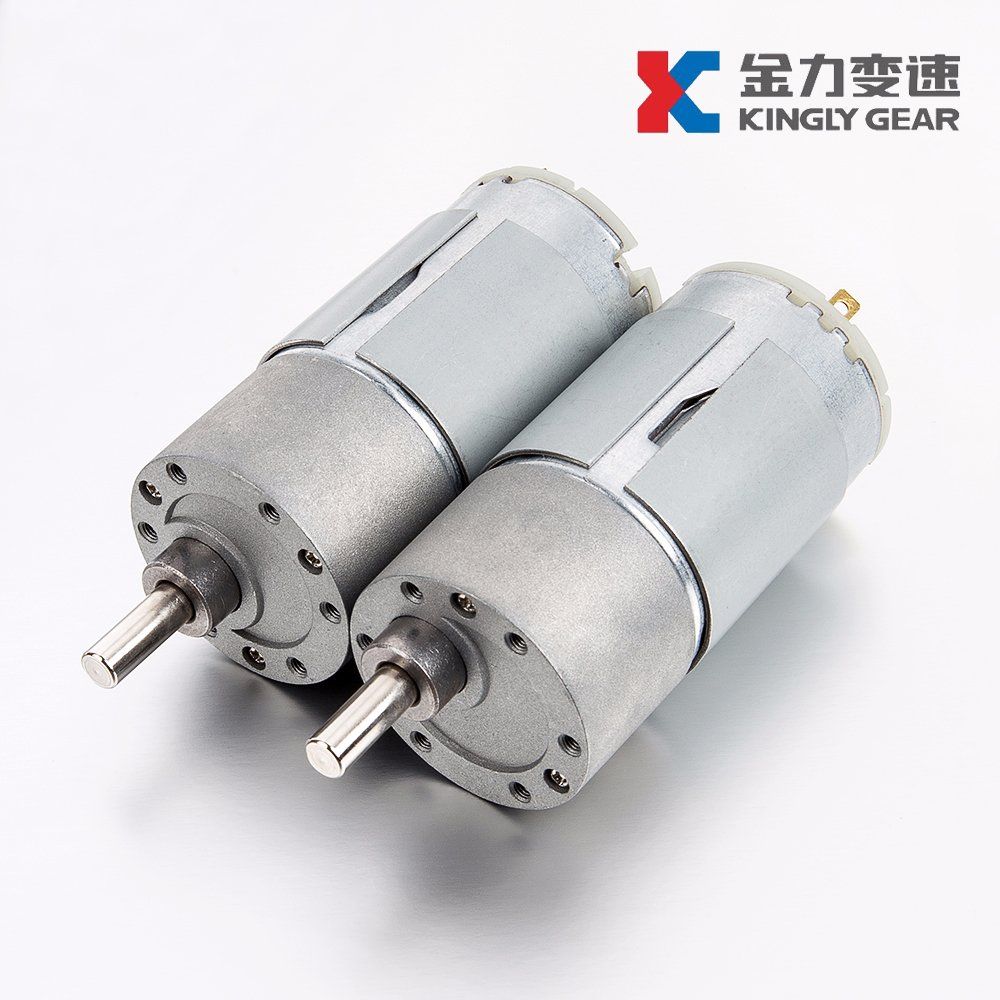

Micro DC Motor 37GB-540
Power:0.5- 50W
Voltage:6v to 24V
Ruduction Ratio:1:10 to 1:810
Motor dimensions:35.8mmx50mm 35.8mmx57mm
Length of Gear:21.5mm to 29mm
Gearbox diameter:37mm
High Torque ,Low Noise
Speed :1.5rpm-3000rpm
Metal gears ,Plastic ,Copper,Steel.....
Typical Aplications:
Paper feeder, Accessory automobile
Electronic lock optic equipment
Monitor, Precision instrnment
Robot, Financial apparatus
Ad equipment, Audio equipment
Healthful equipment
Also We can design the motor according to your Voltage, Speed, Shaft length and so on.
| Model | Voltage | No Load | At Maximum Efficiency | Stall |
| V | Speed | Current | Speed | Current | Torque | Output | Torque | Current |
| r/min | A | r/min | A | mN.m | kg.cm | W | mN.m | kg.cm | A |
| JL-37B520-50 | 12 | 110 | 0.04 | 94 | 0.18 | 147 | 1.5 | 1.45 | 1009 | 10.3 | 1.6 |
| JL-37B528-90 | 12 | 77 | 0.07 | 62 | 0.32 | 314 | 3.2 | 2.04 | 1607 | 16.4 | 1.7 |
| JL-37B545-120 | 24 | 46 | 0.15 | 38 | 0.55 | 1176 | 12.0 | 4.67 | 5880 | 60.0 | 2.3 |
| JL-37B555-20 | 12 | 165 | 0.19 | 144 | 1.06 | 480 | 4.9 | 7.24 | 3626 | 37.0 | 7.0 |
| | | | | | | | | | | | |
| Match Motor | Length of MotorL2 | | | | | | | | | |
| RF-520 | 22.6mm | | | | | | | | | |
| RF-528 | 30.1mm | | | | | | | | | |
| RK-545 | 50mm | | | | | | | | | |
| RK-555 | 57mm | | | | | | | | | |
| | | | | | | | | | | | |
| Length of GearL1 | Reduction Ratio | | | | | | | |
| 17.8mm | 10 | | | | | | | | | | |
| 21.5mm | 20 | 30 | 40 | | | | | | | | |
| 24mm | 50 | 60 | 70 | 90 | | | | | | | |
| 26.5mm | 120 | 150 | 210 | 270 | | | | | | | |
| 29mm | 450 | 540 | 630 | 810 | | | | | | | |
