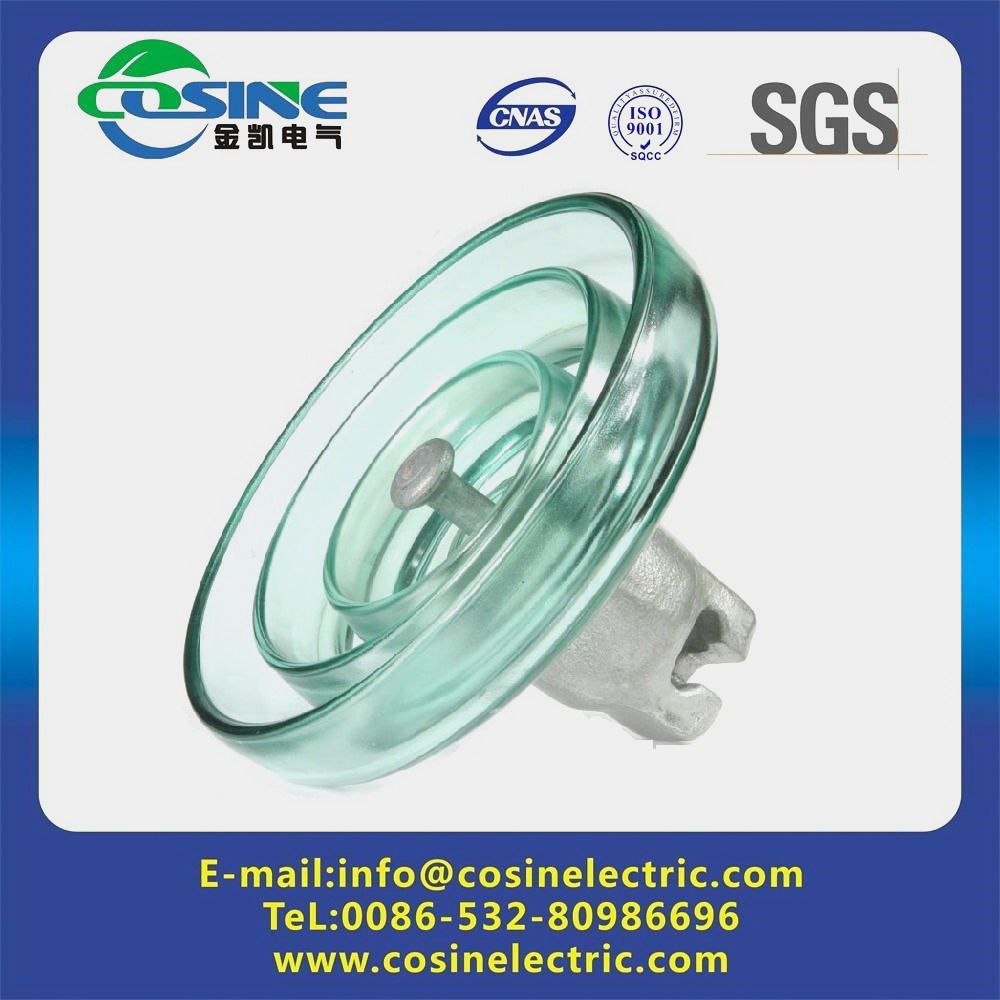

Toughed Glass Insulator U120bp

Name: Toughed Glass Insulator U120bp
Brand: all-electronics-online.com
SKU: 694909502
Availability: InStock
Rating: 4.8 (65 reviews)

Price:	US $ 4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	U120BP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sml:	160kn
Application:	High-voltage
Structure:	Suspension Insulator
Type:	A Type Insulator
Material:	Toughened Glass
Color:	Light Green
Brand:	Cosine

Product Description

1. Item Name: Anti Fog Toughed Glass Insulator U100BP

2. Specified Failing Load of Anti Fog Toughed Glass Insulator U100BP: 100KN

3. Not only we could produce 100KN anti fog toughed glass insulator, but also we could produce 70KN,

120KN, 160KN, 210KN anti fog toughed glass insulator.

4. Please contact me freely if you have interest on any anti fog toughed glass insulator. We will make best price for you.

	U100BP/146	U100BP /146	U100BP /146
Diameter D	260mm	280mm	320mm
Spacing H	146mm	146mm	146mm
Creepage L	400mm	450mm	550mm
Socket soupling	16W	16W	16W
Specified mechanical load	100KN	100KN	100KN
Power Frequency withstand voltage for Unit	160KV/45KV	160KV/50KV	200KV/55KV
Lightning impulse withstand voltage for Unit	440KV/110KV	440KV/125KV	520KV/140KV
Power Frequency Puncture voltage	130KV	130KV	130KV
Radio influence voltage	50µV	50µV	50µV
Electrica Iron visual test	18KV/22KV	18KV/22KV
Impulse puncture voltage	2.8p.u	2.8p.u	2.8p.u
Power Frequency electric arc voltage	0.12s/20kA	0.12s/20kA	0.12s/20kA

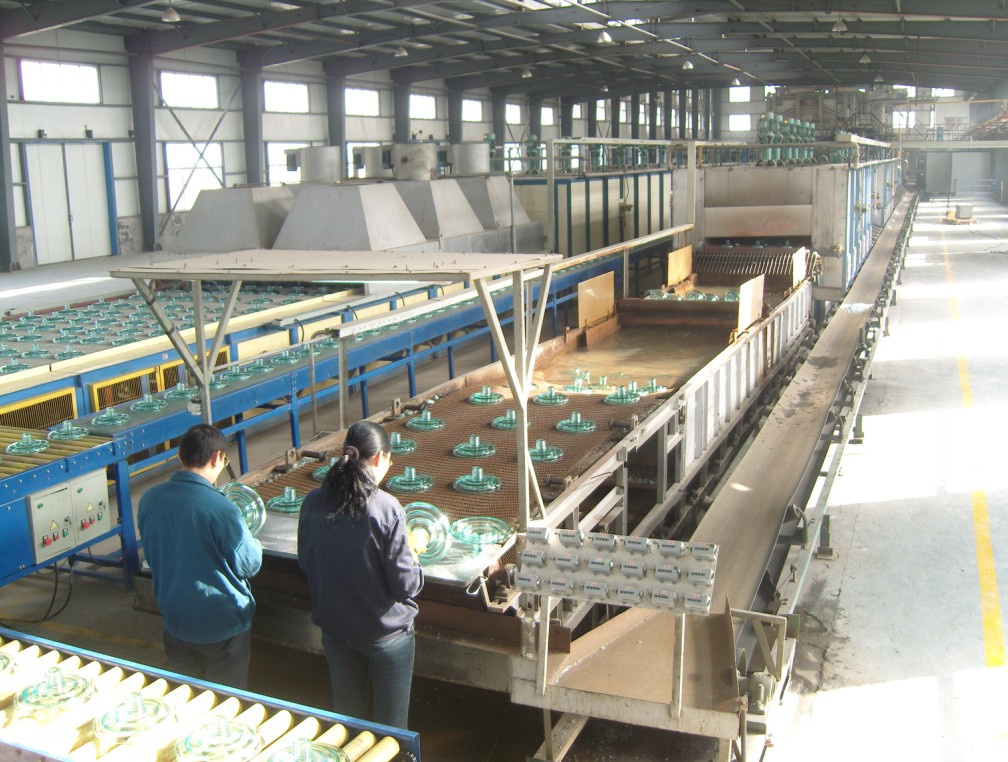

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

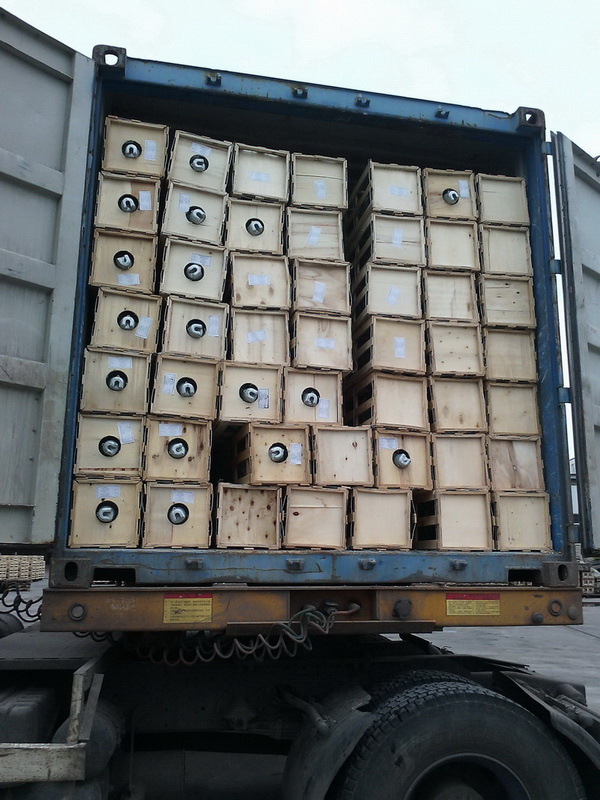

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
