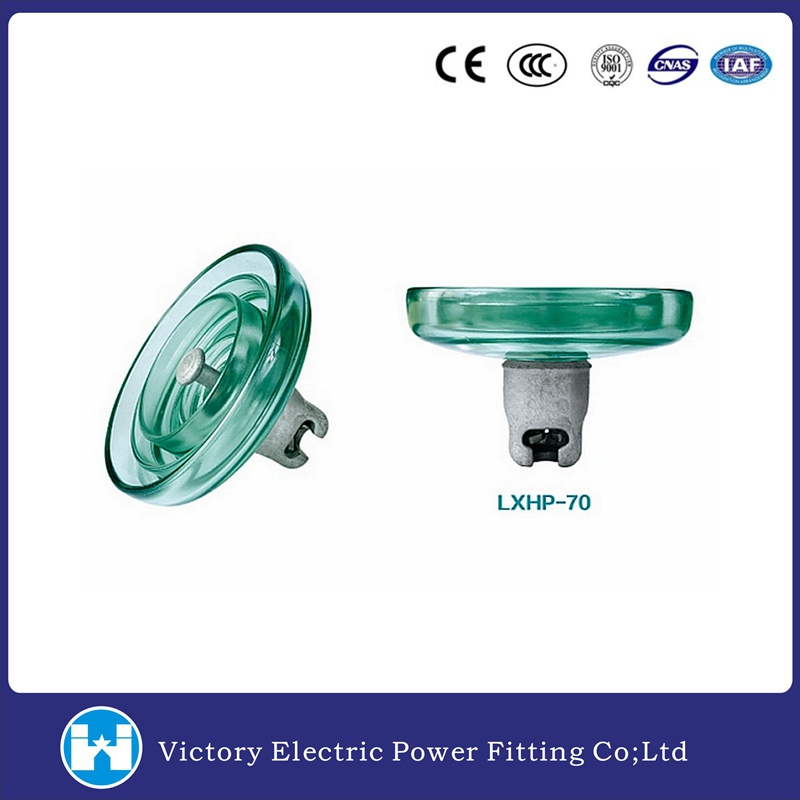

Toughened Glass Insulator High Voltage Glass Disc Insulator

Prod Model:	LXHP-70
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulator:	Glass Insulator
Size:	as You Required
OEM:	Accept
Brand Name:	Vic
Application:	Low-voltage
Structure:	Strain Insulator
Type:	B Type Insulator
Material:	Glass
Size Of Bearing Capacity:	576kn
Color:	Nature
Brand:	Vic

Product Description

* In comply with ANSI, IEC, BS, AS etc standard;
* Glass material
* Advise model No or supply drawing when enquire;
* High quality with cheap price

Model	Item number	mechanical break load Kn ≥	Break load Kn ≥	1h motor load test kN	H	D	Lc	50% lightning impulse withstand voltage ( peak ) kv ,≥	P.F ( virtual value ) kv ,≥		kg
					mm				Wet withstand	break
LXHY4-70 LXHY-70	132605 132608	70 70	565 565	52.5 52.5	146 160	255 255	400 400	120 120	45 45	130 130	4.80 4.80
LXHY5-70	132603	70	565	52.5	146	280	450	130	45	130	5.30
LXHY4-100	133602	100	678	75.0	146	280	450	130	45	130	5.40
LXHY4-120	134602	120	678	90.0	146	280	450	130	45	130	5.50
LXHY3-160 LXHY4-160	135605 135606	160 160	1017 1017	120.0 120.0	155 170	280 280	450 450	130 130	50 50	130 130	7.00 7.00
LXHY5-160 LXHY6-160	135603 135607	160 160	1017 1017	120.0 120.0	170 155	320 320	545 545	130 130	55 55	130 130	8.80 8.90
LXHY3-210	136201	210	1017	157.5	170	320	545	130	55	130	9.23
LXHY-300	137202	300	1017	225.0	195	340	545	140	55	130	12.20
LXHY3-300		300	1017	225.0	195	380	635	155	60	130	14.30
