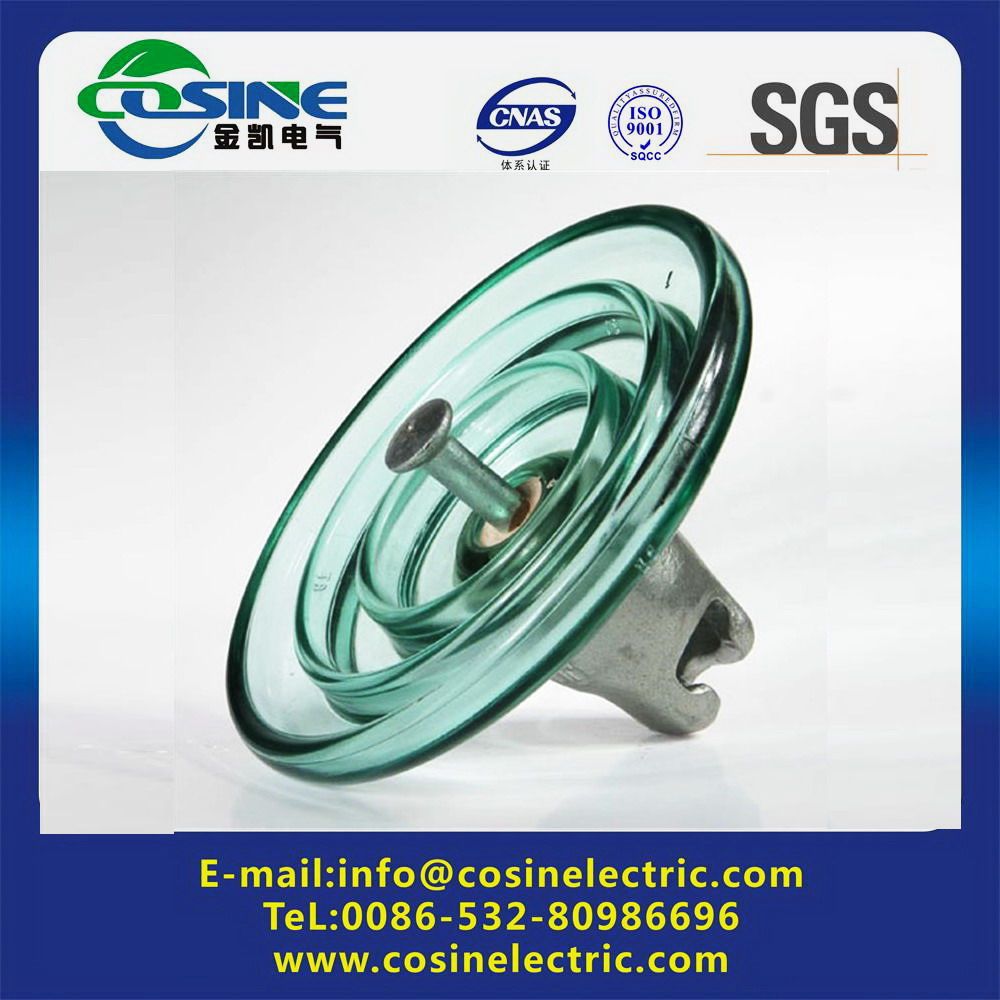

Toughened Glass Insulators U70BS U160BS

Name: Toughened Glass Insulators U70BS U160BS
Brand: all-electronics-online.com
SKU: 694339952
Availability: InStock
Rating: 4.4 (118 reviews)

Price:	US $ 5.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	U70BS U160BS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	70kn 160kn
Application:	High-voltage
Structure:	Suspension Insulator
Material:	Glass

Product Description

1. Toughed Glass insulators is QINGDAO COSINE ELECTRICAL EQUIPMENT CO.,LTD normal products.

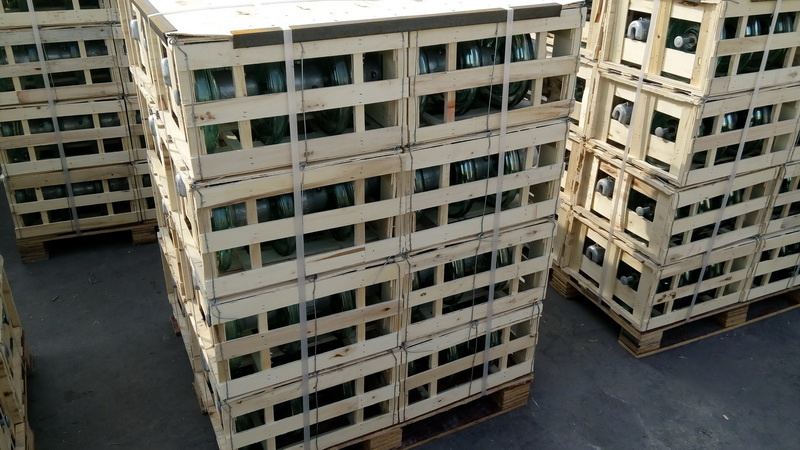

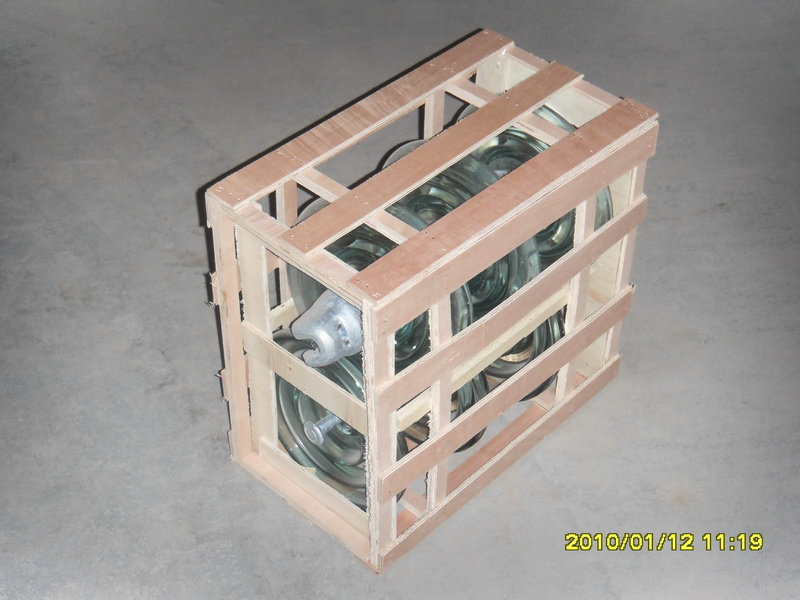

2. Package of U70BS and U160BS toughened glass insulator: Export Package

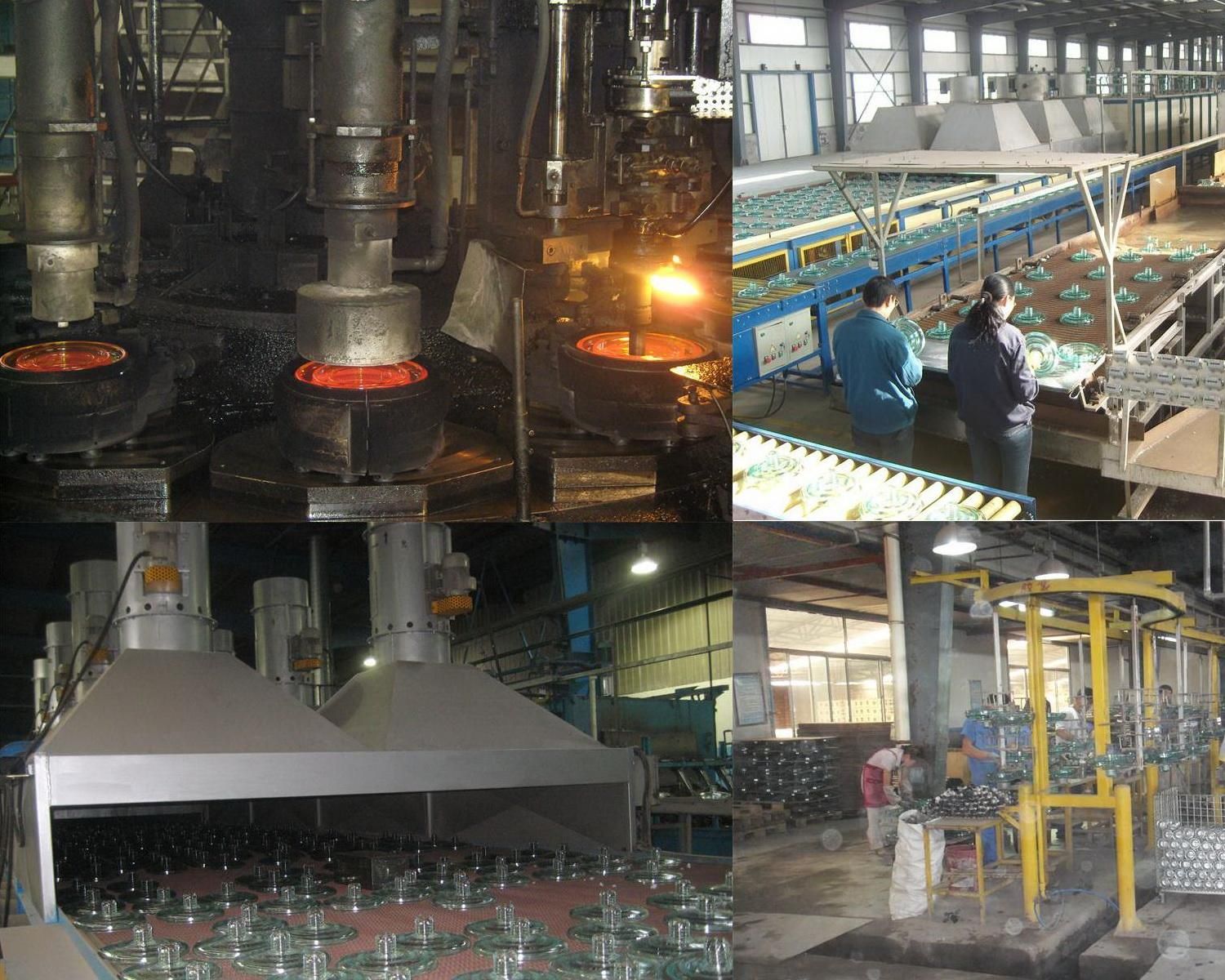

Following is pictures of manufacturing, testing glass insulators. Please contact me freely if you have any interest or needs.

	U70 146/320	U160 146/400
( mm ) Diameter D	255	280
( mm ) Spacing H	146	146
( mm ) Creepage L	320	400
( mm ) Socket soupling
( kN ) Specified mechanical load	70KN	160KN
( kN ) routine test load	35KN	80KN
( kV ) Wet power frequency withstand voltage	40	45
( kV ) Dry lightning impulse withstand voltage	100	110
( P.U ) Impulse puncture voltage	2.8	2.8
( kV ) Power frequency puncture voltage	130	130
( µV ) Radio influence voltage	50	50
( kV ) Corona visual test	18/22	18/22
Power frequency electric arc voltage	0.12s/20kA	0.12s/20kA
Applied Standard	IEC120	IEC120

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
