Tower Mounted 6kVA 1-in/1-out High Frequency Online UPS

Name: Tower Mounted 6kVA 1-in/1-out High Frequency Online UPS
Brand: all-electronics-online.com
SKU: 718117612
Availability: InStock
Rating: 4.5 (56 reviews)

Price:	US $ 100-600/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	D-II 6K
Design:	Online UPS
Wave Form:	True Sine Wave
Input Voltage:	115-300VAC 1-Phase
Output Voltage:	208/220/330/240VAC
Battery Voltage:	192VDC
Battery Charge Time:	5 Hours to 90%
Capacity:	6kVA/5400W
Outlook:	Tower
Phase:	Single Phase
Type:	On-line
Protection:	Overload
Brand:	Jetpower

Product Description

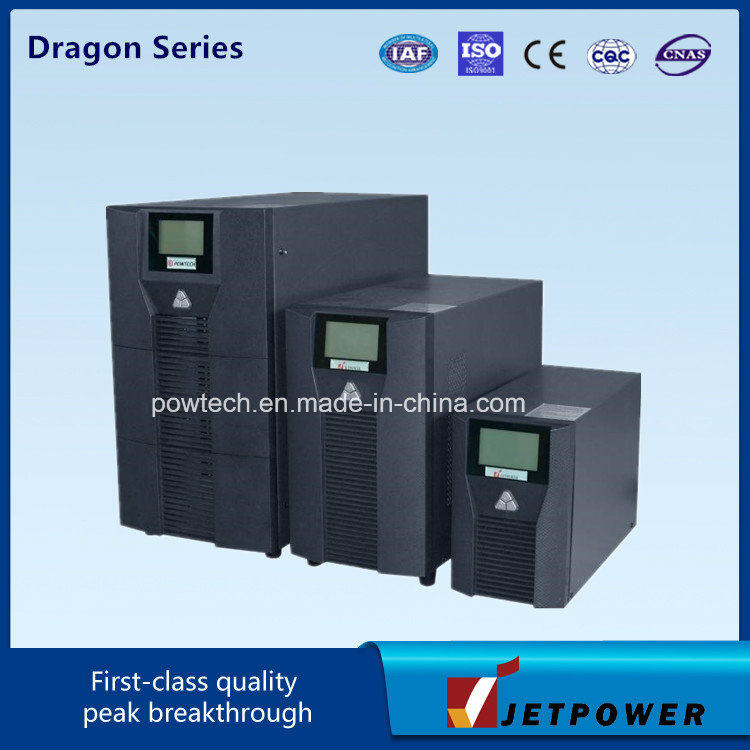

Dragon-II Series 1-in/1-out High Frequency Power Supply Online UPS (1-10KVA)

Introduction:
Dragon-I series use advanced true double conversion on-line topology ideal for resolving all issues on power supply. The expanded input range increases battery life by eliminating unnecessary discharge & recharge. Runtime can also be expanded with scalable external battery pack providing worry free for long blackout.
Base on the Dragon-I, Dragon-II ups are developed with new functions like: EPO, higher output power factor (up to 0.8) and etc.
Product Snapshot:
Name: Dragon Series UPS
Capacity: 6KVA/5400W (1-in/1-out)
Model: D-II 6KS with 20pcs 12V7AH battery;
D-II 6KLwith 4.2A charger board inside
Keys:Online, high frequency, single phase output, true sine wave
Main features
1) True online double conversion technology with microprocessor & DSP control
2) Wide input voltage range
3) Advanced PFC technology with input power factor approaching to 1
4) Fully protection: Lightning and surge protection, EMI/RFI filter, over voltage, short circuit, overload and etc
5) Enable to extend runtime with scalable external battery pack
6) Maintenance bypass switch for 6K~20K
7) RS-232 /USB communication port
8) Smart Snmp card slot available
9) N+X parallel redundancy and capacity expansion for 6K~10K
Dragon-II Particular:
1) Emergency Power Off (EPO):
2) Output power factor up to 0.9
3) Large blue LCD Display
4) Battery voltage (192V or 240V) can be selected on User demands.

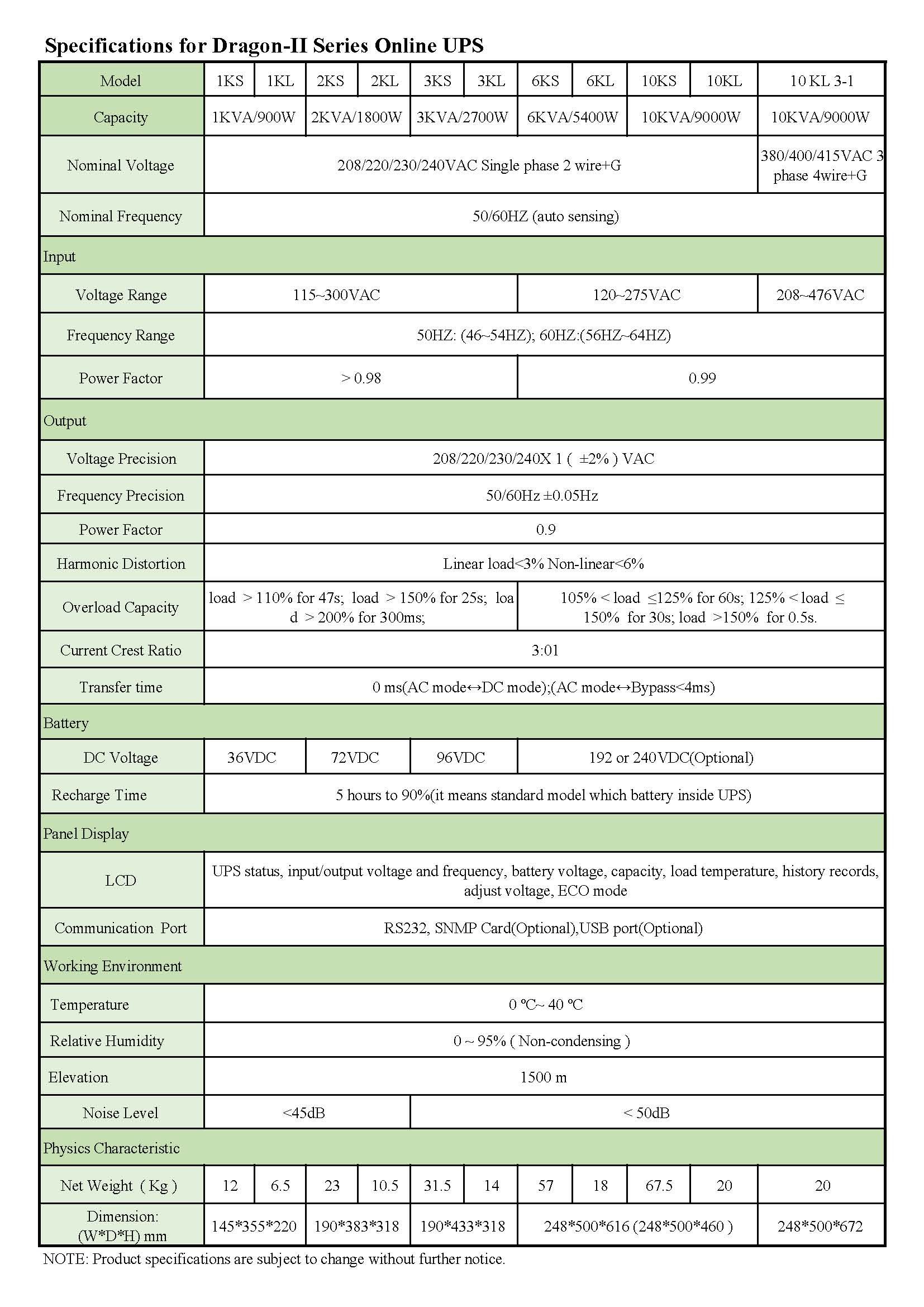

Specifications:

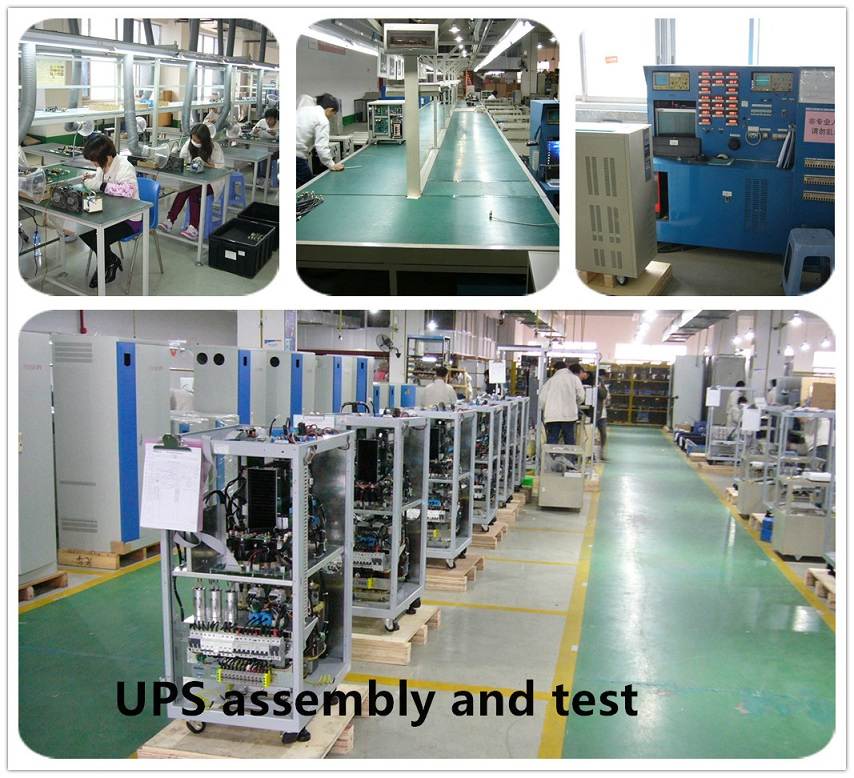

UPS Production:

Certificates:

Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.

The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.

As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.

Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.

Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
