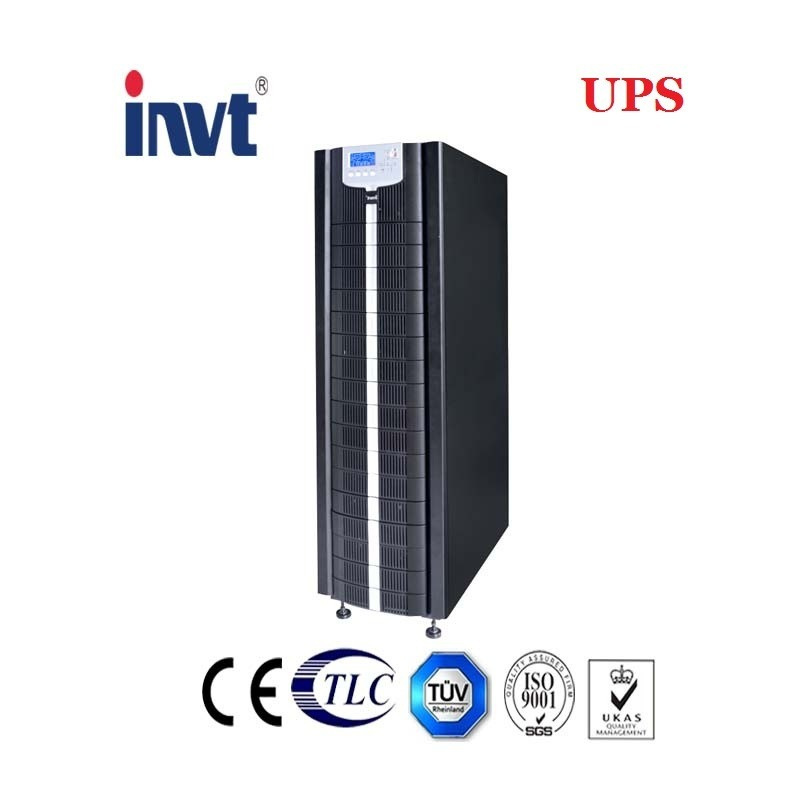

Tower Online 30kVA UPS with in-Built Transformer (HT33030X-TX)

Name: Tower Online 30kVA UPS with in-Built Transformer (HT33030X-TX)
Brand: all-electronics-online.com
SKU: 832331595
Availability: InStock
Rating: 4.4 (121 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	HT33030X-TX
Input Power Factor:	1
Input Thdi:	0-4%
Output Voltage:	380/400/415VAC (Line-Line)
Output Voltage Regulation:	1.5%
Output Power Factor:	0.9
Output Frequency Range:	50/60Hz
Battery Voltage:	240VDC
Certification:	Ce ISO9001/ISO14001/ISO18001
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Invt

Product Description

HT33-TX series in-built transformer three phase UPS applies advanced technology that increases performance and reliability: two high speed DSPs with completed digital control fully ensure high quality of power supply, high input power factor and low input current distortion. With in-built transformer, the HT33-TX is providing more safety to critical load.

Application
IDC(Internet Data center),ISP,IT Room, Service Center
Precision instruments,Intelligent equipments

Features

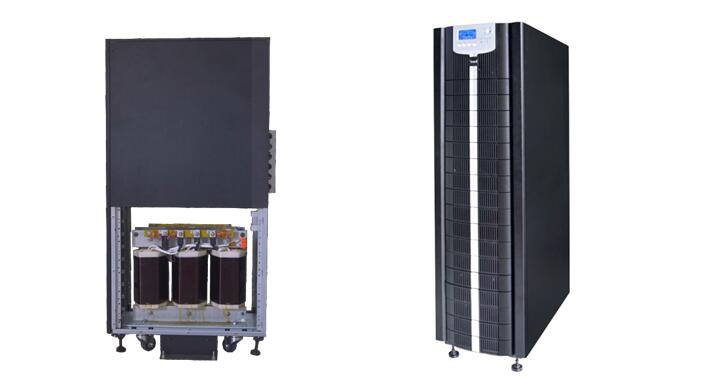

In-built galvanic isolation transformer
High input PF>0.99;Input current THDi<4%
Muti-protection, over-temperature protection with 8 sensors, over-load, battery under voltage, fan failures, short-circuit
Four circuit breakers, providing full protection when fault happens
Battery cold start
Battery management: smart charging control, auto maintenance, greatly extend the battery life
Parallel up to 8 units
Friendly operation interface, high-resolution LCD screen

Specification

MODEL	HT33010X-TX	HT33020X-TX	HT33030X-TX	HT33040X-TX
Capacity	10kVA	20kVA	30kVA	40kVA
INPUT
Phase	3Ph+N+PE,380V/400V/415V(line-line)
Voltage range	304-478Vac (line-line),full load; 228V-304Vac (line-line),load decrease linearly according to the min phase voltage
Frequency range	40-70Hz
THDi	<4%	<3%
Power factor	>0.99
OUTPUT
Voltage	380/400/415VAC (line-line)
Voltage regulation	1.5%
THDu	<1% (linear load), <5.5% (non-linear load)	<1%(linear load),<5%(non-linear load)
Power factor	0.9
Frequency range	50/60Hz
Frequency precision	±0.01%
Overload capability	110% for 60 min; 125% for 10 min;150% for 1 min;>150% for 200ms
BATTERY
Voltage	±240VDC
Charge power	20%*System Power
Voltage precision	1%
SYSTEM
System efficiency	Normal mode: 92%
	ECO mode: 95%
	Battery mode: 92%
Display	LCD + LED + Keyboard
IP class Interface	IP20
	Standard: RS232, RS485,Dual input kit; Option: SNMP, Dry contact, Parallel kit, Battery cold start
Operation temperature	0-40ºC
Relative humidity	0-95%(non-condensing)
Noise	<55dB (1 meter away)
PHYSICAL
Weight(kg)	200	220	240	300
Dimension (WDH)(mm)	3507381335			5008401400

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
