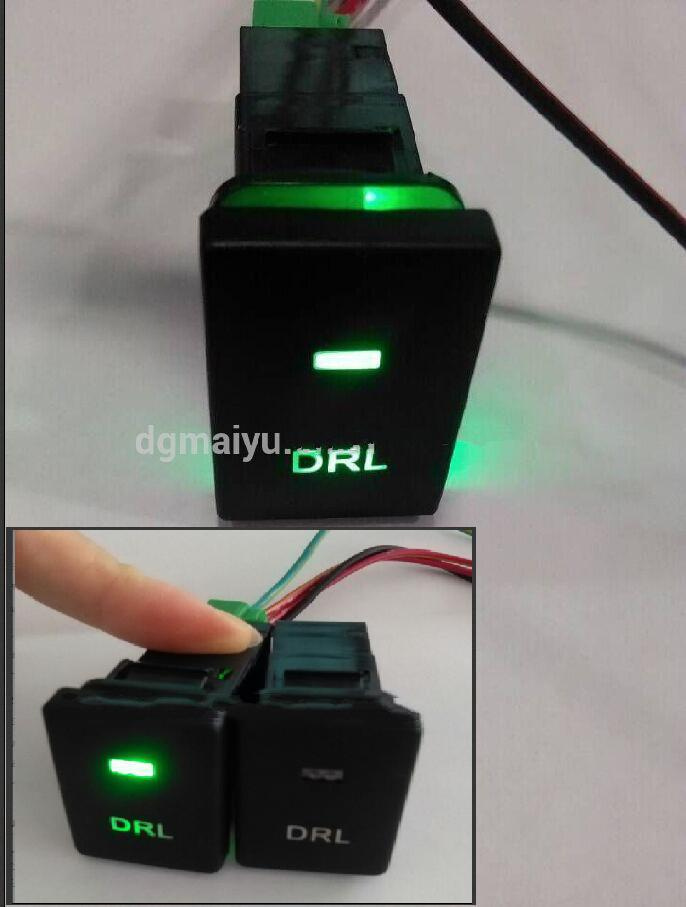

Toyota Button Switch/ Dual LED Color Push Button Switch

Toyota Button Switch/ Dual LED Color Push Button Switch
Price: US $ 3-3.5/Piece
Trade Terms: FOB,CPT,FCA
Min Order: 100/Piece
Pay Type: T/T,D/P,Paypal,Money Gram,Western Union
Prod Model: 12V push btton switch-37
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name: Maiyu
Max. Current: 20A
Rating Ampere: 10A
Protection Level: IP66
Approval: RoHS, CE
LED Color: Optional
Panel Cutout Dimesion: 36.8X21mm
Ratting Voltage: 12V
Function: on-off,on-off-on
Type: Normal Open
Usage: Limit Button
Kind: Single-pole on-off Switch
Brand: Maiyu

Product Description


Production Description:

12V/24V Momentary Car/Marine Dual Led light Laser etched Rocker Switches with 3,5Pin
1.Single pole single throw ON-OFF,ON-OFF-ON,Momentary Switch
2.Compressor Legend
3. High quality and competitive price
This high quality 12 volt Rocker switch it is a single throw ON - OFF switch designed to operate your 12 volt driving lights. It has a face surface size of 0.90'' x 1.92'' and uses a standard din size mounting hole. Cutout Dimensions are 0.83'' x 1.45''. This is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.


Single Pole Single Throw ON - OFF,ON-OFF-ON switch
Black hard surface rocker.
Laser etched ROOF LIGHTSLegend
Single upper blue L.E.D light.
Single lower blue L.E.D light.
Upper light is ON when the switch is pressed UP.
Lower light can be wired to separate dash light circuit.
Same size as the ARB switches.
Rated 20A 12V.
This switch uses the same light configuration as the ARB switches.
No rear barriers between terminals.
Wiring diagram supplied with switch.
Switch cut out size 0.83'' x 1.45''.
Panel thickness between 1/16'' and 1/4''
All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
The switch is rated at 20amp's however in ALL case we recommend that you wire the accessory through a fused relay.


Note: L/T is about 2 weeks
