Toyota Push Button Switch Dual LED Lights Button Switch 12V-24V

Prod Model:	button switch-448
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Maiyu
Materials:	Plastic and Metal
Approvals:	CE RoHS
Colors:	Optional
Pin:	4-6pins
Ratting Voltage:	12V 3A
Line Length:	30cm
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch
Brand:	Maiyu

Product Description

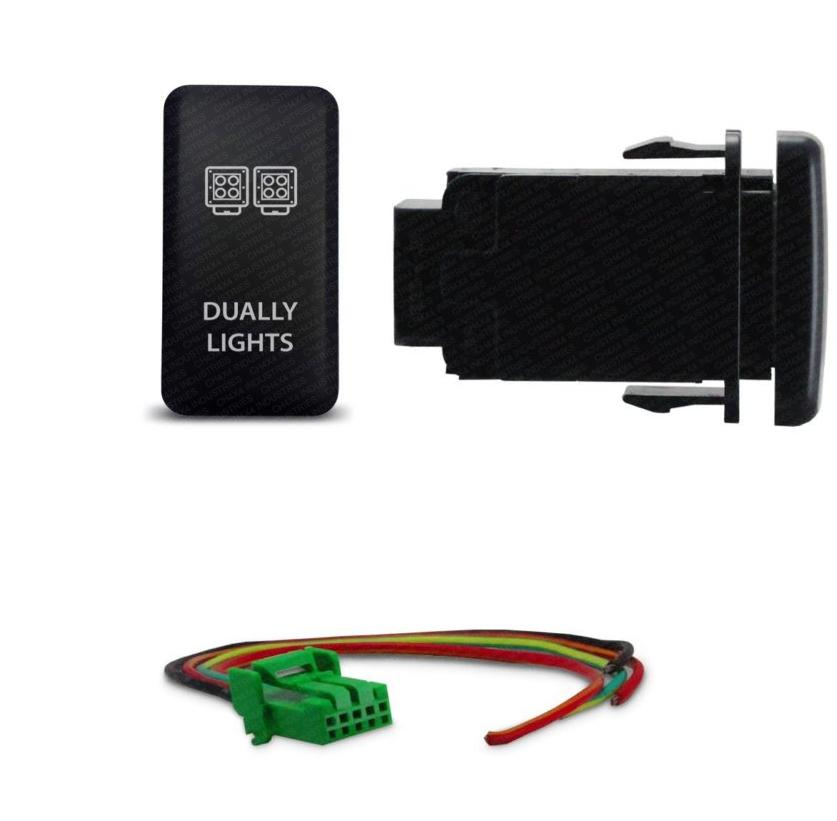

CH4x4 Toyota Push Switch Dually Lights Symbol - White LED


CH4x4 Industries Introduces our New High Quality 12 Volt Toyota Push Switch. This switch allows you to operate any 12 volt accessories, this  fits on all late model Toyotas SUV's and some other model cars, with short circuit protection, the CH4x4 Industries New High Quality 12 volt Push Switch will give you a clean and original style look, they are install in the existing holes that come with the vehicle, and it has a face surface size of 1.54" x 0.83" (39 mm x 21 mm).

This switches are made out of heavy duty ABS plastic that will ensure years of service and come in a mate black surface color, the same color as the OEM Switches, All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life. The switch is an electronic switch rated at 3 Amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.


FEATURES:
? The product is manufactured to fit in the OEM space available in your car or truck, simple to install
? Single Pole Single Throw ON - OFF PUSH switch
? Black hard surface rocker.
? Laser etched Legend
? Single upper L.E.D light.
? Single lower L.E.D light.
? Upper light is ON when the switch is pressed IN.
? Lower light can be wired to separate dash light circuit.
? Rated at 3 Amp 12V.
? Wiring diagram supplied with switch


KIT CONTAINS:
? 1 On-Off Toyota Push Switch
? 1 Connector with cable for easy installation


FITS THESE VEHICLES:
? Toyota FJ Cruiser 2007-2014
? Toyota Fortuner 2005-2014
? Toyota Hilux 2005-2014
? Toyota Tacoma 2005-2011
? Toyota Tacoma 2012-2014 (Left Side ONLY)
? Toyota Highlander 2001-2007
? Toyota Tundra 2005-2006 (Center Console if equipped)
? Toyota 4Runner 2003-2009
? Toyota Prado 120 Series 2003-2009
? Toyota Land Cruiser 100 Series 1998-2007
? Toyota Land Cruiser 75, 76, 78 & 79 series
