TPE Overmoulding Ntc Rtd Temperature Sensor for Waterproof Application

Name: TPE Overmoulding Ntc Rtd Temperature Sensor for Waterproof Application
Brand: all-electronics-online.com
SKU: 725688702
Availability: InStock
Rating: 5 (94 reviews)

Price:	US $ 0.2/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TPE
Resistance:	Sensitive Resistor
Installation:	DIP Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole
Type:	Thermal Resistor
Function For Resistance:	Temperature Measuring
Application:	Household Electric Device

Product Description

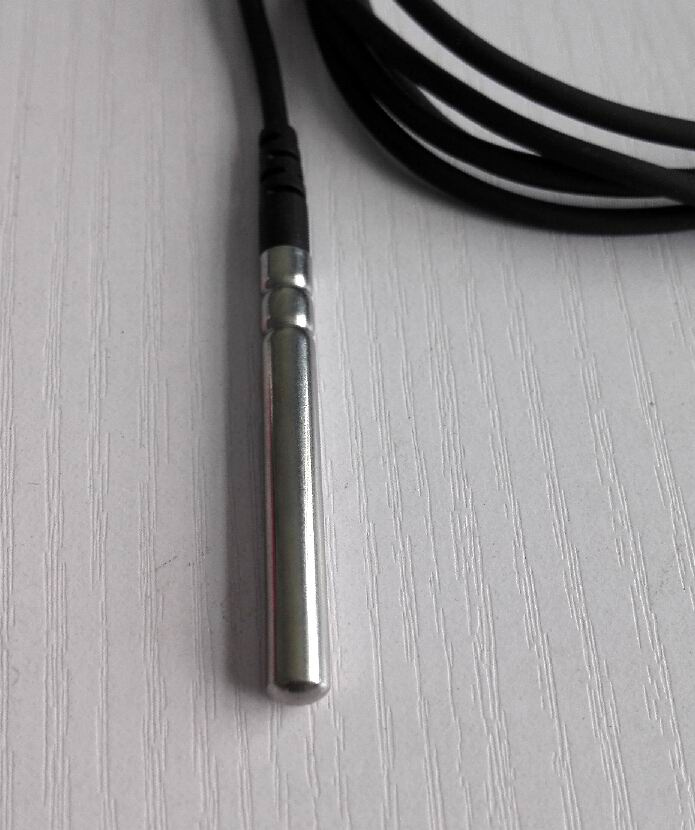

TPE overmoulding temperature sensor using NTC or RTD element PT100 / PT1000 as sensing element, With IP68 range waterproof grade , it is specifically suitable for humid working condition . Underfloor, Freezer , or frequent temperature humidity shift applications .

Technical Data:

Item	Temperature
Sensing Element	NTC Thermistor various R and B value on request
Temperature range	-30°C to +105°C
Response time	Water (0.4m/s) T0.63 ≤ 30s
Dissipation Factor	≥ 2.5mW/°C
Long-term stability	Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)
Dielectric Strength	1500VAC
Insulation Resistance	≥100MΩ 500VDC

Other options:

1.Standard value: R25ºC: 10K B25/85ºC: 3435 or B25/85ºC: 3977, different NTC R-T curve available
2.Different probe and wire size and color available. Standard round 5*20mm,6*50mm, and flat 6*5*15mm, different Size customization welcome .
3.Different wire gauge available with standard round jacket and flat TPE cable AWG24,AWG26 .
4.Different type of connector is available.

Typical Applications:
1. Toilet seat heating
2. Air Conditioner
3. Floor heating and Cogeneration systems

Features:
1. Moisture-proof
2. Fast response
3. Small time constant
