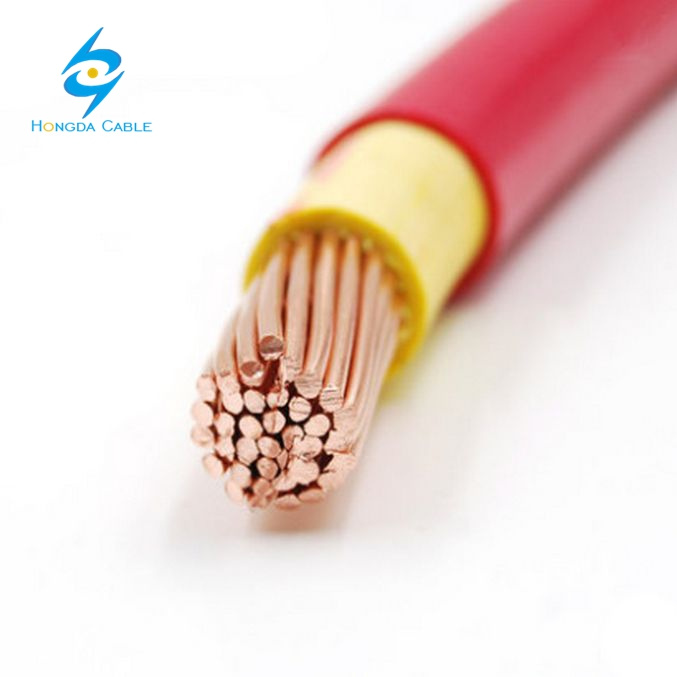

TPS Copper PVC Insulated Thermoplastic Sheathed Power Cable

Name: TPS Copper PVC Insulated Thermoplastic Sheathed Power Cable
Brand: all-electronics-online.com
SKU: 828556225
Availability: InStock
Rating: 5 (115 reviews)

Price:	US $ 0.2-46.8/Meter
Min Order:	200/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TPS copper Cable
Rated Voltage:	0.6/1kv
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	SGS
Model:	Cu/PVC/PVC
Brand:	Hongda

Product Description

TPS Copper Cable, 1/C, 0.6/1 kV, Cu/V-90/5V-90 PVC Power Cable (AS. NZS 5000.1)

Application:
For general wiring, unenclosed, in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage.
Suitable for glanding.

STANDARD
AS/NZS 5000.1

VOLTAGE
0.6/1 kV

INSULATION
PVC, V-90 Red, Black & Green/Yellow

SHEATH
PVC, 5V-90 White

NOMINAL OPERATING TEMP.
75 °C

CONDUCTOR		NOMINAL OVERALL DIAMETER	APPROX.MASS	MINIMUM INSTALLED BENDING RADIUS
mm2	(No./mm)	mm	Kg/Km	mm
25	7/2.14	11.8	370	75
35	19/1.53	13.1	480	80

Copper PVC Insulated Thermoplastic sheathed Power Cable

Size	Copper Wire Structure (No./mm)	Approx. Diameter (mm)	Approx. Weight (kg/km)
1×10	7/1.35	9.5	170.2
1×16	7/1.66	10.5	228.1
1×25	7/2.14	12.2	344.5
1×35	7/2.52	13.4	447.5
1×50	10/2.52	14.6	584.1
1×70	14/2.52	16.2	777.2
1×95	19/2.52	18.4	1049.8
1×120	24/2.52	19.8	1288.3
1×150	30/2.52	22.0	1596.6
1×185	37/2.52	24.2	1958.6
1×240	48/2.52	27.1	2512.4
1×300	61/2.52	29.8	3156.0
1×400	61/2.94	33.6	4055.8
1×500	60/3.29	37.0	5166.2
1×630	60/3.69	40.2	6397.3

Aluminum PVC Insulated Thermoplastic sheathed Power Cable

Size	Aluminum Wire Structure (No./mm)	Approx. Diameter (mm)	Approx. Weight (kg/km)
1×10	7/1.35	9.5	107.1
1×16	7/1.66	10.5	132.8
1×25	7/2.14	12.2	186.0
1×35	7/2.52	13.4	227.8
1×50	10/2.52	14.6	285.1
1×70	14/2.52	16.2	358.7
1×95	19/2.52	18.4	473.7
1×120	24/2.52	19.8	560.5
1×150	30/2.52	22.0	691.2
1×185	37/2.52	24.2	842.0
1×240	48/2.52	27.1	1063.8
1×300	61/2.52	29.8	1315.0
1×400	61/2.94	33.6	1666.5
1×500	60/3.29	37.0	2079.7
1×630	60/3.69	40.2	2514.7

PACKAGE:

For more information, don't hesitate to call us on +86-15838290725 or get in touch via WhatsApp or Wechat with this phone number.

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.

Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.

Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).

Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
