Tr208 Solid Core Station Porcelain Insulator with ANSI Approved

Name: Tr208 Solid Core Station Porcelain Insulator with ANSI Approved
Brand: all-electronics-online.com
SKU: 683458062
Availability: InStock
Rating: 4.3 (39 reviews)

Price:	US $ 5.5-6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	600/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TR208
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tr208 Insulator:	Post Insulator
Application:	High-voltage
Material:	Porcelain
Structure:	Post Insulator
Type:	ANSI Tr208 Post Insulator
Color:	Silver
Brand:	OEM

Product Description

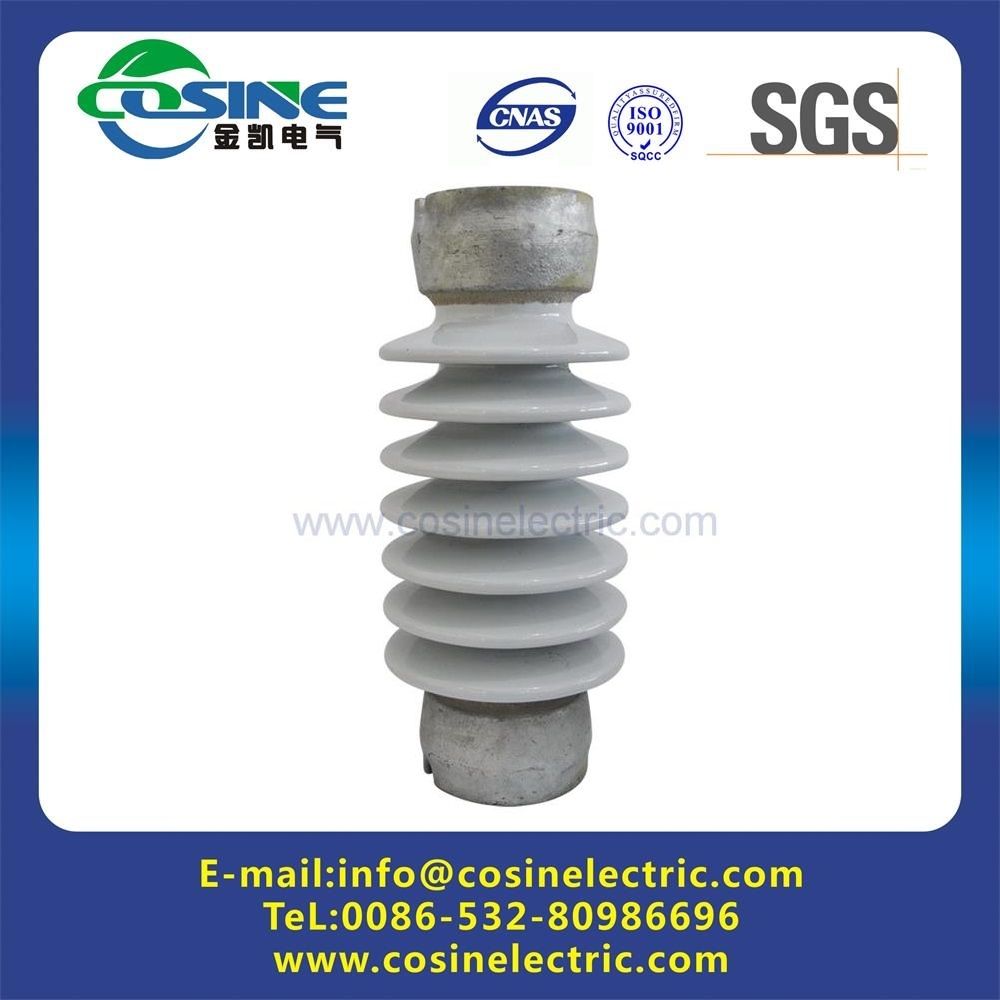

Name: Porcelain insulator
Type: Solid-Core Station porcelain insulator
Insulator Standard: Comply with the ANSI standard
Porcelain insulator colours: Brown or light gray
Package: Fumigated wooden-case

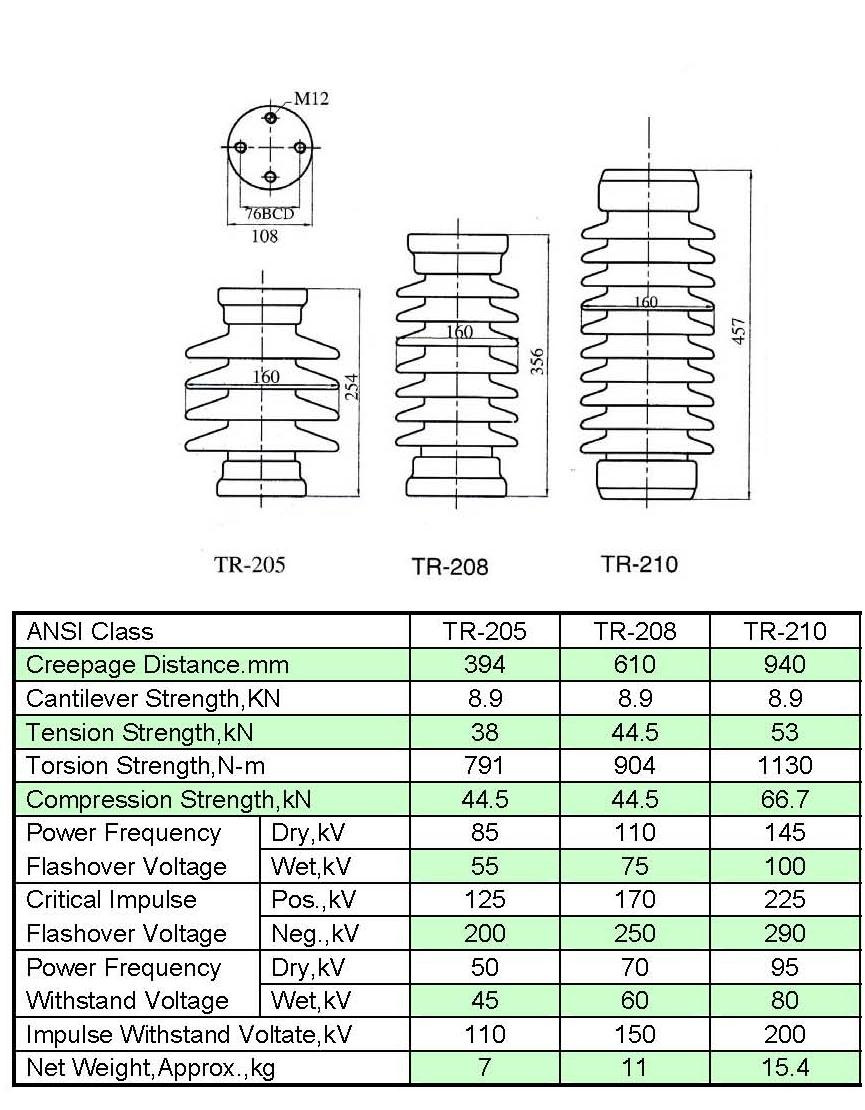

ANSI Class		TR-208
Creepage Distance.mm		610
Cantilever Strength,KN		8.9
Tension Strength,kN		44.5
Torsion Strength,N-m		904
Compression Strength,kN		44.5
Power Frequency	Dry,kV	110
Flashover Voltage	Wet,kV	75
Critical Impulse	Pos.,kV	170
Flashover Voltage	Neg.,kV	250
Power Frequency	Dry,kV	70
Withstand Voltage	Wet,kV	60
Impulse Withstand Voltate,kV		150
Net Weight,Approx.,kg		11
Standard Specification:ANSI C29.9

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
