| Prod Model: |
42HS48-1304 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1.8 |
| Screw Type: |
Tr8*2, Tr8*4, Tr8*8 |
| Frame Size: |
42mm X42mm |
| Current: |
1.5A |
| Resistance: |
2.8 |
| Inductance: |
4.8mh |
| Holding Torque: |
5.5kg.Cm |
| Motor Body Length: |
48mm |
| Lead Wires: |
4 |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Application: |
CNC |
| Operate Mode: |
Driver |
| Certification: |
CE |
| Brand: |
Jss |
Product Description
TR8*2(P2) lead screw stepper motor ,nema 17 type ,size 42mm
Description:
1. NEMA 17 linear stepper motor
2. Lead screw length can be customized.
3. Lead screw Tr8*2(P2), Tr8*4(P2), Tr8*8(P2)
4. Lead distance: 2mm, 4mm, 8mm
Technique Parameter :
| Shaft Radial Play | 0.06Max.(450 g-load) |
| Shaft Axial Play | 0.08Max.(450 g-load) |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5% (full step,no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80ºCMax.(rated current,2 phase on) |
| Ambient Temperature | -10ºC+50ºC |
| Insulation Resistance | 100MΩMin. 500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.06Max.(450 g-load) |
| Shaft Axial Play | 0.08Max.(450 g-load) |
Packing and delivery:
Packing: 20 pcs/carton or 30 pieces/carton
delivery time: 7-10 days
payment term: T/T, L/C, PAYPAL, Western union
Production Ability: 20000pcs/month
Application:

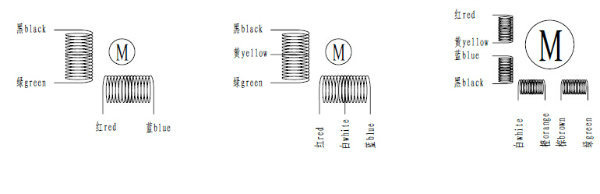

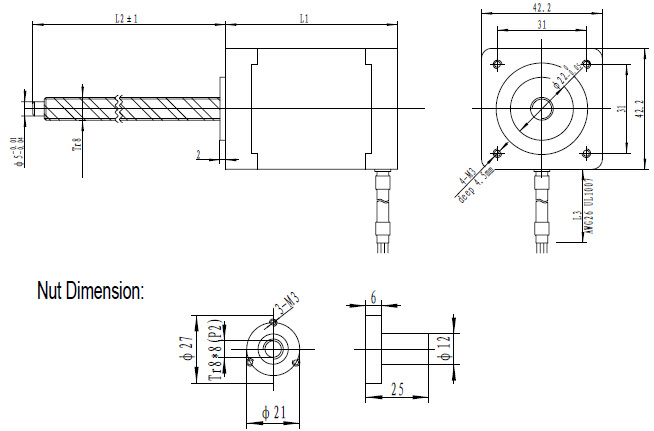

Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.Dimensions and wiring diagram:
Tips:motor shaft and brass nut can be customerized,have many kinds
We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on.nema17 stepper motor data:| Type | Phase No. | Step Angle | Current(A) | Resistance(ohm±10%) | Inductance(mH±20%) | Holding Torque(kg.cm) | Wires No. | Weight(kg) | Body Length(mm) |
| 42HS34-0334 | 2 | 1.8° | 0.33 | 36 | 46 | 2.4 | 4 | 0.24 | 34 |
| 42HS34-0404 | 2 | 1.8° | 0.4 | 30 | 35 | 3.2 | 4 | 0.24 | 34 |
| 42HS34-0804 | 2 | 1.8° | 0.8 | 6.5 | 4.6 | 2.3 | 4 | 0.24 | 34 |
| 42HS34-0954 | 2 | 1.8° | 0.95 | 4 | 3 | 1.8 | 4 | 0.24 | 34 |
| 42HS34-1004 | 2 | 1.8° | 1 | 2.6 | 3.2 | 1.8 | 4 | 0.24 | 34 |
| 42HS34-1334 | 2 | 1.8° | 1.33 | 2.1 | 3 | 2.2 | 4 | 0.24 | 34 |
| 42HS34-1504 | 2 | 1.8° | 1.5 | 1.9 | 2.5 | 2.5 | 4 | 0.24 | 34 |
| 42HS34-1704 | 2 | 1.8° | 1.7 | 1.3 | 1.8 | 2.5 | 4 | 0.24 | 34 |
| 42HS34-2004 | 2 | 1.8° | 2 | 0.7 | 1.1 | 2.5 | 4 | 0.24 | 34 |
| 42HS34-0504 | 2 | 1.8° | 0.5 | 10 | 20 | 3 | 4 | 0.24 | 35 |
| 42HS40-0404 | 2 | 1.8° | 0.4 | 30 | 60 | 4 | 4 | 0.27 | 40 |
| 42HS40-0804 | 2 | 1.8° | 1.2 | 6.5 | 12 | 4 | 4 | 0.27 | 40 |
| 42HS40-1204 | 2 | 1.8° | 1.2 | 5.5 | 11 | 5.2 | 4 | 0.27 | 40 |
| 42HS40-1304 | 2 | 1.8° | 1.3 | 2.6 | 4.2 | 3.8 | 4 | 0.27 | 40 |
| 42HS40-1504 | 2 | 1.8° | 1.5 | 2.5 | 5 | 4.5 | 4 | 0.27 | 40 |
| 42HS40-1704 | 2 | 1.8° | 1.7 | 2 | 3 | 4.2 | 4 | 0.27 | 40 |
| 42HS44-0804 | 2 | 1.8° | 0.8 | 14 | 33 | 5.2 | 4 | 0.24 | 44 |
| 42HS44-1004 | 2 | 1.8° | 1 | 4.5 | 6 | 3.8 | 4 | 0.24 | 44 |
| 42HS44-1504 | 2 | 1.8° | 1.5 | 2 | 3.6 | 4 | 4 | 0.24 | 44 |
| 42HS44-1704 | 2 | 1.8° | 1.7 | 1.8 | 3.8 | 4.2 | 4 | 0.24 | 44 |
| 42HS48-0354 | 2 | 1.8° | 0.35 | 56 | 94.6 | 5.5 | 4 | 0.34 | 48 |
| 42HS48-1004 | 2 | 1.8° | 1 | 4.6 | 4 | 3.5 | 4 | 0.34 | 48 |
| 42HS48-1204 | 2 | 1.8° | 1.2 | 3.2 | 4.2 | 4.2 | 4 | 0.34 | 48 |
| 42HS48-1304 | 2 | 1.8° | 1.3 | 3 | 5.5 | 5.2 | 4 | 0.34 | 48 |
| 42HS48-1504 | 2 | 1.8° | 1.5 | 2.8 | 4.8 | 5.5 | 4 | 0.34 | 48 |
| 42HS48-1684 | 2 | 1.8° | 1.68 | 1.8 | 2.8 | 4.8 | 4 | 0.34 | 48 |
| 42HS48-1804 | 2 | 1.8° | 1.8 | 1.5 | 2.6 | 5.2 | 4 | 0.34 | 48 |
| 42HS48-2504 | 2 | 1.8° | 2.5 | 1.2 | 1.8 | 5.5 | 4 | 0.34 | 48 |
| 42HS54-1504 | 2 | 1.8° | 1.5 | 3 | 6.5 | 6.8 | 4 | 0.35 | 54 |
| 42HS60-1004 | 2 | 1.8° | 1 | 24 | 65 | 6 | 4 | 0.5 | 60 |
| 42HS60-1504 | 2 | 1.8° | 1.5 | 2.5 | 6 | 7 | 4 | 0.5 | 60 |
|
