| Prod Model: |
42HS40-1704 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1.8 |
| Frame Size: |
42mm*42mm |
| Current: |
1.7A |
| Resistance: |
2.0ohm |
| Inductance: |
3.0mh |
| Holding Torque: |
4.2kg.Cm |
| Motor Body Length: |
40mm |
| Lead Wires: |
4 |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Application: |
Automatic Machine |
| Operate Mode: |
Driver |
| Certification: |
CE |
| Brand: |
Jss |
Product Description
Our stepper motors are widely used in stage lighting control, security surveillance, home appliance, video equipment, laserworkstation, carving machine, automotive, office automation, smart toy, digital controlled machinery and medical instrument.

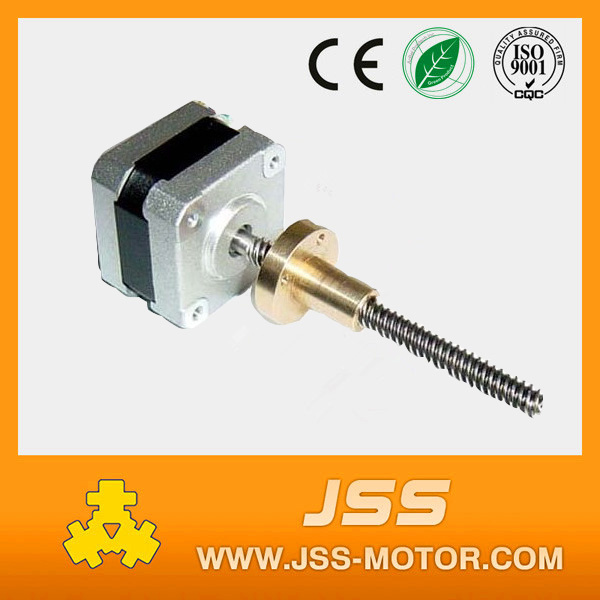

Tr8*8 acme threaded rod nema 17 stepper motor
Product Description:
1. NEMA 17 linear stepper motor
2. Lead screw length can be customized.
3. Lead screw Tr8*2(P2), Tr8*4(P2), Tr8*8(P2)
4. Lead distance: 2mm, 4mm, 8mm
Technique parameter:
Step Angle |
1.8° |
Step Angle Accuracy |
±5% (full step,no load) |
Resistance Accuracy |
±10% |
Inductance Accuracy |
±20% |
Temperature Rise |
80ºCMax.(rated current,2 phase on) |
Ambient Temperature |
-10ºC~+50ºC |
Insulation Resistance |
100MΩMin. 500VDC |
Dielectric Strength |
500VAC for one minute |
Shaft Radial Play |
0.06Max.(450 g-load) |
Shaft Axial Play |
0.08Max.(450 g-load) |
42HS Motor Name List(High Torque)
Type | Phase No. | Step Angle | Current
(A) | Resistance
(ohm±10%) | Inductance
(mH±20%) | Holding
Torque
(kg.cm) | Wires
No. | Weight(kg) | Body
Length(mm) |
| 42HS34-0334 | 2 | 1.8° | 0.33 | 36 | 46 | 2.4 | 4 | 0.24 | 34 |
| 42HS34-0404 | 2 | 1.8° | 0.4 | 30 | 35 | 3.2 | 4 | 0.24 | 34 |
| 42HS34-0804 | 2 | 1.8° | 0.8 | 6.5 | 4.6 | 2.3 | 4 | 0.24 | 34 |
| 42HS34-0954 | 2 | 1.8° | 0.95 | 4 | 3 | 1.8 | 4 | 0.24 | 34 |
| 42HS34-1004 | 2 | 1.8° | 1 | 2.6 | 3.2 | 1.8 | 4 | 0.24 | 34 |
| 42HS34-1334 | 2 | 1.8° | 1.33 | 2.1 | 3 | 2.2 | 4 | 0.24 | 34 |
| 42HS34-1504 | 2 | 1.8° | 1.5 | 1.9 | 2.5 | 2.5 | 4 | 0.24 | 34 |
| 42HS34-1704 | 2 | 1.8° | 1.7 | 1.3 | 1.8 | 2.5 | 4 | 0.24 | 34 |
| 42HS34-2004 | 2 | 1.8° | 2 | 0.7 | 1.1 | 2.5 | 4 | 0.24 | 34 |
| 42HS35-0504 | 2 | 1.8° | 0.5 | 10 | 20 | 3 | 4 | 0.24 | 35 |
| 42HS40-0404 | 2 | 1.8° | 0.4 | 30 | 60 | 4 | 4 | 0.27 | 40 |
| 42HS40-0804 | 2 | 1.8° | 1.2 | 6.5 | 12 | 4 | 4 | 0.27 | 40 |
| 42HS40-1204 | 2 | 1.8° | 1.2 | 5.5 | 11 | 5.2 | 4 | 0.27 | 40 |
| 42HS40-1304 | 2 | 1.8° | 1.3 | 2.6 | 4.2 | 3.8 | 4 | 0.27 | 40 |
| 42HS40-1504 | 2 | 1.8° | 1.5 | 2.5 | 5 | 4.5 | 4 | 0.27 | 40 |
| 42HS40-1704 | 2 | 1.8° | 1.7 | 2 | 3 | 4.2 | 4 | 0.27 | 40 |
| 42HS44-0804 | 2 | 1.8° | 0.8 | 14 | 33 | 5.2 | 4 | 0.24 | 44 |
| 42HS44-1004 | 2 | 1.8° | 1 | 4.5 | 6 | 3.8 | 4 | 0.24 | 44 |
| 42HS44-1504 | 2 | 1.8° | 1.5 | 2 | 3.6 | 4 | 4 | 0.24 | 44 |
| 42HS44-1704 | 2 | 1.8° | 1.7 | 1.8 | 3.8 | 4.2 | 4 | 0.24 | 44 |
| 42HS48-0354 | 2 | 1.8° | 0.35 | 56 | 94.6 | 5.5 | 4 | 0.34 | 48 |
| 42HS48-1004 | 2 | 1.8° | 1 | 4.6 | 4 | 3.5 | 4 | 0.34 | 48 |
| 42HS48-1204 | 2 | 1.8° | 1.2 | 3.2 | 4.2 | 4.2 | 4 | 0.34 | 48 |
| 42HS48-1304 | 2 | 1.8° | 1.3 | 3 | 5.5 | 5.2 | 4 | 0.34 | 48 |
| 42HS48-1504 | 2 | 1.8° | 1.5 | 2.8 | 4.8 | 5.5 | 4 | 0.34 | 48 |
| 42HS48-1684 | 2 | 1.8° | 1.68 | 1.8 | 2.8 | 4.8 | 4 | 0.34 | 48 |
| 42HS48-1804 | 2 | 1.8° | 1.8 | 1.5 | 2.6 | 5.2 | 4 | 0.34 | 48 |
| 42HS48-2504 | 2 | 1.8° | 2.5 | 1.2 | 1.8 | 5.5 | 4 | 0.34 | 48 |
| 42HS54-1504 | 2 | 1.8° | 1.5 | 3 | 6.5 | 6.8 | 4 | 0.35 | 54 |
| 42HS60-1004 | 2 | 1.8° | 1 | 24 | 65 | 6 | 4 | 0.5 | 60 |
| 42HS60-1504 | 2 | 1.8° | 1.5 | 2.5 | 6 | 7 | 4 | 0.5 | 60
|
