Tracker Home Servel Platform Shenzhen Coban GPS Tracking System Tk103 with 5 Phone Numbers
| Price: |
US $ 22/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
TK103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
83*54*26mm |
| Band: |
800/900/1800/1900 |
| Quantity Per Carton: |
50PCS |
| Carton Size: |
54*40*38cm |
| Network: |
GPS/GSM/GPRS |
| Name: |
GPS Tracker GPS103b&Tk103b |
| Original: |
Coban Factory |
| Backup Battery: |
500mAh Rechargeable Li-ion Battery |
| Apllication: |
Fleet Management Vehicle/Car/Taxi/Truck |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Set-real Type |
| Chip: |
MEDIATEK |
| Screen Size: |
No |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Brand: |
Coban |
| Certification: |
ISO 9001:2008 |
Product Description
Tracker Home Servel Platform Shenzhen Coban GPS tracking system TK103 With 5 Phone NumbersTop quality, fast delivery in 3 days and one year warranty.
Main Features and functions:
Latest Versioin with built in shock sensor
Remote control with alarm on/off function.
GPS/GSM station positioning.
SMS/GPRS/internet network data transfer.
Point-to-point, point to group, group-to-group monitoring.
Continuously auto track upon different time and distance intervals.
Absolute street address with GSM network.
SD card for data logging.(SD card is NOT attached)
Support 9-36V, so it can be installed on Bus, taxi, truck ,personal car, business car etc.
Maximum 5 cell phone numbers are allowed to admin the tracker.
Other functions: SOS, Geo-fence, movement alarm, over speed alarm, accident alarm(Optional), door alarm, Shock Sensor alarm(Optional), Acc alarm, fuel alarm(Optional), voice monitoring etc.
Cut off the oil and power system.
The on-line web page tracking software has one month free trial, after that it is 3USD per year.

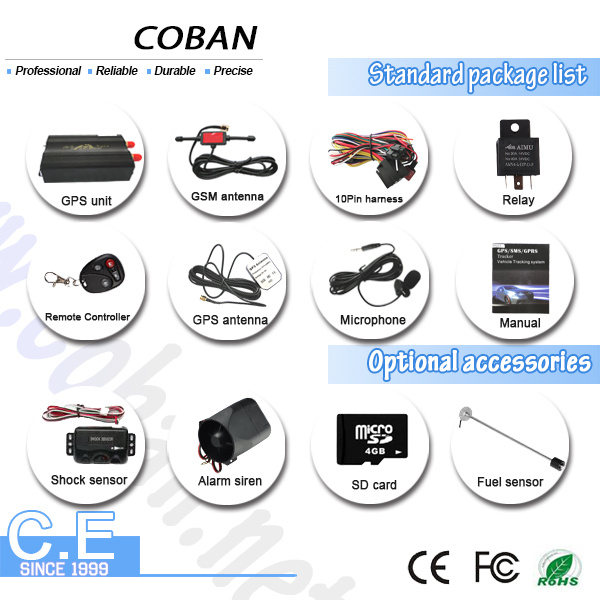

Standard package:
GPS Unit

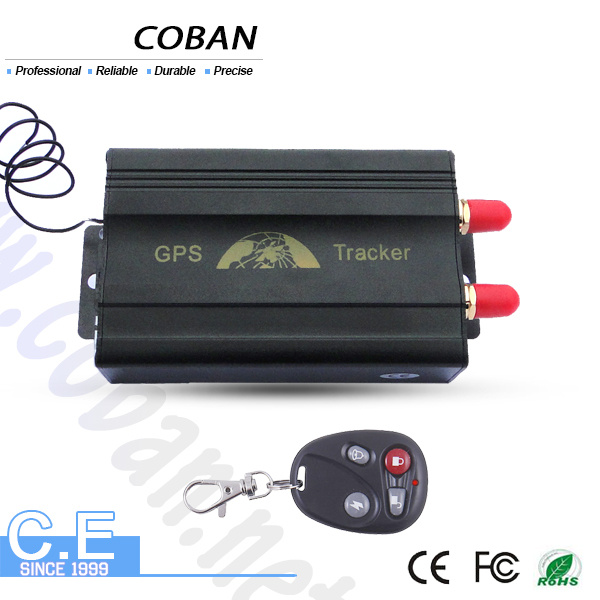

Remote controller(one)
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Manual | Box
Optional accessories
One more remote controller
Shock sensor
alarm siren
Microsd memory card
fuel sensor
How to tracking ?
The GPS devices support phone tracking and 13 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A: SMS + Map software;
B: PDA Cell Phone;
C: Real time tracking, and track via your computer(PC Software);
D: simple & useful real time web tracking via our website www.gpstrackerxy.com
E : IOS and Android APPTechnology parameters:
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

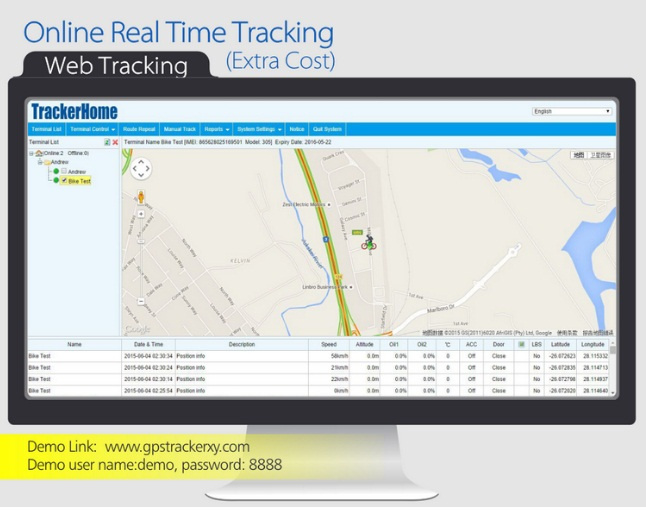

Web Real Time Tracking Platform www.gpstrackerxy.com (Demo ID:demo ; Password : 8888 ) It is ok to track 10,000pcs units in platform at same time.
Mobile App: Tracker Home
Application
Used widely for vehicle and other moving objects tracking. Real-Time Vehicle Tracking Solutions For Business
1)Live Fleet Tracking Systems: Engineered and tested to meet the most stringent fleet management applications, our GPS locators allow businesses to view company vehicles in real-time while also giving fleet managers lifetime access to historical GPS tracking data! Providing comprehensive reports that break down mileage driven, speeds driven, travel direction, start/stop data and more, users can easily manage a small or large number of company vehicles all through our user-friendly, online mapping system.
2)Boost Employee & Vehicle Efficiency: By utilizing a fleet management plan that calls upon GPS tracking devices, businesses large or small with company vehicles can evaluate employee driving activity, accurately document mileage and eliminate driving behaviors such as excessive vehicle idling that can hurt automotive maintenance, customer service and company profit.
3)Auto Theft Security: Vehicle locator systems can protect all of your companies mobile assets. Easy to set geo-fences will allow businesses to create safe zones that will send text message notifications if a vehicle moves outside the programmed safety zones. Don't let your business operations be slowed down by theft! With GPS trackers securing your company vehicles, automobile theft will be a thing of the past!
Certification: CE FCC
Faults & the Solutions
Faults | Solution |
Fail to turn it on | Please check if built-in battery is charged, and power wires connected well. |
No GSM signal | Please check if SIM card installed correctly. Please check if SIM card is GSM network. Don't turn on the PIN code No calls can be diverted Please check if voltage of the power is normal |
No GPS | Please check if GPS antenna connected well, and recommend GPS antenna be installed near the window glass, no metal parts can cover it to make sure better GPS signal reception. |
No reply to SMS command | Password wrong or the format is wrong. |
No reply to calling | Authorized / admin phone number is incorrect |
No alarm message | Authorized / admin phone number has not setup |
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
OEM&ODM Service
1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order
