| Prod Model: |
Vehicle gps tracking 105AB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
Ce FCC Coban GPS Tracker |
| Warranty Time: |
1 Year |
| Car Security: |
Engine Shut off, Acc, Geo Fence |
| Central Lock System: |
to Lock/Unlock Car Door Remotely |
| Anti Theft Car Tracking: |
Automotive Use and Vehicle Tracking |
| GPRS Communication: |
TCP UDP |
| Speed Governor: |
Speed Limiter, Speed Control |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| GSM Quad Band: |
850/900/1800/1900MHz |
| Map: |
Real Time Google Map |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Get Position and GSM Transmit |
| Port Number: |
20 |
| Model: |
GPS105A |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description

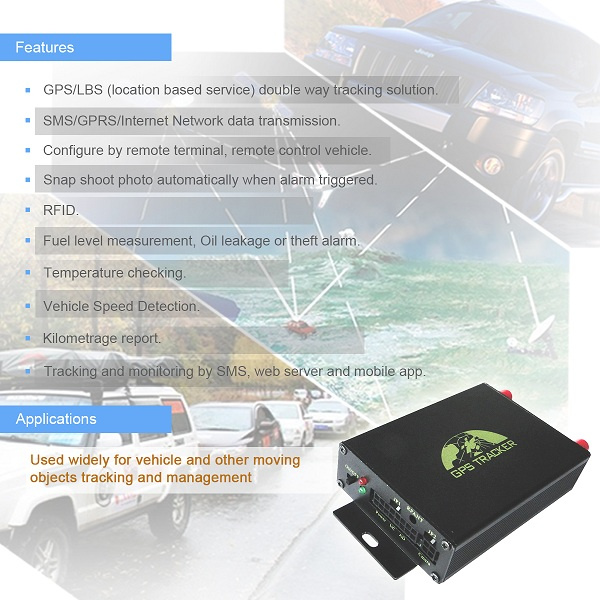

Tracking car GPS Tracker coban 105AB with Speed Governor external antenna 1. Dual sim card vehicle gps tracker
2. Work with RFID and camera
3.Speed limiter/Speed control
It support Speed detection ,speed recording , kilometrage report , speed Governor !
You can set up the max speed that you want , such as 80km/h etc .
When speed approach max speed, siren beeps 5 times to warn the driver; when speed reaches or exceed the max speed, relay will be activated to limit the speed.
4. remote stop engine ,lock/unlock door for auto vehicle by central lock system
5. Fuel level monitor,Camera take phone when door alarm is active
Top quality, fast delivery in 3 days and one year warranty.
Detailed descriptionIt is based on GSM/GPRS(850/900/1800/1900MHZ)wireless telecommunication internet and GPS satillite global position system,track by multi tracking ways
Basic functions: Highlights :
-- SMS/GPRS tracking
-- Dual sim cards
-- Cut off engine by SMS
-- Auto track by time / distance
-- SOS button
-- Speed governor limiter
-- Multiple anti theft alarms : Geofence , movement alarm , shock alarm ,
low battery alarm , power off alarm

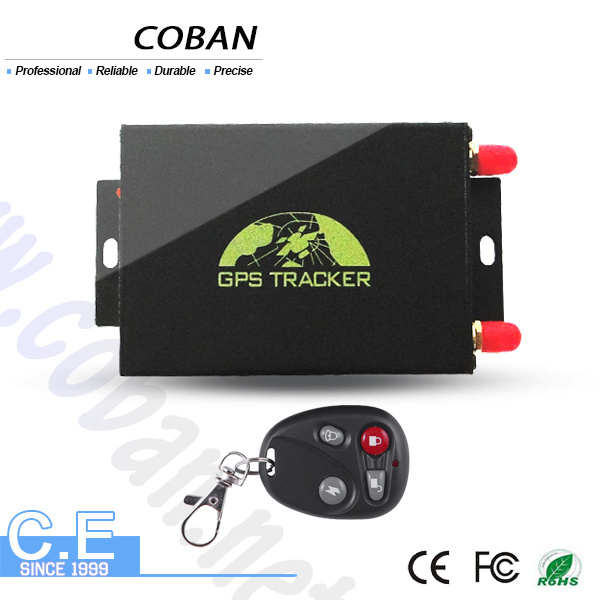

-- ARM Disarm by SMS , Remote controller
- Door open / ACC alarm
-- Lock/unlock door by SMS and remote controller

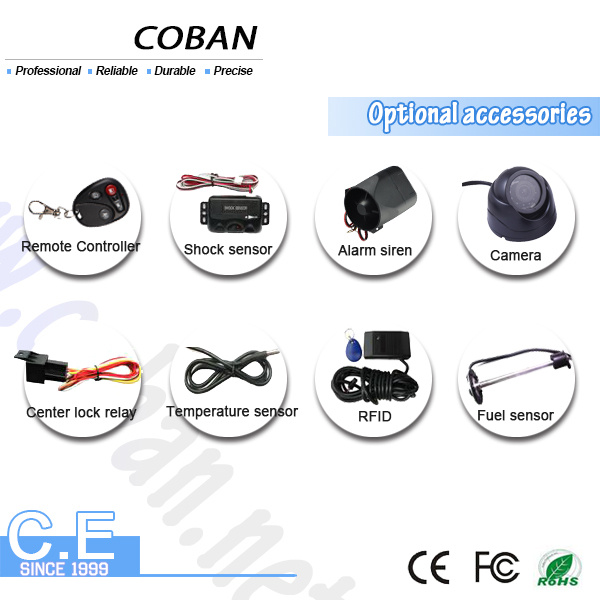

-- Support camera / fuel sensor / RFID
-- Speed recording
-- Mileage report
-- Maintenance notification
-- Support RFID
-- Support Camera
-- less gprs mode ( to save gprs data )
-- sleep mode ( to save power )
-- check balance by SMS
-- Track by SMS/Mobile app/Web platform
-- Real-time online platform
5 tracking solutions:
SMS tracking by calling, return google map link
Absolute street address by sms
Free software
Free IOS/Android app
Optional web server
Applying directions:
Large Scale Vehicle fleet/logistics/Vehicle rental (12-24V)
Technical data
DIM |
85*71*26mm |
Weight |
170g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS Module |
SIRF3 chip |
GPS Sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start Time |
Cold status 45s
Warm status 35s
Hot status 1s |
Applicable vehicle power |
12 V -24V
|
Backup Battery |
Chargeable changeable 3.7V 800mAh Li-ion battery |
Storage Temp |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing
|

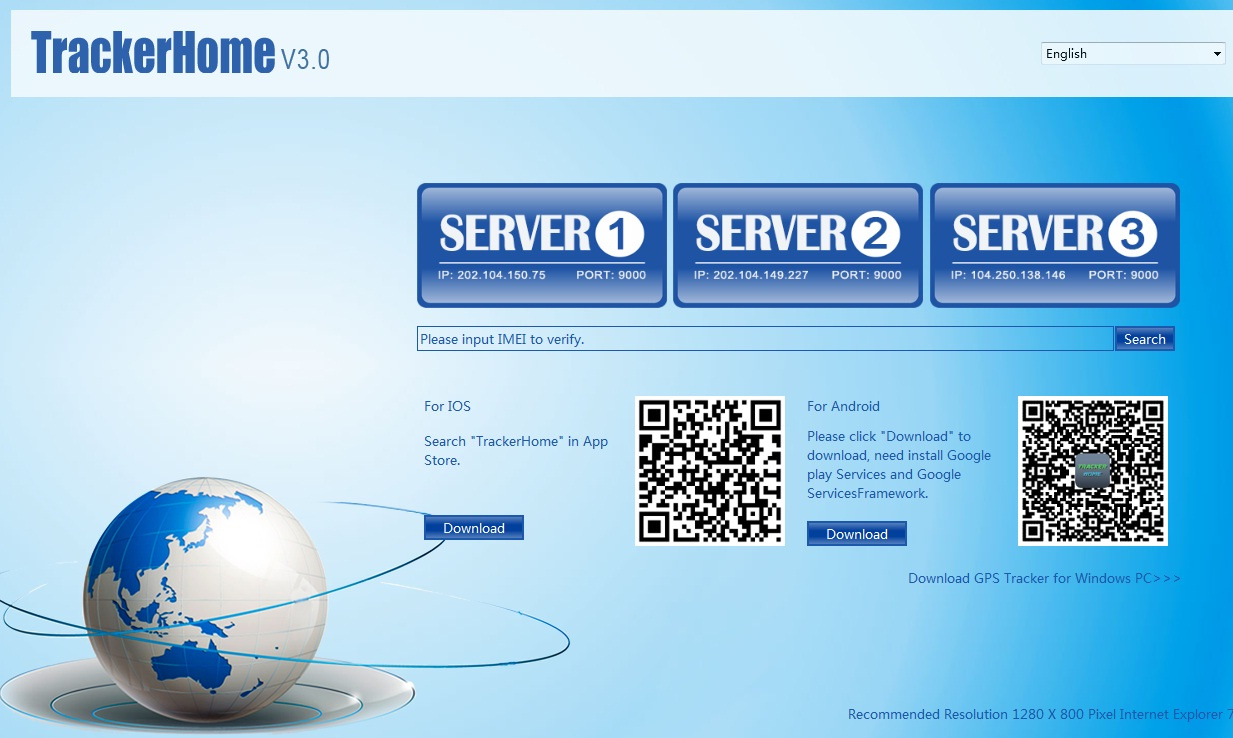

Real time track in Web platform/Android &iphone APP TrackerHome with GOOGLE map: Welcome to visit our server www.gpstrackerxy.com , please login in by IE browser,choose server 1,User ID: demoPassword: 8888One year FREE tracking in platform and Android/Ios app is provided US$3/pc yearly after one year web gps tracking platform www.gpstrackerxy.com
Android Ios app tracking
Vehicle gps tracker tk105 with dual sim card support speed limiter accessoreis

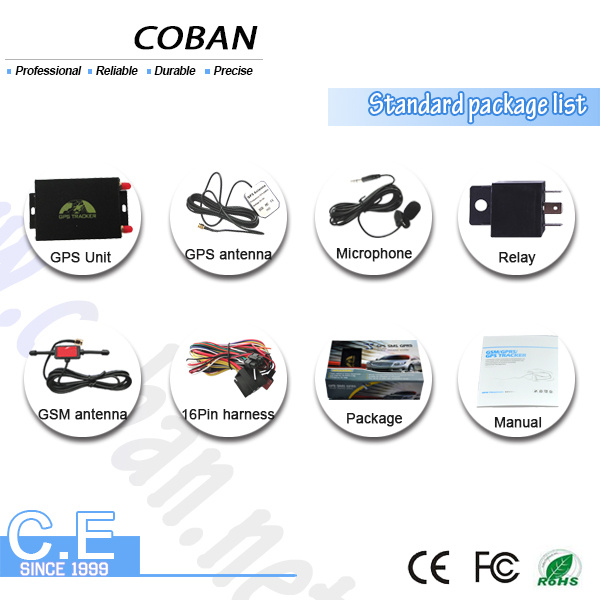

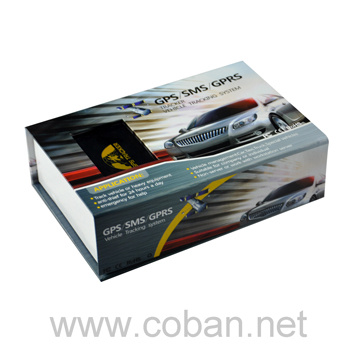

Packing box
