| Prod Model: |
tk103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Network: |
GSM/GPRS |
| OEM / ODM: |
Customized Logo and Packing |
| Warranty Time: |
1 Year |
| Tracking Ways: |
APP Software /Web Platform /SMS |
| Tracking Map: |
Google Map |
| Shipping Ways: |
DHL, FedEx, UPS, by Sea, by Air |
| Optional Accessory: |
Fuel Monitor |
| Remote Controller: |
Support 2 Remote Controller at Most |
| SMS/GPRS: |
GPRS (TCP/UDP) |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multichannel |
| Chip: |
SiRF |
| Certification: |
ISO/TS16949 |
| Model: |
Tk103 |
| Screen Size: |
No Screen |
| Carrier Frequency: |
850/900/1800/1900 |
| Brand: |
Coban |
Product Description

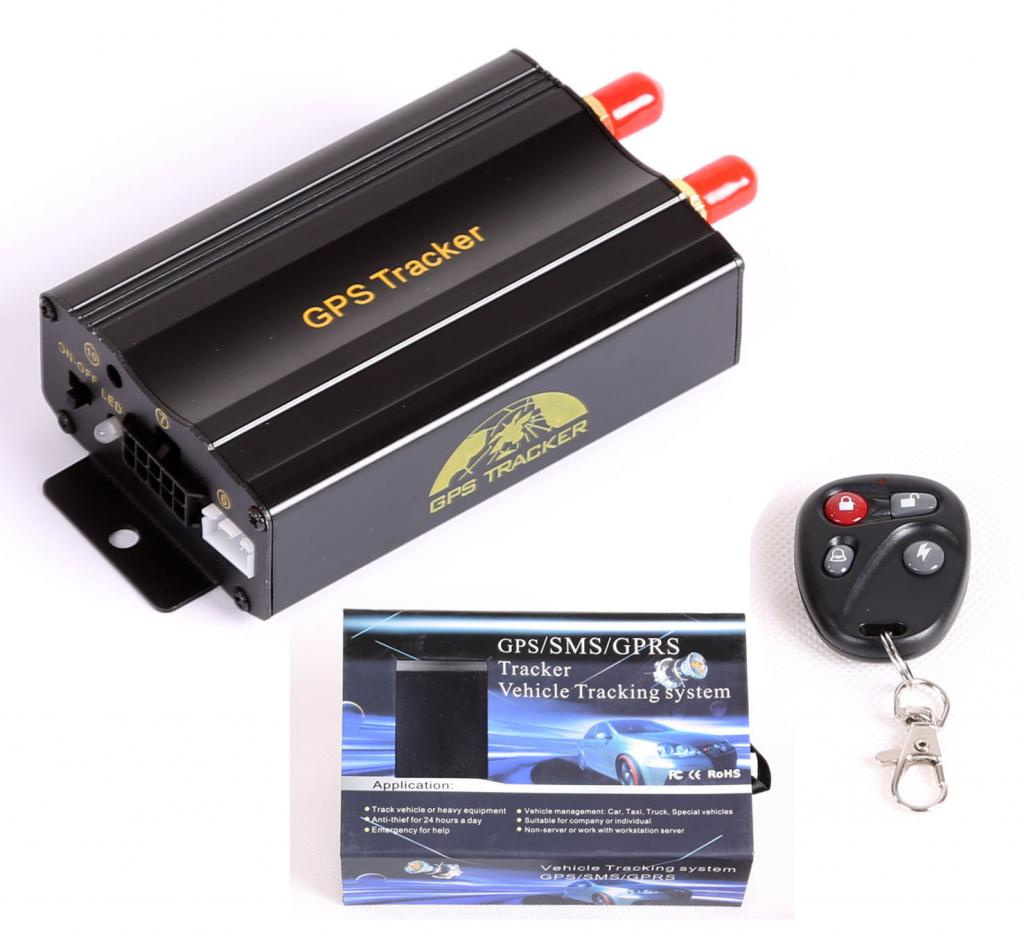

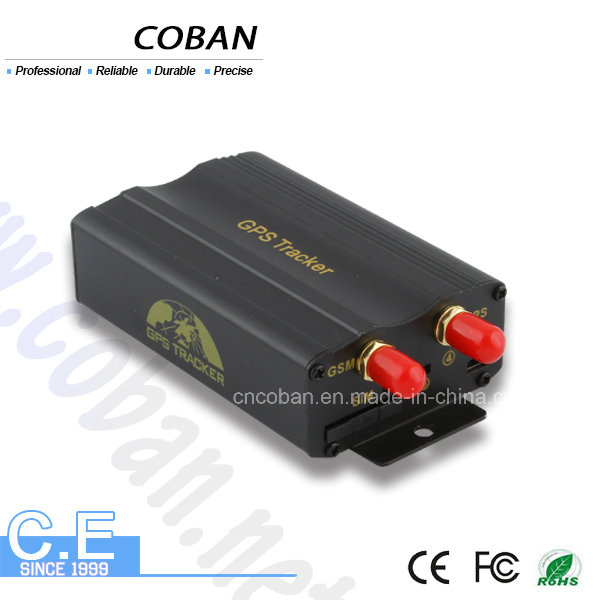

Model: GPS tracker TK-103A /B
Main Function Description
1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3. Remote Engine-stop and Resume.
4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
Applying directions:
Vehicle fleet/logistics/Vehicle rental
Specifications:
| Content | specifications |
| DIM. | 54*62*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | Simcom300d or Simcom340d |
| GPS Chip | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Voltage of car power system | 12 V -24V |
| |
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
| Functions | Tracking;Monitor;Geo-fence;Movement alert;Overspeed alert;SOS Button;Low battery alert; Hidden number tracking; Power off alarm; Send sms cut off/resume the oil and power system, arm, door alarm, sensor alarm,ACC alarm; Supoort 4G SD card; Support TCP and UDP protocol |
| Warranty | 12 months Warranty |

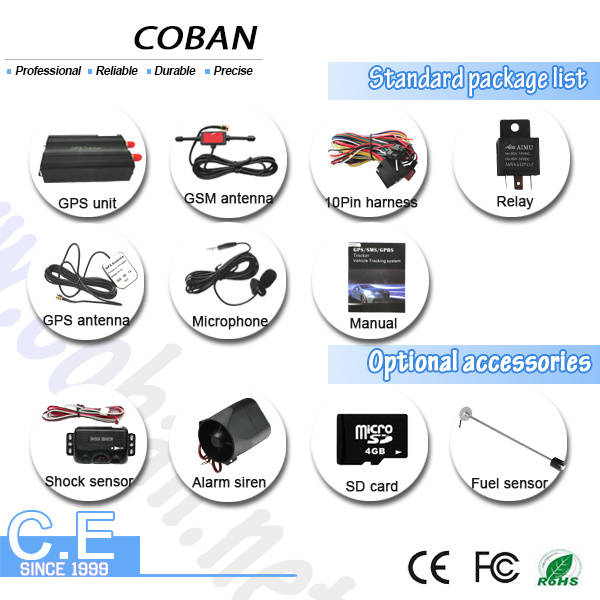

Packing contents:
car GPS Unit tk103
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
manual | package

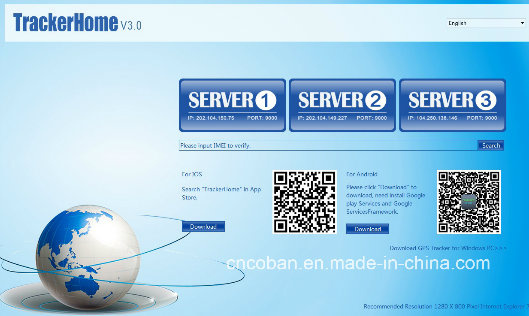

How to tracking ?
The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way: A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
