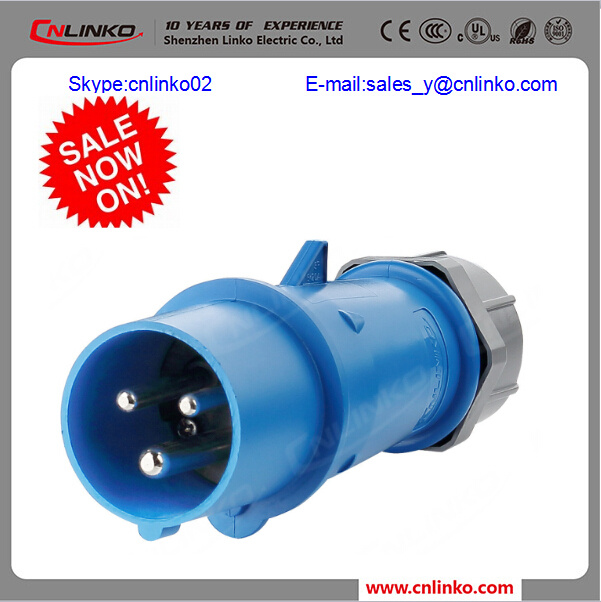

| Prod Model: |
163PA6S/323PA6S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Cnlinko |
| Waterproof Rating: |
IP44/IP67 |
| Connecting Mode: |
Push and Pull |
| Shell & Insulated Parts: |
PBT |
| Durability: |
≥500 Mating&Unmating Cycles |
| Temperature Rating: |
-40°c~80°c |
| Colour: |
Blue/Red |
| Rated Current: |
16A/32A |
| Voltage: |
110V-400V |
| Pins: |
3pin, 4pin, 5pin |
| Type: |
Socket Terminals |
| Material: |
Copper |
| Application: |
Transmission of Electrical Signals |
| Certification: |
CE, RoHS, ISO |
| Brand: |
Cnlinko |
Product Description
1.Portable installation,with dustproof,moistureproof,corrosionproof,flame retardant,high temperature resistant,anti-aging,toughness,impact resistance and high current.
2.High quality and performance , IEC60309 connectors are widely used in mining,petrochemial construction,cocks,factories,covention centers and municipal engineering.
3.Products comply with international standard IEC60309-2 and consistent with national standards GB/T11918-2001,GB/T11919-200 and also have passed CE&ROHS certification.
4.Product passed the rigorous testing,test frequency 10-500HZ ,acceleration of 10g,displacement 1.5mm ,vibration free within the product off 0.1 microsecond transient process.
5.Waterproof,wiring safety which face a variey of practical applications in the top programs wiring safety,screw preventing device,manually install,simple flexible and fast.
6.Using high quality of beryllium copper contact terminals ,spring contacts and gold-plated technology to control temperature and reduce the friction during the plug and pull,also easy to plug and self-cleaning.
Electrical
Dielectric Voltage:Withstands 3,000V AC Min.
Working Voltage:440V AC RMS.
Operations:Mechanical 10,000 cycles, electrical 6,000 cycles.
Mechanical
Impact Resistance:In accordance with UL 746C.
Terminal Identification:In accordance with UL, CSA and international conventions.
Product Identification:Identification and ratings are part of the external label and molded into
the receptacle mount.
Mounting:External adjustable feet.
Environmental
Moisture Resistance:Outdoor - 4X (Watertight, Washdown)
Indoor - 12 (Dusttight, Falling Dirt and
Noncorrosive Liquids).
Ingress Protection:IP67 Suitability.
Flammability:UL94-5VA and V-0 Classification.
Operating Temperature:Max. Continuous +75 ° C; Min.
Continuous -40 ° C.
UV Resistance:All materials are UV stabilized.
DH-24-F00PE-P01,DH-24-F00SX-S01 |
Connecting mode: | plug/unplug |
| Protection level: | IP44/IP67 |
| Cable specification: | 1.5mm2 ~ 4mm2 /2.5mm2 ~10mm2 |
| Current rating(A): | 16A/32A |
| Withstand voltage(AC.V)1min: | 3,000V AC Min |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Screw |
| Prevent the combustion level: | UL94-V0 |
| | |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| | |
| Main characteristics: | |
| - Sealed against dust and fluid (IP44/IP67) |
| - Vibration resistance,impact resistance,stretching resistance |
| - With one hand, can quickly insert or pull out |
| | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
Packaging & Shipping
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 7-10 working days after received deposit for USB Convert Serial Cable Connector
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partne
Our Services
1. Supply OEM and ODM service for USB Convert Serial Cable Connector
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4.Free samples are available for USB Convert Serial Cable Connector
5. supply the best service to you with the contact details below:
TEL:0086-0755-36853901 FAX:0086-0755-86960305
Cellphone: 0086-18312490297
Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.
We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.
Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.
Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.
We will always keep skills fresh and up-to data with international.
Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.
Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
