Transaparent Strong Adhesion Thermal Insulation Double Sided Tape

Name: Transaparent Strong Adhesion Thermal Insulation Double Sided Tape
Brand: all-electronics-online.com
SKU: 830820635
Availability: InStock
Rating: 5 (122 reviews)

Price:	US $ 0.52-15.28/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BM2000
Thickness:	0.05mm~0.4mm
Thermal Conductivity:	1.2~1.5W/M-K
Temperature:	-20~180
Expiration Date:	12 Months
Temperciance:	8~16 Kg/Inch
Application:	Motor
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	Silicone
Thermal Rating:	250 250
Maximum Voltage:	<10KV
Certification:	RoHS
Color:	White,Blue
Brand:	Jrft

Product Description

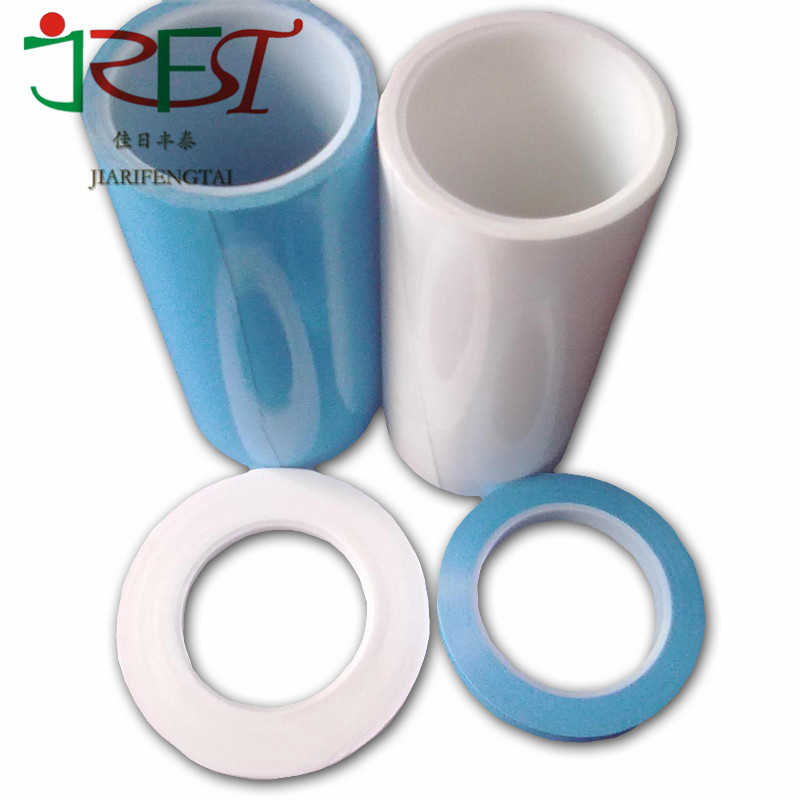

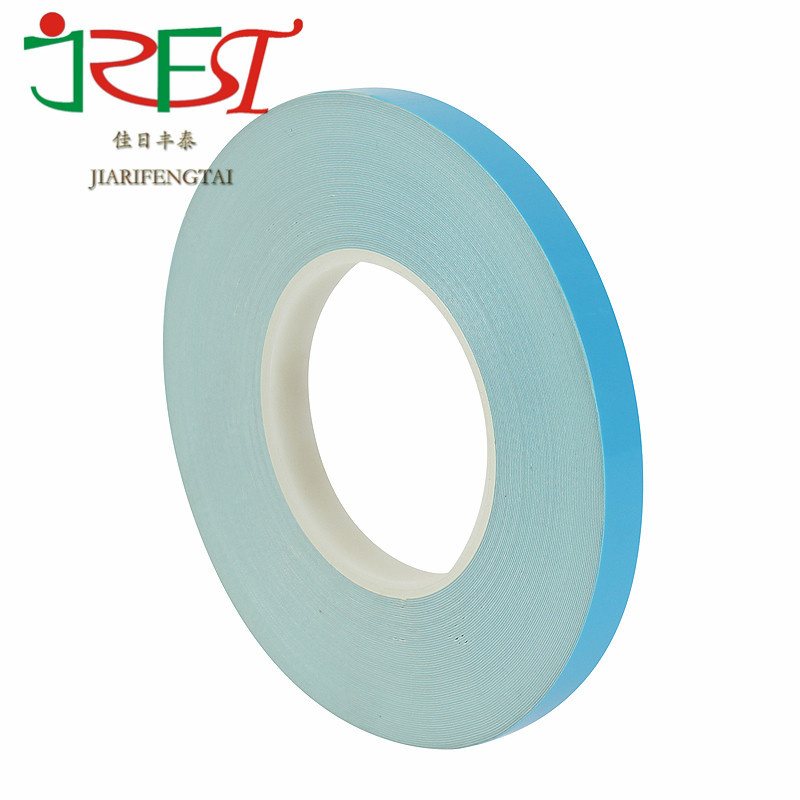

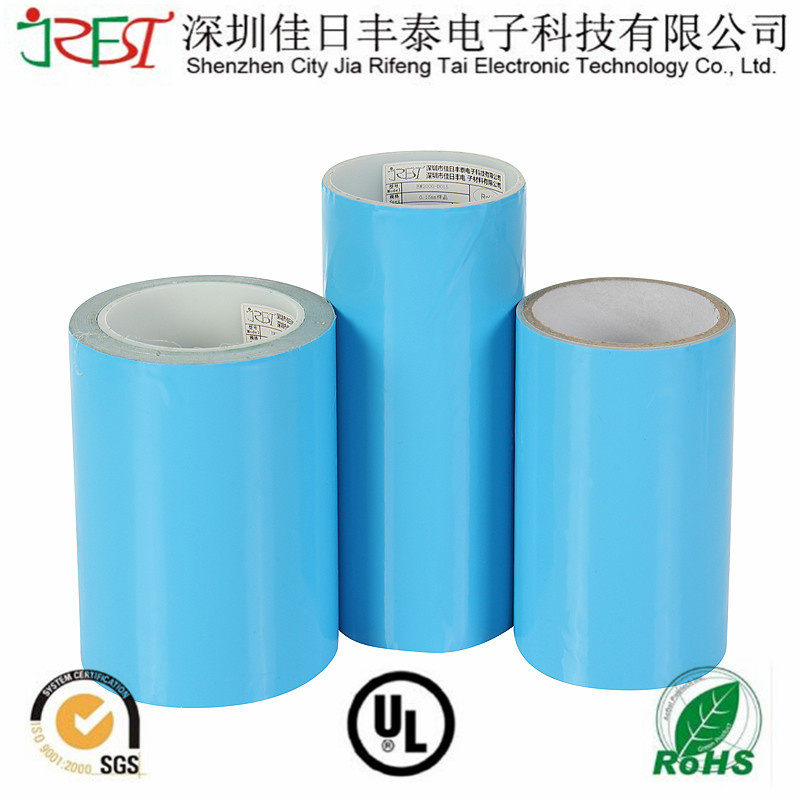

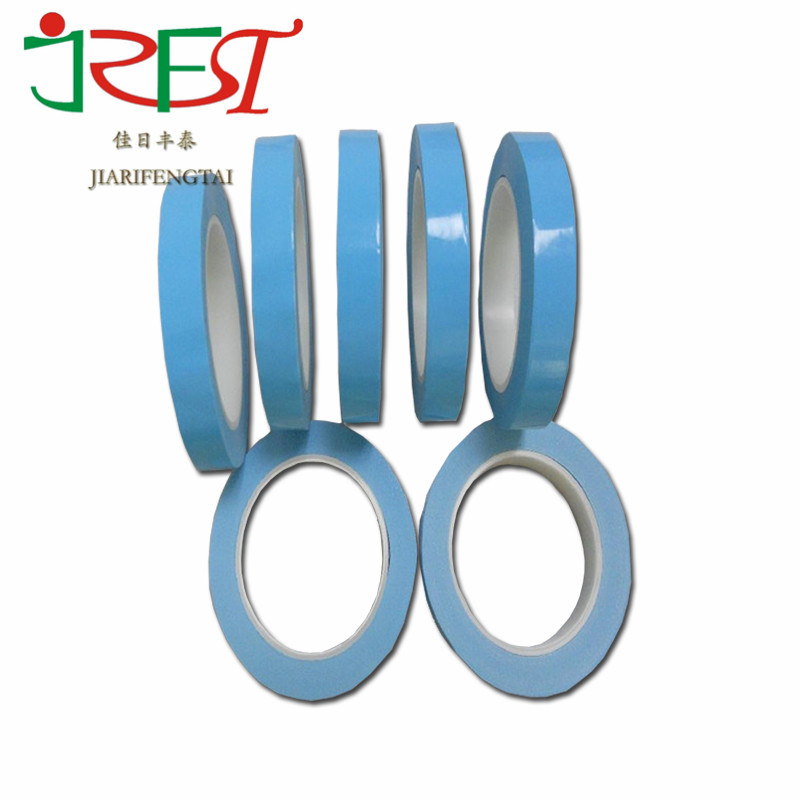

Thermal Double-Sided Tape

BM2000 thermal double-sided tape is composed of acrylic polymer filled with heat conductive ceramic powder and silicone adhesive, has high thermal conductive and insulation properties, and it is flexible, compressible, adhesion, strong adhesive.Adapt to wide temperature range, can fill the surface irregularities, can be tightly attached heat source device and heat sink, make the device cooling.

Application :

1,Electronic appliances, LED lighting,
2,High power transistor

3,Applied to the chip, the flexible circuit board,

4,Heat sink or other cooling devices of the adhesion.

5,Hardware industry, printing industry and other manufacturing industry

Feature :

1,Thermal conductive performance high and stable, its life is longer than the general thermal double-sided stickers, can work under normal temperature (80-120°C) minimum 5 years.

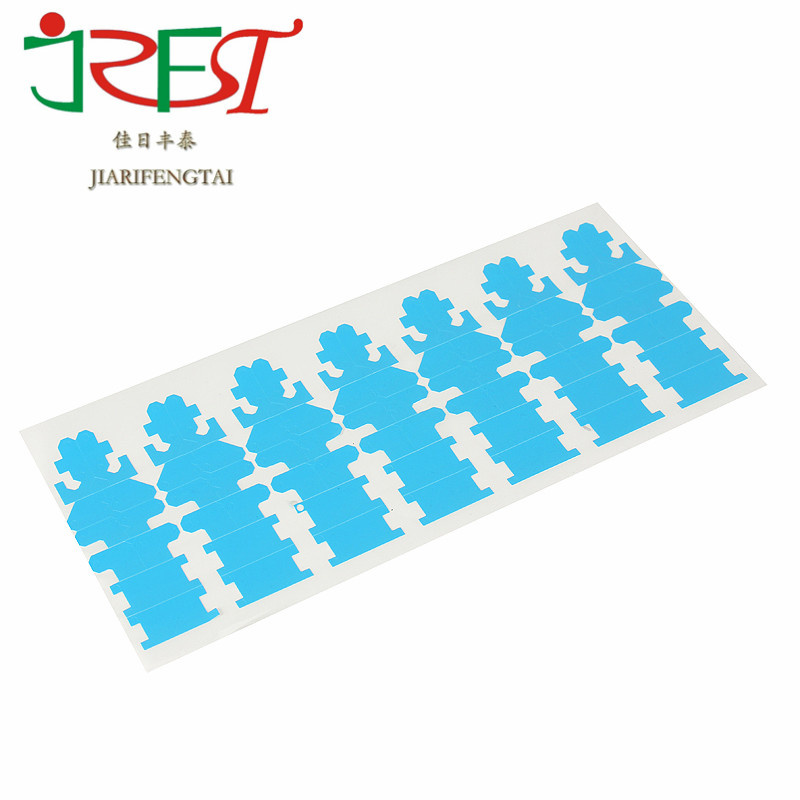

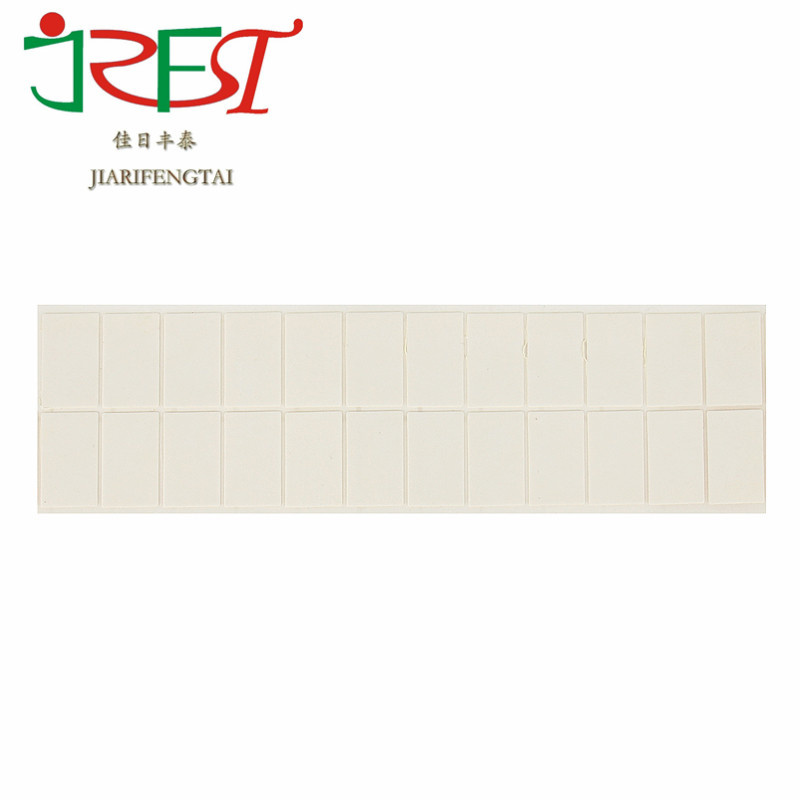

2,Thermal double-sided tape can die cutting of any shapes, and can be posted in advance on a surface so as to used in the future.

3,With good viscidity, can put the heating element and Radiator together, as a whole, enhance the cooling effect.

Advantage :

1,High reliability and thermal conductivity

2,Has excellent flexibility, adhesion, self adhesive and high compressibility

3,Can replace the hot melt adhesive, screw,fastener for fixing mode

4,Meet ROHS and UL the environmental requirements

PROPERTIES PARAMETERS
Carrier Type	None Carrier	None Carrier		None Carrier	None Carrier	Fiberglass	Fiberglass
Color	White		White	White	Blue/White	Blue/White	Blue/White
Thickness	0.05		0.1~0.15	0.2	0.1mm~0.15	0.2mm~0.3	0.4~1.0mm
180° Stripping Force (N/25mm)	>10.78		13.72	15.68	>13	>15	>18
Use Long Temp / Use Short Temp	120~180				120~180
Retentively(hr)(1kg/inch/25°C)	>48		>48	>48	>48	>48	>48
Adhesion(kg/inch)	--		--	--	1.1	1.4	1.5
Withstand Voltage (KV)	1.5		2.3	4.2	2	3.5	5
Initial Adhesion(kg/inch)	8		13	16	1.2	1.4	1.6
Thermal Conductivity ( w/m-k)	1.2				1.5
Use Temp	-20ºC~+120ºC				-20ºC~+120ºC
Storage and Shelf Life	To maintain the best performance, must be in 23 ° C ± 5 ° C , relative humidity of 60% ± 10% in the original container storage ;In addition, within 12 months from the date of production to use this product.

Size can custom made according to your equipment !
