| Prod Model: |
LEI series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Power Of Motor (Kw): |
0.75-132 |
| Rated Capacity (kVA): |
1.6-180 |
| Rated Current (a) 380V: |
2.5-271 |
| Max Voltage (V): |
The Associated Input Voltage |
| Input Voltage, Frequency: |
3p 380 50/60Hz |
| Output Scope: |
0.1Hz-400Hz |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Brand: |
Tosunlux |
| Frequency: |
50/60Hz |
Product Description

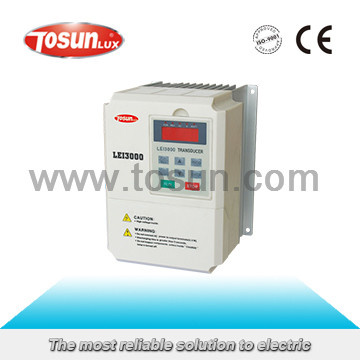

Specification of LEI Transducer
Type 380V | 3007 | 3015 | 3022 | 3033 | 3040 | 3055 | 3075 | 3110 | 3150 |
Max Power of Motor(KW) | 0.75 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 | 11 | 15 |
Rated Capacity(KVA) | 1.6 | 2.6 | 3.7 | 4.7 | 6.5 | 8.6 | 11 | 17 | 22 |
Rated Current(A) 380V | 2.5 | 4.0 | 5.5 | 7.0 | 9.5 | 13 | 17 | 25 | 34 |
Max Voltage(V) | The associated input voltage |
Input Voltage, Frequency | 3P 380 50/60Hz |
Output Scope | 0.1Hz-400Hz |
Frequency Analytical Step | Digital setting:0.1Hz |
Frequency Accuracy | Digital setting:±0.01%, analog setting:±0.2% |
Acceleration /Slowdown Duration | 0.1-600s, respectively setting |
Overloading | 150% rating flr 1min |
Type 380V | 3185 | 3220 | 3300 | 3370 | 3450 | 3550 | 3750 | 3950 | 31100 | 31320 |
Max Power of Motor(KW) | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 95 | 110 | 132 |
Rated Capacity(KVA) | 26 | 30 | 40 | 50 | 60 | 75 | 102 | 130 | 150 | 180 |
Rated Current(A) 380V | 40 | 46 | 60 | 76 | 92 | 110 | 153 | 195 | 225 | 271 |
Max Voltage(V) | The associated input voltage |
Input Voltage, Frequency | 3P 380 50/60Hz |
Output Scope | 0.1Hz-400Hz |
Frequency Analytical Step | Digital setting:0.1Hz |
Frequency Accuracy | Digital setting:±0.01%, analog setting:±0.2% |
Acceleration /Slowdown Duration | 0.1-600s, respectively setting |
Overloading | 150% rating flr 1min |
Application
LEI Series Transducer integrates digital technology, computer technology, and modern auto-control technology. It has many merits like high accuracy, low noise,large torque, reliable performance. Therefore, it is applicable for industries such as electronics, machine, metallurgy, weaving, printing, petrol, chemistry and so on. It takes important role in improving automatization level of industry and gets high reputation from industries members.
Features
Output of low speed constant torque, secure operation.
16KHz carrier frequency, no noise.
General various control modes.
Inner RS-485 port for network computer control provided.
Adopting 16-bit micro-processor, controlled by SPWM.
Non-speed sensor vector control
U/F and constant rotating speed startup control applied.
