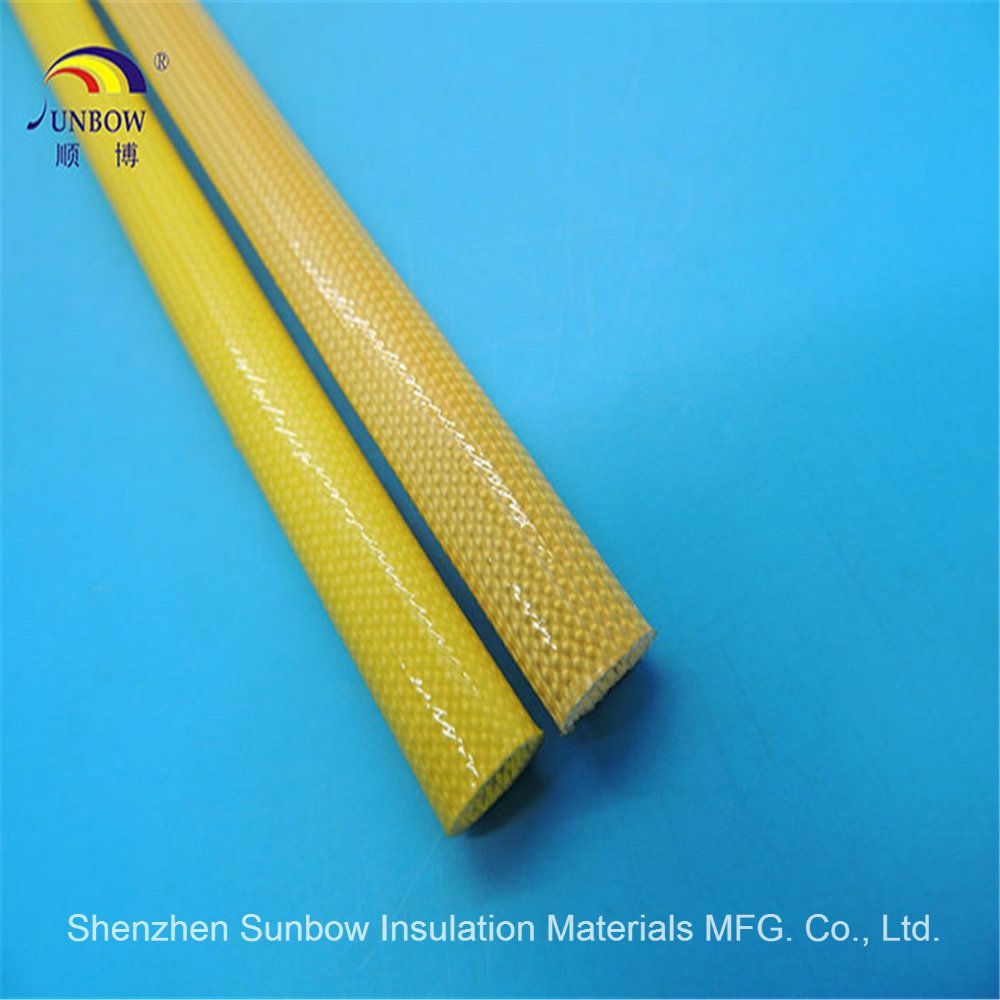

Transformer Bushing Insulator Varnished PU Fiber Glass Sleeving
| Price: |
US $ 0.031-0.99/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SB-PUGS |
| Heat Resistance: |
170c*3 Hour |
| Chemical Resistance: |
Excellent Oil Resistance and Benzene Resistance |
| Electrical Performance: |
Rated Voltage 300V |
| Application: |
F Grade Electrical Machinery |
| Type: |
Insulation Sleeve |
| Chemistry: |
Hybrid Insulation |
| Thermal Rating: |
F 155 |
| Maximum Voltage: |
<10KV |
| Material: |
Polyurethane |
| Certification: |
RoHS, Reach |
| Color: |
Amber(Other Color Upon Request) |
| Brand: |
Sunbow |
Product Description
Transformer Bushing Insulator varnished PU Fiber Glass SleevingModel Number: SB-PUGSWorking temperature: 155ºCStructurePU fiberglass sleeving is non-alkali fiberglass braided, then coated with polyurethane resin and treated in high
temperature.UsagePU fiberglass sleeving possesses reliable heat resistance and good electrical performance. It can be used for wiring
insulation and mechanic protection for F grade electrical machinery and electric appliances.SpecificationThe polyurethane fiberglass sleeving is manufactured based on European and American standard. It
possesses excellent compatibility and adaptability in the applications of all kinds of electrical equipment
and electrical machine. Many other good special performances are still under exploration.DimensionInner
Diameter
(mm) |
Tolerance
(mm)
|
Wall Thickness for
1.5KV(mm)
|
Wall Thickness for
2.5KV(mm)
|
Wall Thickness for
4.0KV(mm)
|
Wall Thickness for
7.0KV(mm)
|
0.5 ~ 3.5
|
+0.3,-0.1
|
0.38±0.12
|
0.41±0.12
|
0.45±0.15
|
0.52±0.15
|
4.0 ~ 9.0
|
+0.3,-0.2
|
0.42±0.15
|
0.46±0.15
|
0.48±0.15
|
0.55±0.15
|
10 ~ 16
|
+0.5,-0.5
|
0.50±0.20
|
0.52±0.20
|
0.58±0.20
|
0.65±0.20
|
18 ~ 35
|
+1.0,-1.0
|
0.65±0.25
|
0.70±0.25
|
0.75±0.25
|
1.10±0.30
|
Package0.5mm ~ 4.5mm 200m/roll
5.0mm ~12.0mm 100 m/roll

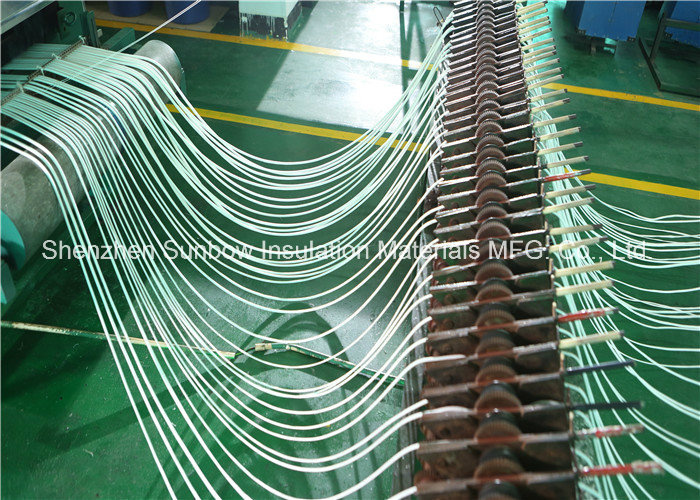

14.0mm ~ 35.0mm 50 m/roll (1 m/segment upon request)Color: Standard color is amber (other color available upon request).Company show
FAQ1. Why choose us?We are the No.1 fiberglass sleeve coated silicone resin in China.2. What material do you use? Fiberglass yarn and silicone resin,PVC,silicone,PE,PET. RoHS,Reach,UL certificated 3. How's the package? Packed by roll then rolls by carton. Also can cut and pack as requested.4. Where is your factory?In Shenzhen. The loading port here is Yantian or Shekou.5. How many employees are there in your company?More than 50.6. How many people are there in your R&D department? More than 5 desingers,.7. How do you control the quality? We have 8 QC team. Each process has one QC. We check carefully before shipment.8. What's your sample lead time?can ship right now if in stock.5 - 7 working days if the items are out of stock.9.Is the sample free charge?Yes,it is free but the express fee should be paid by buyer.10.What's your mass production lead time? 7 - 15 working days.11. What's your payment terms? L/C at sight, T/T in advance,Western Union,Paypal.Package
Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.
Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr. 2014 (Cert. No. E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.
Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.
Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10, 000 square meters. We successfully passed ISO9001: 2008 and TS16949 international quality management system, now ISO14001 system is also pushing.
Over the years, we have been enjoying good reputation in our industry by adhering to the business philosophy of "Faith, Practical, and Responsive. " We also get supports and trusts from many international well-known enterprises. Thanks greatly for so many help and cooperation from our partnership, such as Philips, Whirlpool, Conair, Emerson, GE, Black & Decker, SEB, ABB, Schneider, Siemens, Electrolux, Toshiba, Panasonic, Hitachi, Mitsubishi, Samsung, China's Huawei, Haier, CRRC, and many other famous enterprises' trust directly and indirectly; Furthermore, as the second level supplier for automotive system, Sunbow products have been indexed in IMDS. We also have successfully become the qualified supplier for Volvo, Land-Rover, GM, Honda, Suzuki, Nissan, Hyundai and so on.
We know that our task is long-term and arduous, but opportunities are aside with challenges. We "Sunbow" people will take on a new look and work hard to provide our customers the best quality products, first-rate service, the most competitive price and the most reliable technical supports. Return to our customers, return on the community.
