220KV Oil-immersed Power Transformer copper coil for transformer
Product description:
01) Iron core is made of cold-rolled silicon-steel sheet with high conduction of magnetism and adopts pulling-plank structure,
so that its magnetic route is short, losses and noise level is low;
02) Compress wire is adopted for winding so losses are low and have good ability withstand short-circuit;
03) Its active part adopts special pressing method which could ensure reliable axial pressure;
04) The oil tank is bell type with the structure of full folding plate type, having an excellent exterior and easy for maintenance;
05) Adopting capsule-type oil container, it can reduce oil aging to the lowest degree.
06) Amount of local discharged: The apparent discharge amount is less than 80pC under the 1.5 times of rated voltage;
07) Noise: Products of 63MVA and below is lower than 58dB(AN);
08) Power loss: no-load loss is 30% lower than that of IEC standard;
09) Reliability: All in-service product have no damages or oil leakage occurred;
10) Short circuit withstanding: Model SFZ11-50000/132 smoothly passed the short-circuit withstanding test of the national
transformer quality supervision and inspection center and also passed Holland "KEMA" quality Control system.
Main Technical Parameters for 220kv power transformer Level S(F)Z9, S(F)Z10, S(F)Z11 Series
three-phase two winding on-load-tap-changing power transformer:
Rated power
(kVA) |
High Voltage
(kV)
|
H.V Tap range
|
Low Voltage
(kV)
|
Connection Symbol
|
Short-Circuit Impedance
(%)
|
No-load Loss
(kW)
|
On-Load Loss
(kW)
|
No-load Current
(%)
|
9 Type | 10 Type | 11 Type | 9 Type | 10 Type | 11 Type |
31500 | 220
242 | ±8×1.25%
±8×1.5% | 6.3,6.6,
10.5,11,
20,34.5,
35,37,
38.5,66,
69 | YNd11 | 12~14 | 38 | 34 | 30 | 135 | 128 | 128 | 0.7 |
40000 | 45 | 41 | 36 | 157 | 149 | 149 | 0.63 |
50000 | 54 | 49 | 43 | 189 | 180 | 180 | 0.56 |
63000 | 63 | 57 | 50 | 220 | 209 | 209 | 0.56 |
90000 | 80 | 72 | 64 | 288 | 274 | 274 | 0.49 |
120000 | 99 | 89 | 79 | 346 | 329 | 329 | 0.49 |
150000 | 116 | 104 | 93 | 405 | 385 | 385 | 0.42 |
180000 | 135 | 122 | 108 | 468 | 445 | 445 | 0.42 |

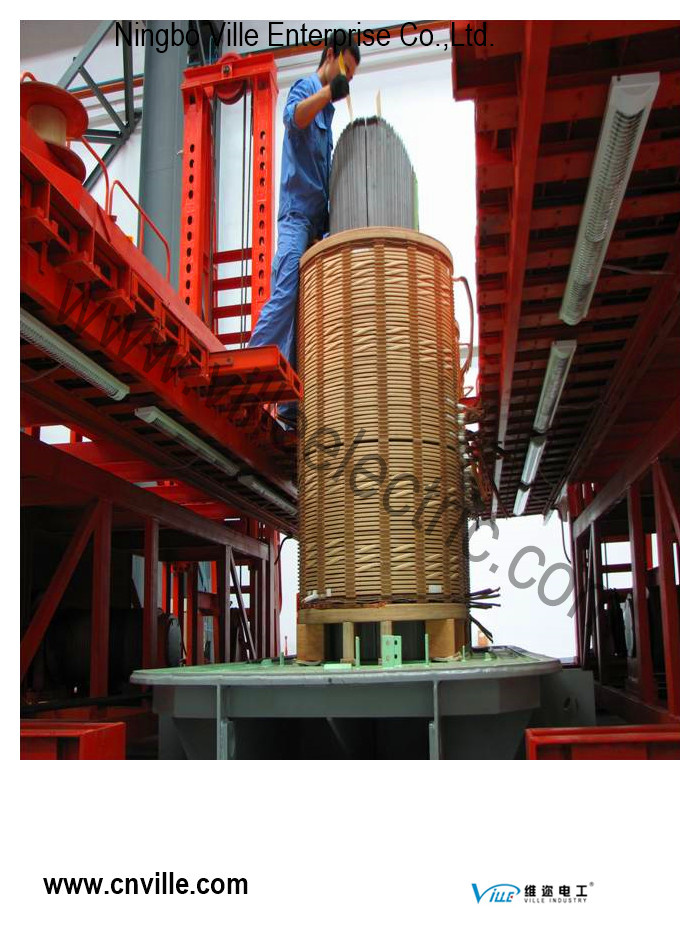

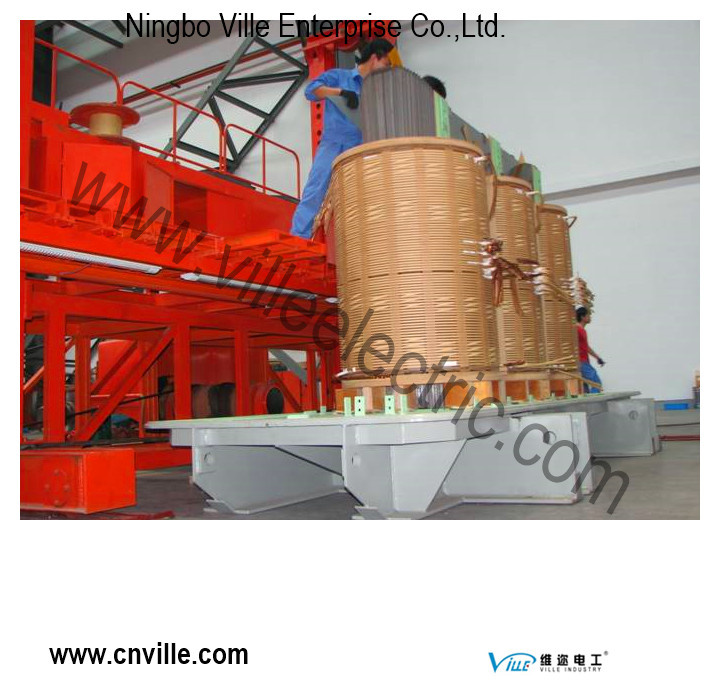

•Coil : The high-voltage(HV) coil adopts an interleaved-continuous structure to improve the voltage characteristics under impact voltage and make voltage evenly distributed. All stays and pads are chamfered to keep highly reliable insulation.
•Core

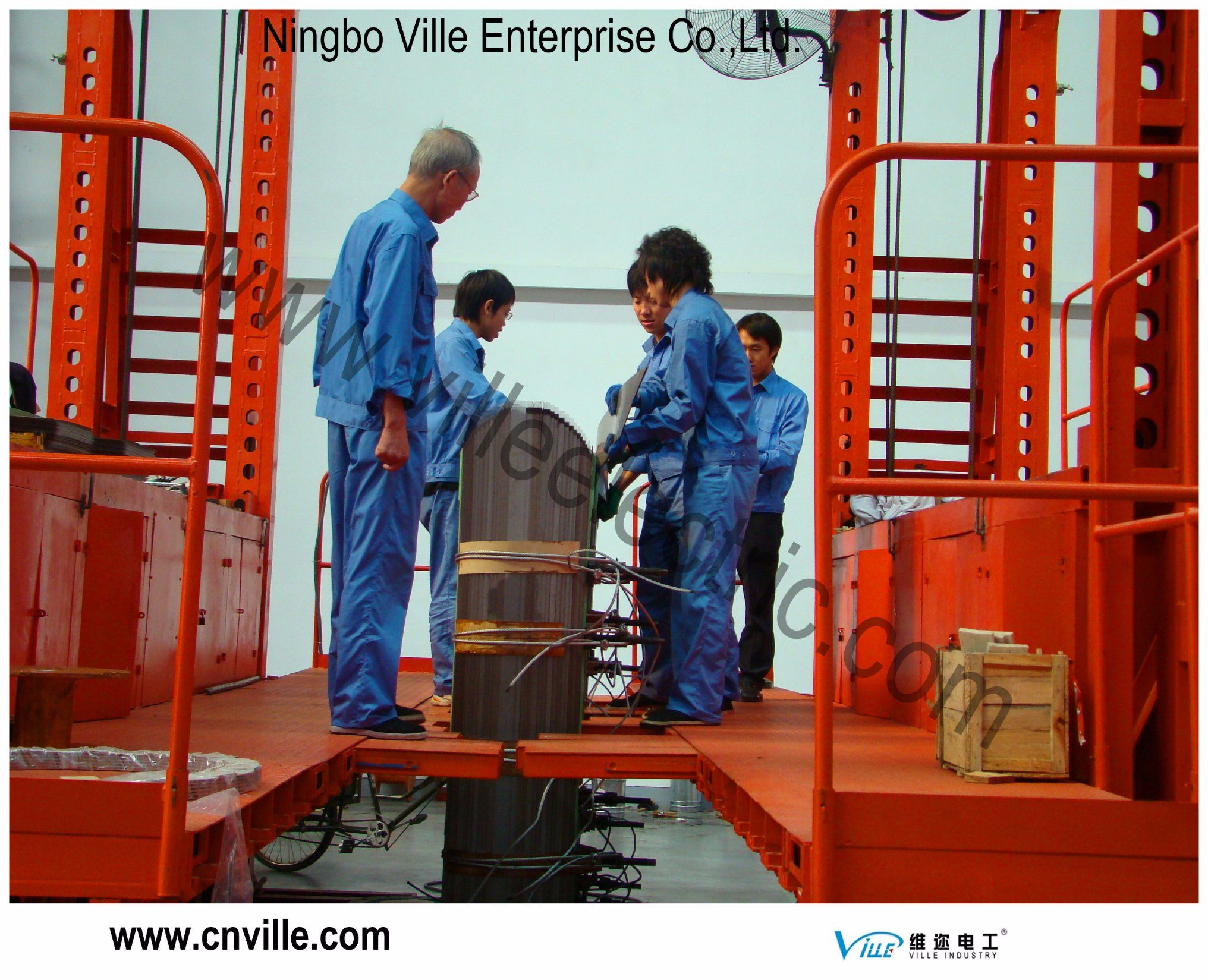

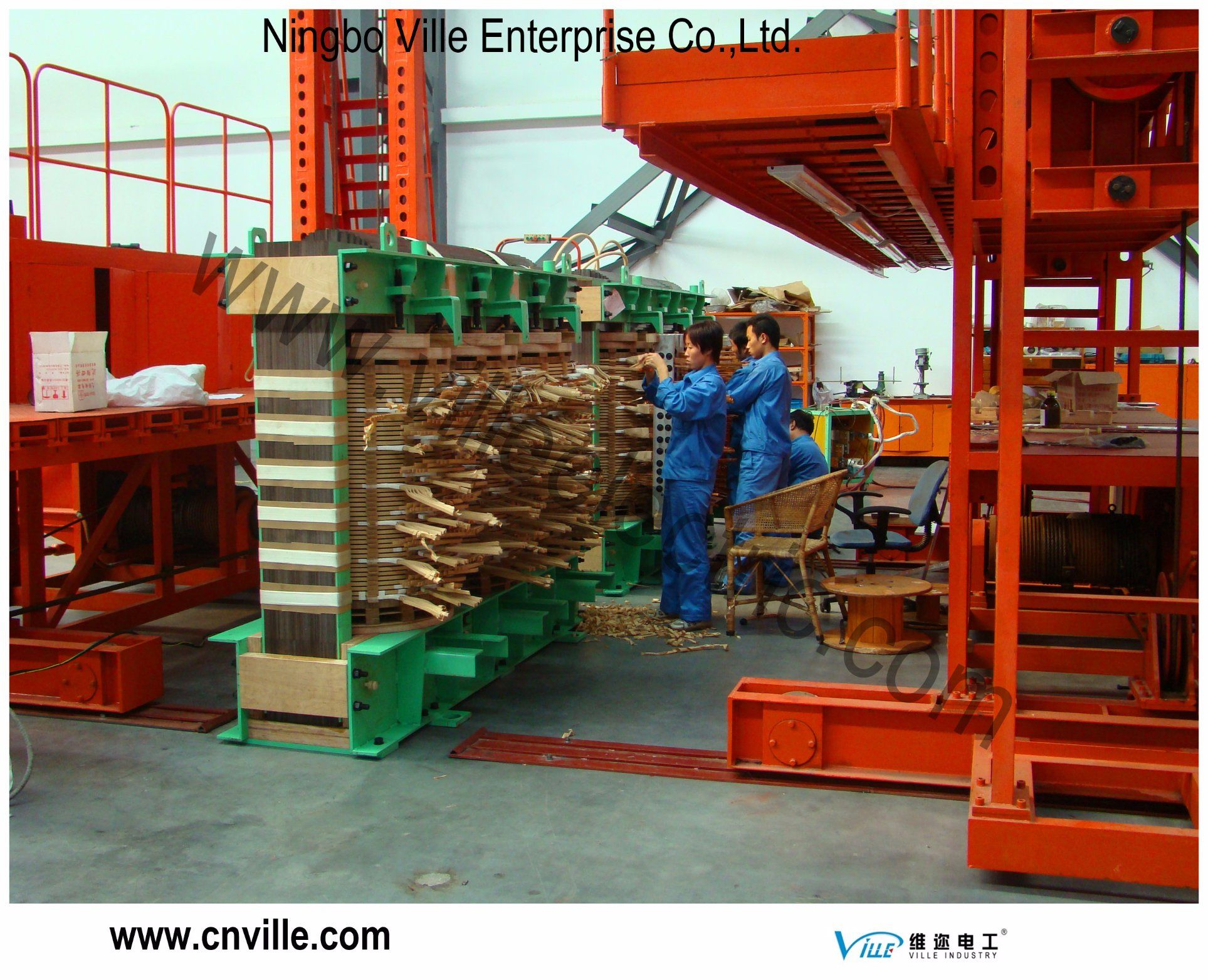

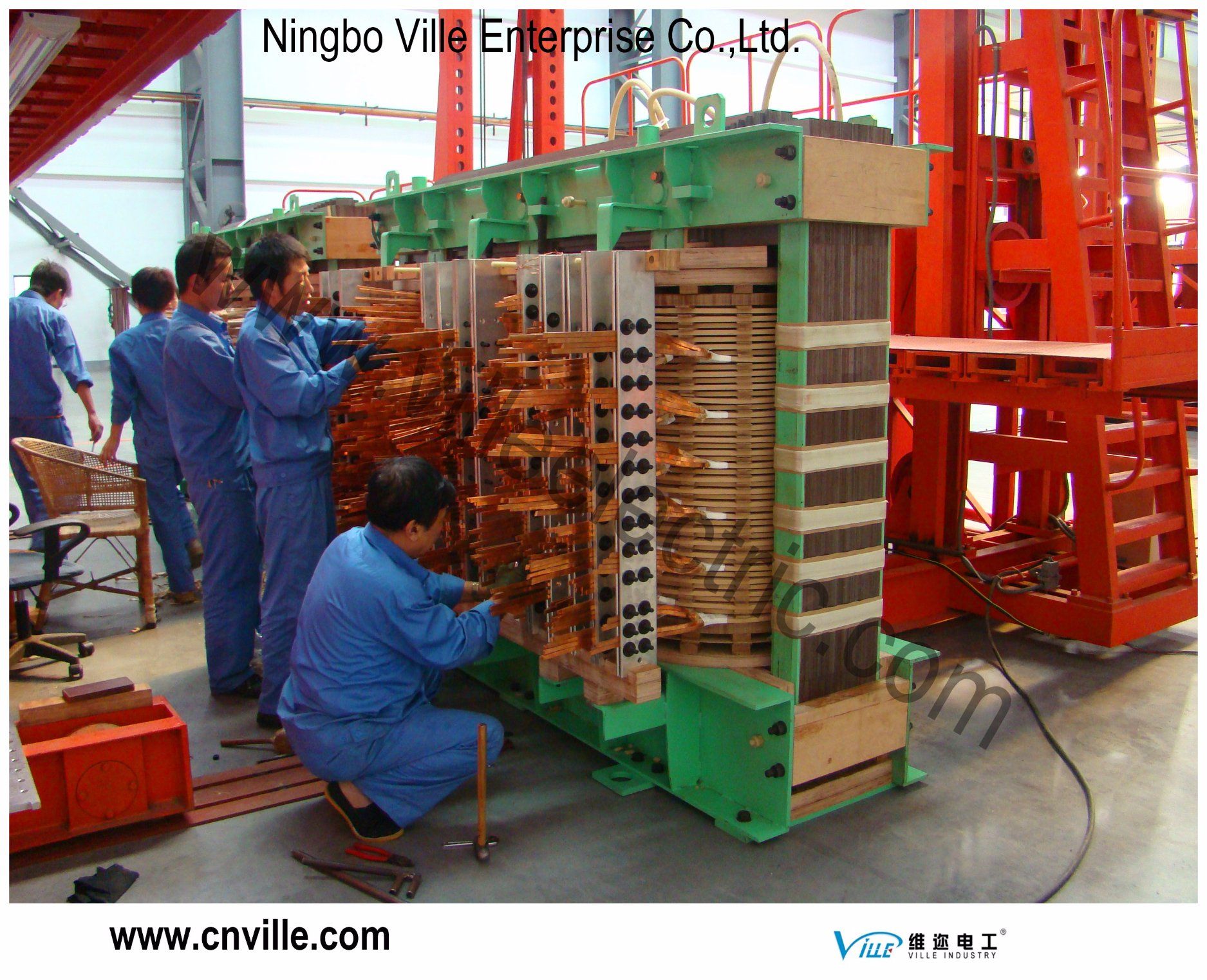

1) The core is made of high-permeable grain-orientated top quality cold-rolled silicon sheet and the material is cut with
advanced Germany Geoge GmbH automatic shear line with the cut burrs controlled within 0.02mm.
2) The silicon sheet fabrication adopts "no-upper yoke-lapped' technology and all lapped joints of the silicon sheet are 45 full-
miters. this effectively improves no-load performance and reduces noises.
Oil tank and accessories
The tank wall adopts wide steel sheet, which will be folded into corrugated structure without splicing , in this way welds are
decreased and mechanical strength is enhanced ; meanwhile , the corrugated wall has diverging effect, and thus plays a
role in decrease of noise.
Ville Electric Company will keep up with the century, the epoch,
Sincerely look forward to your cooperation and win-wimn!
Create brilliant!
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
