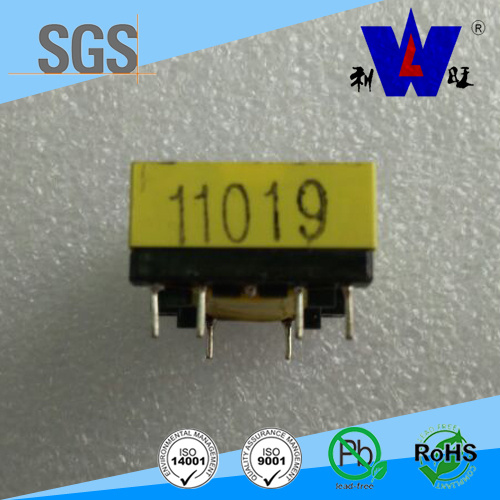

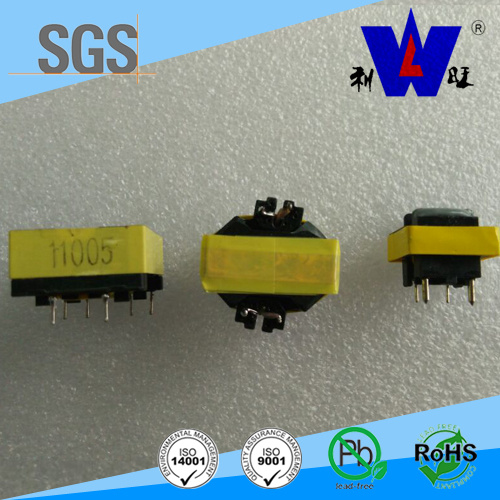

Transformer, High or Low Frequency Transfomer

Markets:	North America,South America,Eastern Europe,Mid East,Eastern Asia
Phase:	Single
Coil:	Shell-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Brand:	Liwang

Product Description

Changzhou Southern Electronic Element Factory Co.,Ltd is located in the city of Changzhou,which has a long history in Jiangsu Province.It is situated in the most active economic area in Yangtze River Delta Centre.The transport is very convenient. Expressway,Fast railways run though it.And it only takes one and half hours to reach Shanghai or Nanjing city.Airplane from here is through to major cities in China.
      Changzhou Southern Electronic Element Factory Co.,Ltd was founded in 1989.After several years' development and effort,it has invested and opened up three subsidiary companies,in Yancheng city, Huai'an city in Jiangsu Province ,and Lang'xi City in Anhui Province respectively.
     The Southern Electronic Element Factory Co.,Ltd now is in the course of developing into the Southern Group,The company now possess all kinds of professional technicians of over a hundred.It occupies an area of 50,000 Square Meter,and the area of structure is 30,000 Square Meter.
   Transformer technical parameters




The n is called the voltage ratio (the ratio of the n<1), the N1>N2, the V1>V2, the transformer is the buck transformer, the other is the boost transformer.

Efficiency of B. transformer:

At the rated power, the transformer's output power and the ratio of the input power, called the transformer's efficiency, is

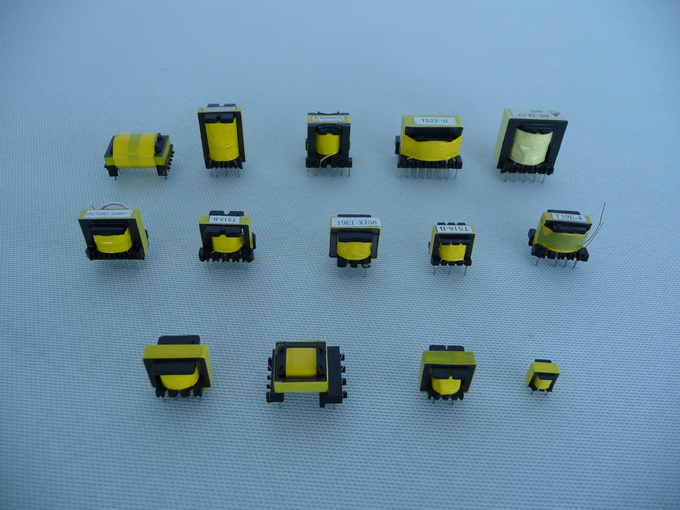

Transformer	Application
EE,EI	Power supply,charging
ER	Power supply,charging
EFD	Power supply,
Toroidal	Power supply

ETA = x100%

In 7 / as the efficiency of the transformer; P1 power input, P2 output power.

When the transformer output power of P2 is equal to the input power P1 and efficiency ETA equal to 100%, transformer, will not generate any loss. But in fact, the transformer is not. When the total transmission power transformer to generate losses, such losses mainly copper loss and iron loss.

Copper loss refers to the loss caused by the transformer coil resistance. When the current through the coil resistance heating, the part of the electrical can is changed into heat and wear and tear. As the general coil wound by copper wire with insulation, therefore it is called for the copper loss.
