| Prod Model: |
Transformer led driver |
| Output Current (DC): |
300mA+/-5% |
| Output Voltage (DC): |
3V-12V |
| Input/Output Type: |
Step-Down Type |
| Protection: |
Current Limiting, Over-Voltage, Over-Load, Short C |
| Safety Standard: |
UL1012,IP67 or IP20, En61347, IEC 61347.2.13:2013, |
| EMC Standard: |
En55015, Cispr 15,En61000, En61547 |
| Lifespan: |
>50000 Hours |
| No Load Power: |
<1W |
| International Protection: |
IP65 |
| Input Frequency: |
50/60Hz |
| Usage: |
Light |
| Output Type: |
Dual |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
Conventional Step-down Transformer |
| Brand: |
Rigao |
Product Description

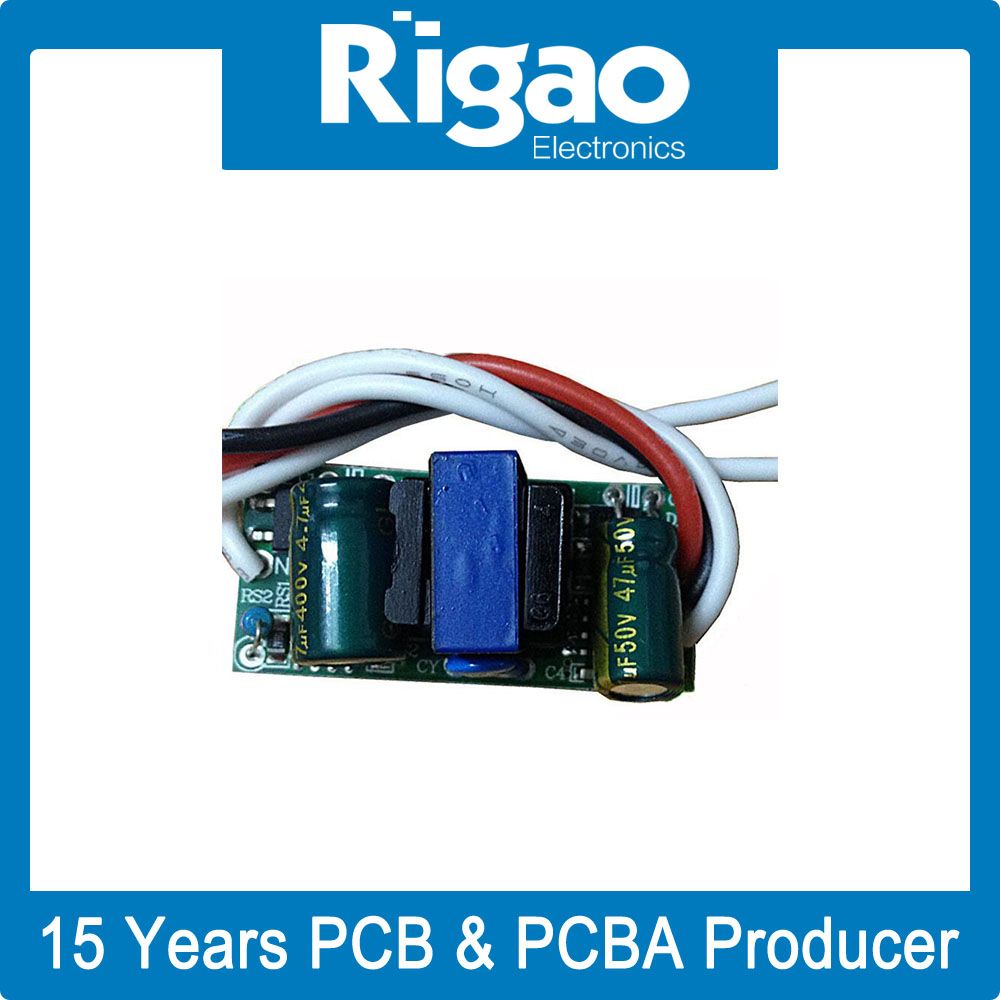

Transformer led driver for led panel light
Products Description:
Transformer led driver for led panel light
Features:
AC 85-265V
Constant Current design
Class 2 Power Supply Unit
Fully Isolated Plastic Case
2 years Warranty
Protections: Over Current / Short Circuit/Over Temperature
CE IP65 Certification
Specifications:
| Output mode | constant current |
| Output current (DC) | 300mA+/-5% |
| Output voltage (DC) | 3V-12V |
| Input/output Type | Step-down Type |
| Output Power | 1W-3W |
| Modulation Method | PWM |
| Input Voltage (AC) | AC85-265V |
| Power Factor | >0.75 |
| Efficiency | >75% |
| Leakage Current | <2.5mA/240V AC |
| Operating Temperature | -40ºC~+80ºC |
| Working Humidity | 10%~90%RH |
| Protection | Current Limiting, Over-voltage, Over-load, Short Circuit, Over Temperature |
| Safety Standard | UL1012,IP67 or IP20, EN61347, IEC 61347.2.13:2013, 61347.1 |
| EMC Standard | EN55015, CISPR 15,EN61000, EN61547 |
| Lifespan | >50000 Hours |
| No Load Power | <1W |
| International protection | IP65 |
| Installation position | Outer |
| Input Frequency | 50/60HZ |
Company introduce :
We Rigao Electronics established in the year 2008, at ShenZhen (GuangDong, China),we are a prominent name engaged in manufacturing and Supplying a comprehensive array of Metal Core PCB, MC PCB, LED PCB, Metal core printed circuit boards, PTH PCB, Double side PCB, Single Side PCB, Circuit Board, Printed Circuit Board ect. We are also Providing Services like led driver PCB Design Service, led driver Assembly Service, enclosure Assembly soldering job work & CADCAM for PCB Designing Service. Our offered product range is precisely Designed and manufactured using top-notch quality raw material and sophisticated technology in adherence to international quality standards. The raw material which is used for manufacturing our entire range of products is procured from certified vendors of the industry. These offered products are widely used in various industries and appreciated for compact design, longer functionality, superior finish and reliability. In addition to this, we offer our product range in various specifications and can be customized as per the specific requirement of clients at affordable prices.
Frequently Asked Questions FAQ:
Q1: Can I have led pcb samples to test?
A: Yes,we are pleased to supply module samples to test and check quality,mixed sample order is available. Please note buyer should pay for shipping cost.
Q2:Can you design led driver and make files for us?
A:yes,We have a professional drawing engineers' team to design led driver power supply for led light that you can trust.
Q3:How about your after-sales service?
A:After you get our goods, if any quality problems of Transformer power supply for led light, pls directly contact with sales who are in charge of. we will replace defective ones for you at once.
Q4: If I want cheaper quality, can you produce?
A: Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.
Q5: If I order big quantity, what's the good price?
A: Please send the details inquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation of specific led driver to you as soon as possible.
Q6:How can you know the processing about led driver order?
A: Each Customer will have a sale to contact with you. Our working hours: AM 9:00-PM 6:00(Beijing Time) from Monday to Friday. We will reply your email as soon as quickly during our working time. And you also could contact with our sales by cellphone if urgent.
Contact us for more info about Transformer led driver for led panel light and cooperation:
