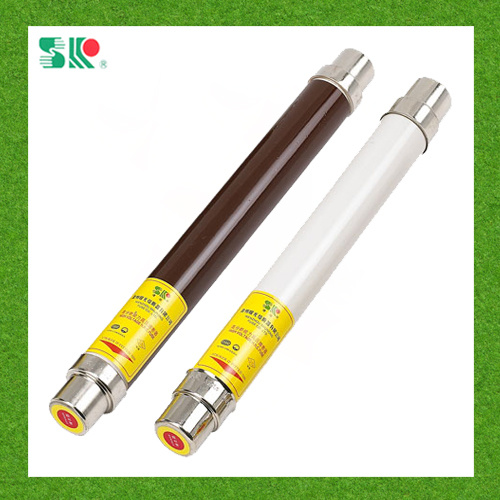

Transformer Protection 24kv High Voltage HRC Fuse

Prod Model:	XRNT-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage: 24kv:	Insert Installation and Bus-Bar Installation
Breaking Capacity:	High
Usaga:	Electronic
Standard:	IEC282-1
Type:	High Voltage Current-Limiting Fuse
Shape:	Tubular Structure
Fusing Speed:	Quick
Fusing Device:	Striker

Product Description

Product Specification/Models
Data of technical
A, XRNT-24----32A
Rated voltage: 24KV
Rated current of fuse: 32A
Rated current of melter: 1, 2, 4, 6.3, 10, 16, 20, 25, 31.5, 32 A
Dimension: 442*51mm
B, XRNT-24---100A
Rated voltage: 24KV
Rated current of fuse: 100A
Rated current of melter: 40, 50, 63, 71, 80, 100 A
Dimension: 442*76mm
C, XRNT-24----200A
Rated voltage: 24KV
Rated current of fuse: 200A
Rated current of melter: 125, 160, 200 A
Dimension: 442*88mm
Other Information
Notes for ordering
Please offer the followings while ordering:
A, Type and name of products;
B, Rated voltage and rated current;
C, Breaking current and quantity;
D, Please indicate if details of special requests while ordering.
