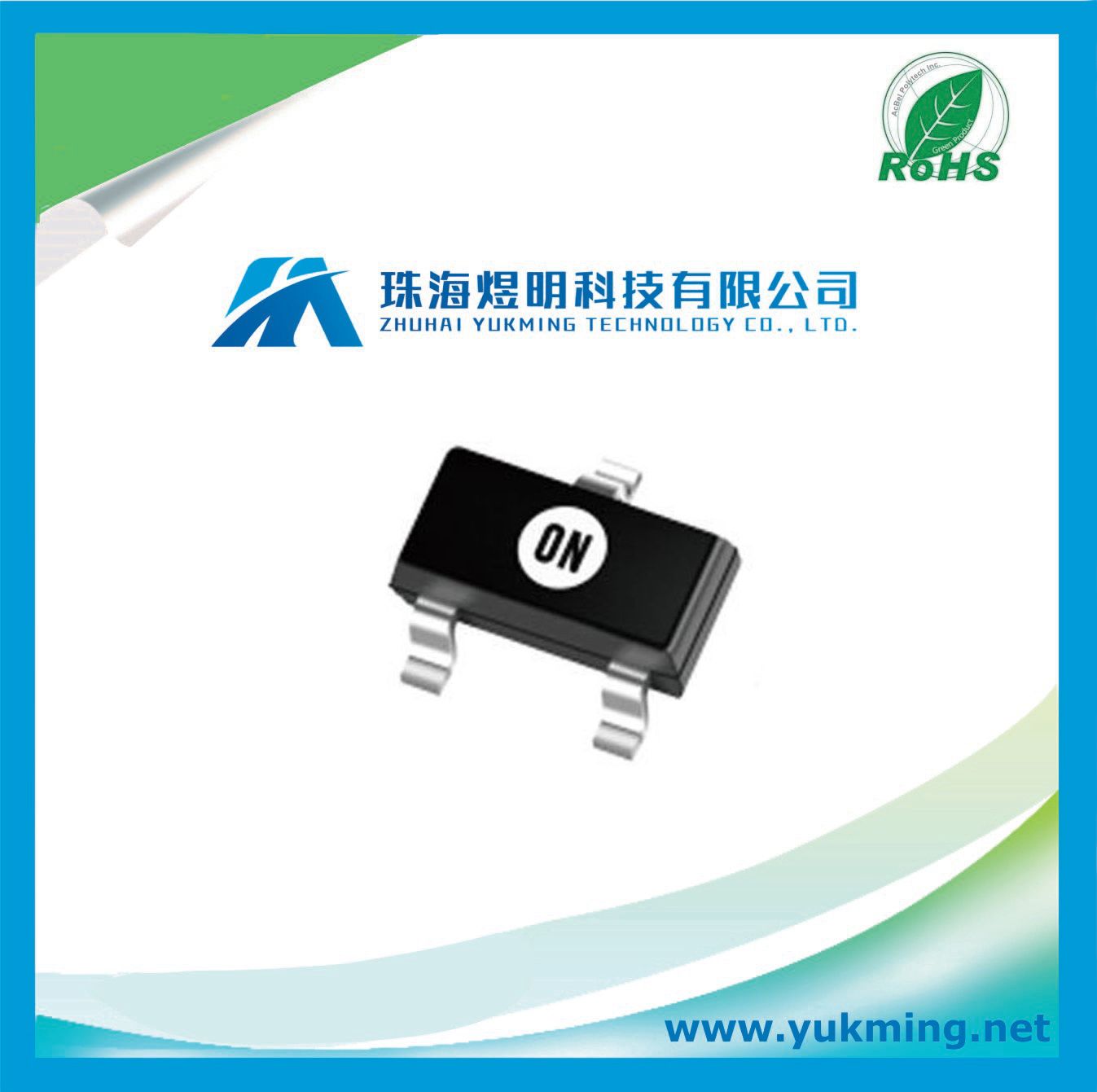

Transistor Bss123lt1g of N-Channel Power Mosfet

Name: Transistor Bss123lt1g of N-Channel Power Mosfet
Brand: all-electronics-online.com
SKU: 796896425
Availability: InStock
Rating: 4.3 (43 reviews)

Price:	US $ 0.0456/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BSS123LT1G

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
ON Semiconductor

PRODUCT CATEGORY
MOSFET

DESCRIPTION
Trans MOSFET N-CH 100V 0.17A 3-Pin SOT-23 T/R

Increase the current or voltage in your circuit with this BSS123LT1G power MOSFET from ON Semiconductor. Its maximum power dissipation is 225 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This N channel MOSFET transistor operates in enhancement mode. This MOSFET transistor has an operating temperature range of -55 °C to 150 °C.

Features
• Pb−Free Packages are Available

Specifications
EU RoHS Compliant
Product Category Power MOSFET
Channel Mode Enhancement
Channel Type N
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 100
Maximum Gate Source Voltage (V) ±20
Maximum Continuous Drain Current (A) 0.17
Maximum Drain Source Resistance (mOhm) 6000@10V
Typical Input Capacitance @ Vds (pF) 20@25V
Maximum Power Dissipation (mW) 225
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Temperature Grade Military
Mounting Surface Mount
Package Height (mm) 0.94
Package Length (mm) 2.9
Package Width (mm) 1.3
PCB changed 3
Standard Package Name SOT
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
