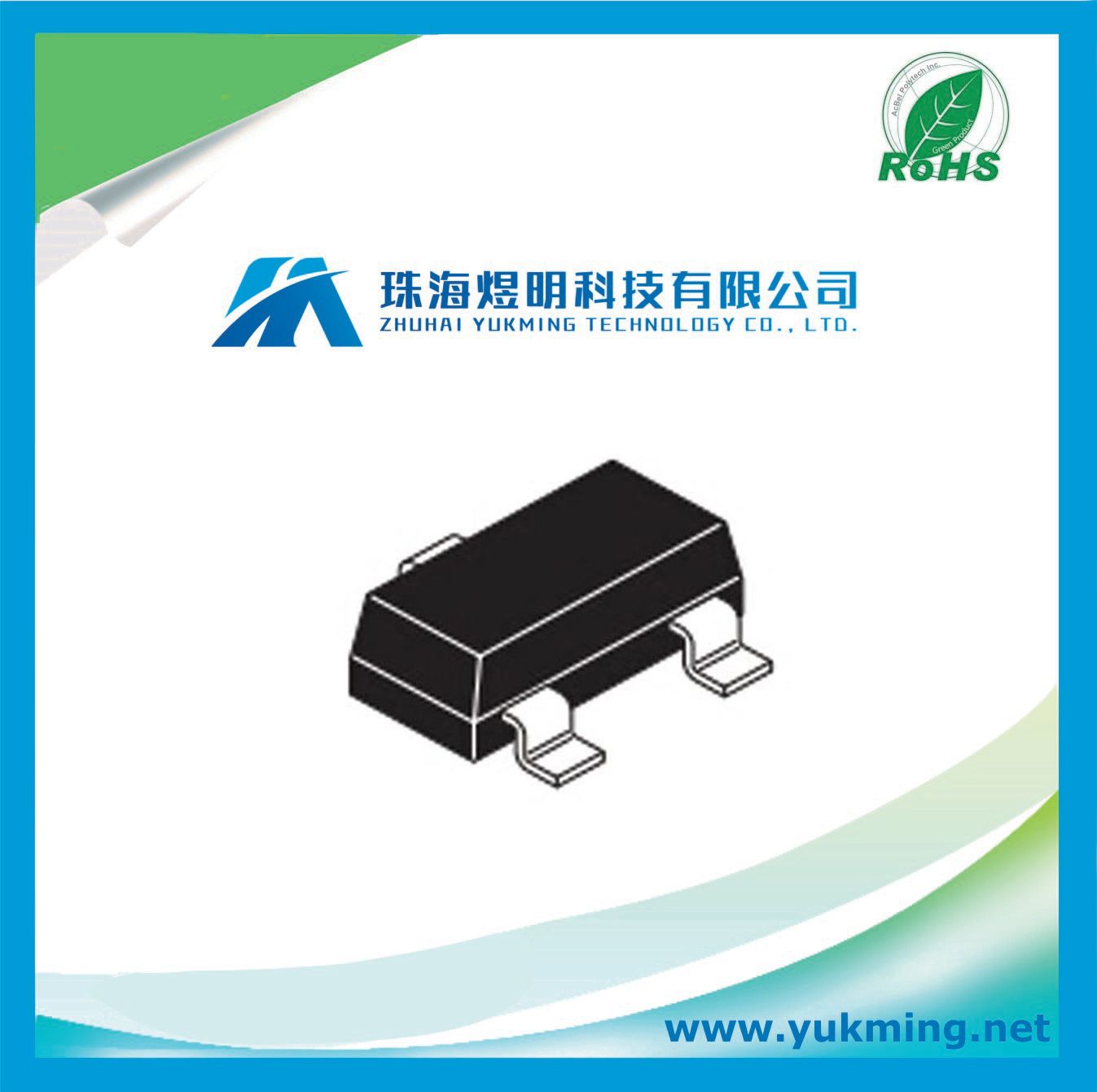

Transistor Fmmt491 of Electronic Component for PCB Assembly

Name: Transistor Fmmt491 of Electronic Component for PCB Assembly
Brand: all-electronics-online.com
SKU: 796322115
Availability: InStock
Rating: 4.6 (43 reviews)

Price:	US $ 0.03/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FMMT491

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Diodes Incorporated

PRODUCT CATEGORY
GP BJT

DESCRIPTION
Trans GP BJT NPN 40V 1A Automotive 3-Pin SOT-23 T/R

Summary
BVCEO > 60V
BVEBO > 7V
IC(cont) = 1A
PD = 500mW
RCE(sat) = 160m at 1A
Complementary part number : FMMT591
Description
Medium power planar NPN bipolar transistor.

Features
• VCE(sat) maximum specification improvement
• Reverse blocking specification improvement

Applications
• MOSFET gate driving
• Power switches
• Motor control

Specifications
EU RoHS Compliant
Type NPN
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 40
Maximum Emitter Base Voltage (V) 7
Maximum Collector Emitter Voltage (V) 40
Maximum DC Collector Current (A) 1
Maximum Power Dissipation (mW) 500
Minimum DC Current Gain 300@1mA@5V|300@500mA@5V|200@1A@5V|35@2A@5V
Maximum Transition Frequency (MHz) 150(Min)
Product Category Bipolar Small Signal
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Mounting Surface Mount

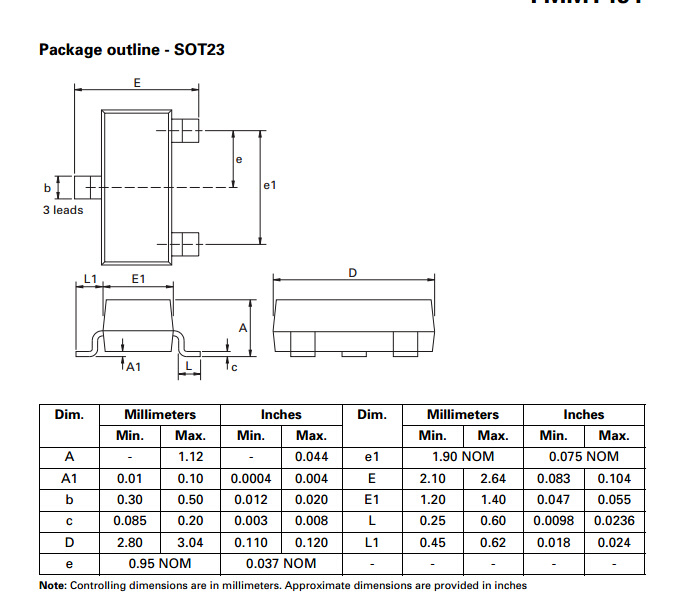

Package Height (mm) 1.02(Max)
Package Length (mm) 3.04(Max)
Package Width (mm) 1.4(Max)
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
