Transistor of Hexfet Power Mosfet Irfhs9301trpbf Electronic Component

Name: Transistor of Hexfet Power Mosfet Irfhs9301trpbf Electronic Component
Brand: all-electronics-online.com
SKU: 796882665
Availability: InStock
Rating: 4.5 (113 reviews)

Price:	US $ 0.63/Piece
Min Order:	60/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IRFHS9301TRPBF
Technology:	Hexfet
Channel Mode:	Enhancement
Channel Type:	P
Number Of Elements Per Chip:	1
Maximum Drain Source Voltage (V):	30
Maximum Gate Source Voltage (V):	+/-20
Maximum Continuous Drain Current (a):	6
Maximum Power Dissipation (MW):	2100

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
International Rectifier

PRODUCT CATEGORY
MOSFET

DESCRIPTION

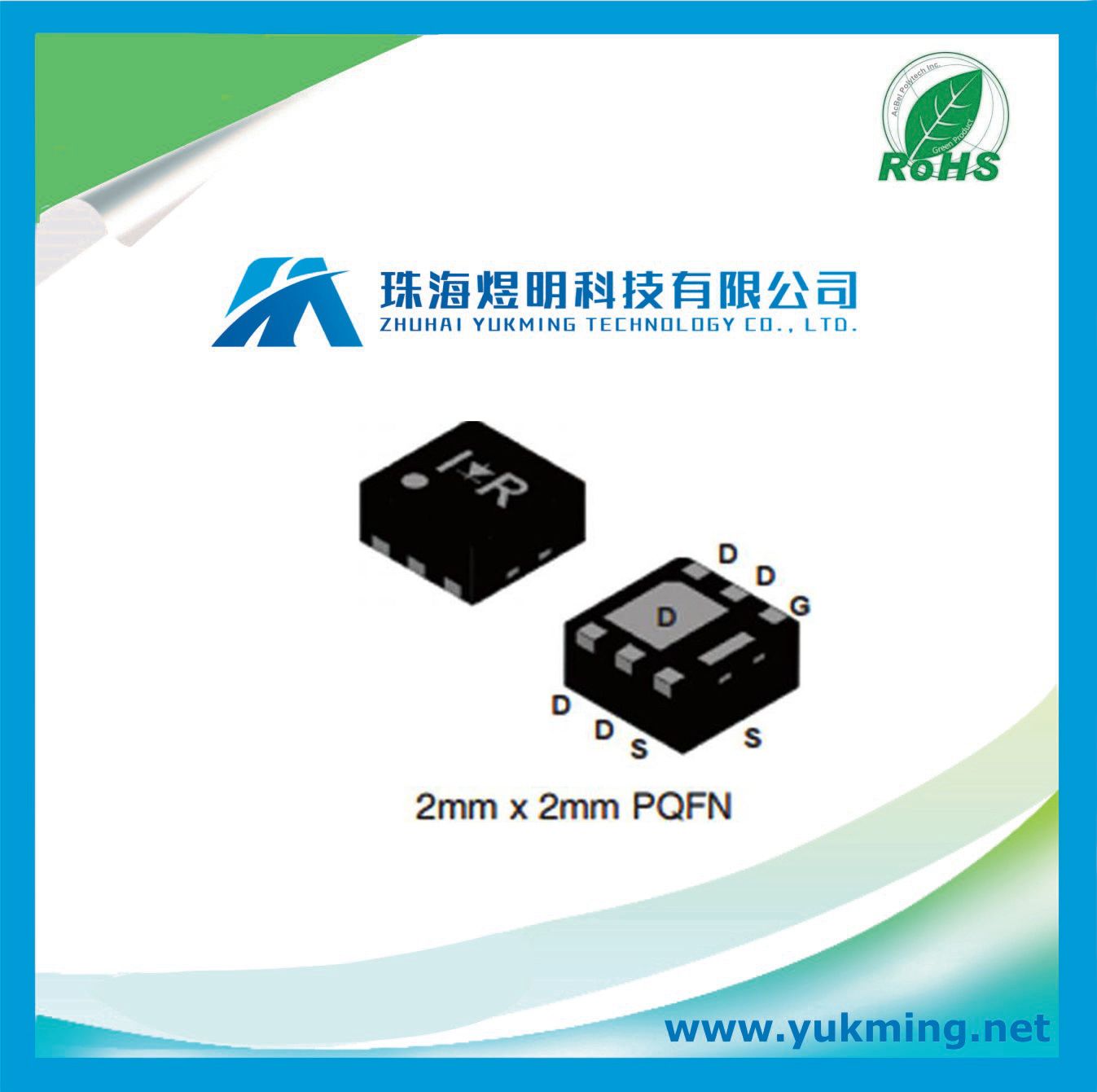

Trans MOSFET P-CH 30V 6A 6-Pin PQFN EP T/R

Amplify electronic signals and switch between them with the help of International Rectifier's IRFHS9301TRPBF power MOSFET. Its maximum power dissipation is 2100 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This MOSFET transistor has an operating temperature range of -55 °C to 150 °C. This P channel MOSFET transistor operates in enhancement mode. This device utilizes HEXFET technology.

Features
Low R_DSon (≤ 37mΩ)
Low Thermal Resistance to PCB (≤ 13°C/W)
Low Profile (≤ 1.0 mm)
Compatible with Existing Surface Mount Techniques
RoHS Compliant Containing no Lead, no Bromide and no Halogen
MSL1, Consumer Qualification

Applications
Charge and Discharge Switch for Battery Application
System/load switch

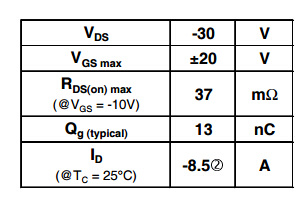

Specifications
EU RoHS Compliant
Product Category Power MOSFET
Technology HEXFET
Channel Mode Enhancement
Channel Type P
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 30
Maximum Gate Source Voltage (V) ±20
Maximum Continuous Drain Current (A) 6
Maximum Drain Source Resistance (mOhm) 37@10V
Typical Gate Charge @ Vgs (nC) [email protected]|13@10V
Typical Gate Charge @ 10V (nC) 13
Typical Input Capacitance @ Vds (pF) 580@25V
Maximum Power Dissipation (mW) 2100
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Mounting Surface Mount
Package Height (mm) 0.88
Package Length (mm) 2
Package Width (mm) 2
PCB changed 6
Standard Package Name QFN
Supplier Package PQFN EP
Pin Count 6
Lead Shape No Lead
