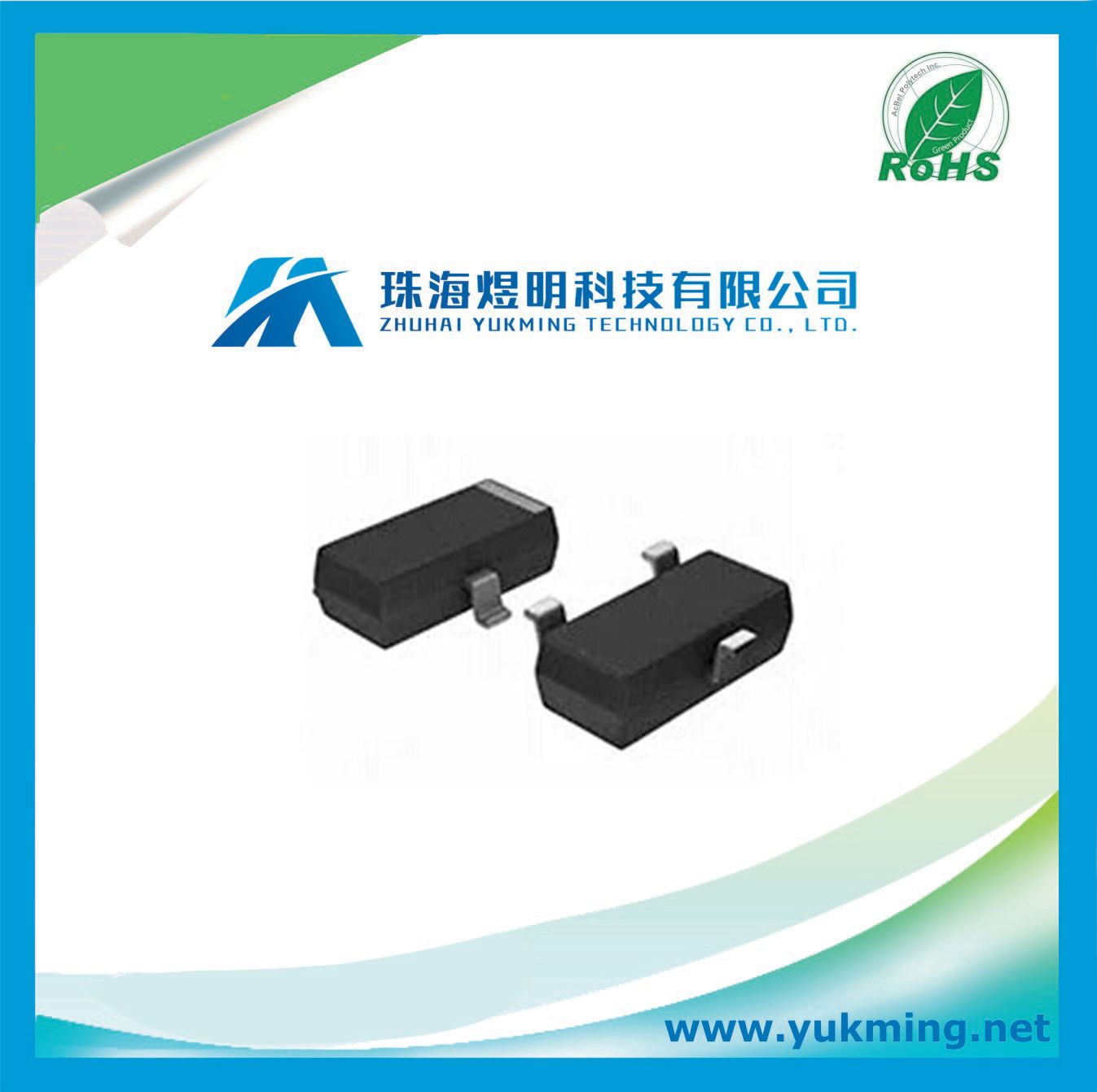

Transistor of Mosfet N-CH 30V 5.7A Electronic Component

Name: Transistor of Mosfet N-CH 30V 5.7A Electronic Component
Brand: all-electronics-online.com
SKU: 796869825
Availability: InStock
Rating: 4.7 (41 reviews)

Price:	US $ 0.39/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AO3400

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

Features
V_DS(V) = 30V
I_D = 5.8 A (V_GS = 10V)

General Description
The AO3400 uses advanced trench technology to
provide excellent RDS(ON), low gate charge and
operation with gate voltages as low as 2.5V. This
device is suitable for use as a load switch or in PWM
applications. Standard Product AO3400 is Pb-free
(meets ROHS & Sony 259 specifications). AO3400L
is a Green Product ordering option. AO3400 and
AO3400L are electrically identical.

Category	Discrete Semiconductor Products
Family	Transistors - FETs, MOSFETs - Single
Manufacturer	Alpha & Omega Semiconductor Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	MOSFET N-Channel, Metal Oxide
FET Feature	Logic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5.7A (Ta)
Rds On (Max) @ Id, Vgs	26.5 mOhm @ 5.7A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) @ Vgs	7nC @ 4.5V
Input Capacitance (Ciss) @ Vds	630pF @ 15V
Power - Max	1.4W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3L

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
