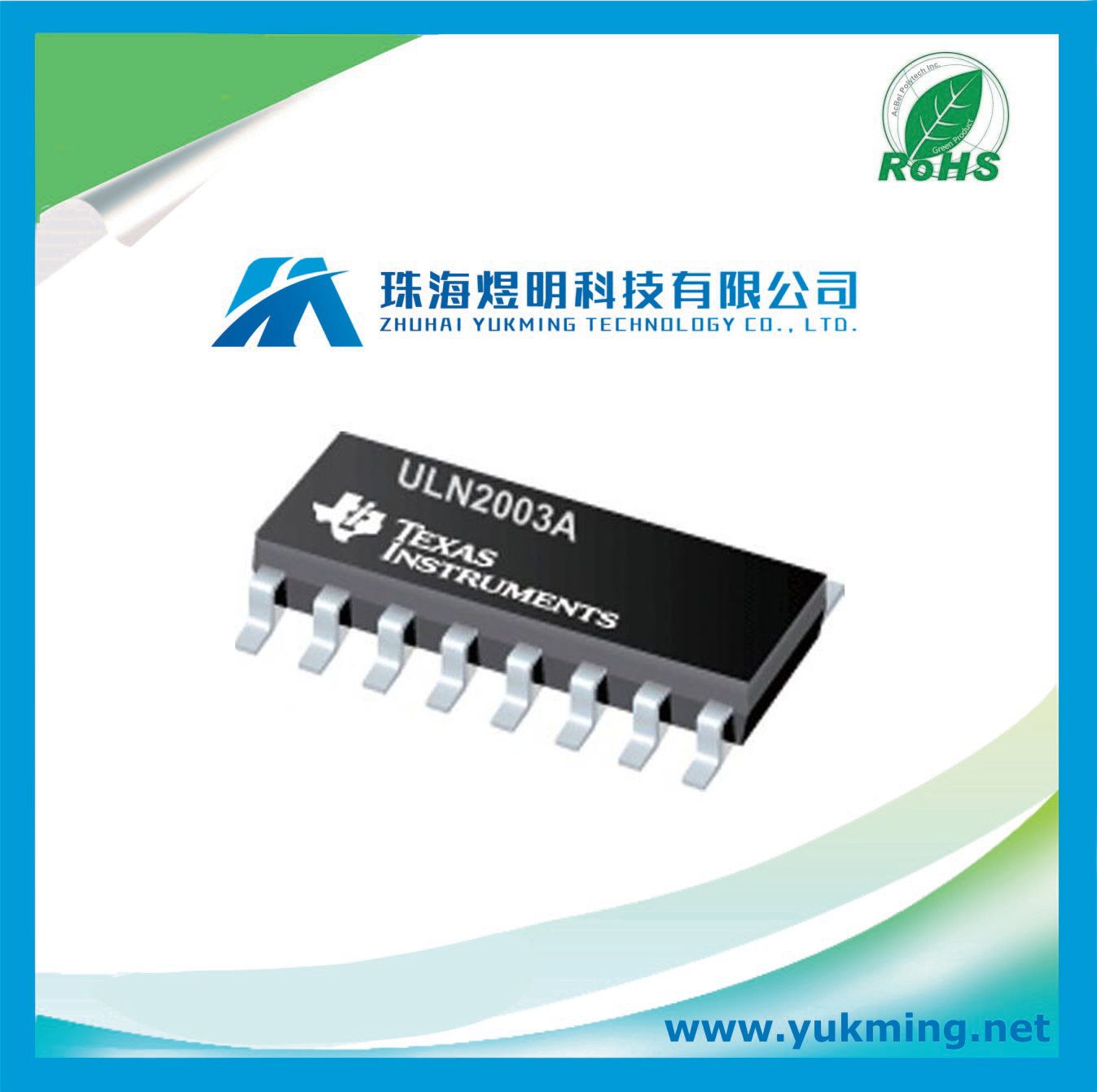

Transistor Uln2003an of Electronic Componenttexas Instruments

Name: Transistor Uln2003an of Electronic Componenttexas Instruments
Brand: all-electronics-online.com
SKU: 796751455
Availability: InStock
Rating: 5 (75 reviews)

Price:	US $ 0.2/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ULN2003AN
Number Of Elements Per Chip:	7
Maximum Collector Emitter Voltage (V):	50
Maximum Continuous DC Collector Current:	0.5

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Darlington BJT

DESCRIPTION
Trans Darlington NPN 50V 0.5A 16-Pin PDIP Tube

Texas Instruments brings you their latest NPN ULN2003AN Darlington transistor, a component that can easily provide you with much higher current gain values. This product's maximum continuous DC collector current is 0.5 A. It has a maximum collector emitter saturation voltage of 1.1@100mA|1.3@200mA|1.6@350mA V. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This Darlington transistor array has an operating temperature range of -20 °C to 70 °C. It has a maximum collector emitter voltage of 50 V.

Specifications
EU RoHS Compliant
Type NPN
Number of Elements per Chip 7
Maximum Collector Emitter Voltage (V) 50
Maximum Continuous DC Collector Current (A) 0.5
Maximum Collector Emitter Saturation Voltage(V) 1.1@100mA|1.3@200mA|1.6@350mA
Minimum Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 70
Packaging Tube
Temperature Grade Commercial
Mounting Through Hole

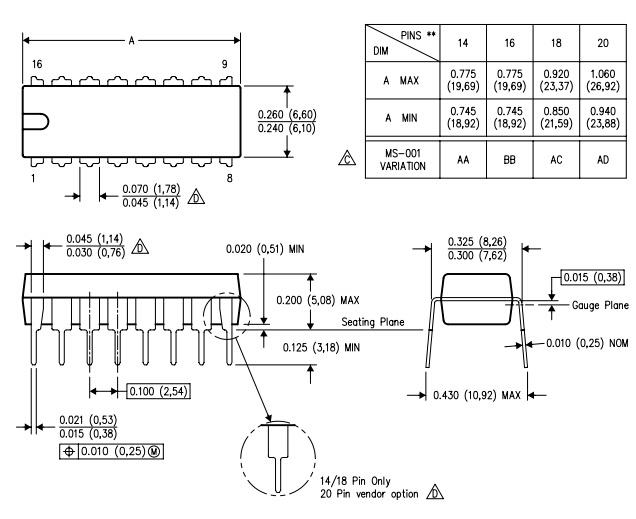

Package Height (mm) 5.08(Max) - 0.51(Min)
Package Length (mm) 19.69(Max)
Package Width (mm) 6.6(Max)
PCB changed 16
Standard Package Name DIP
Supplier Package PDIP
Pin Count 16
Lead Shape Through Hole

Features
• 500-mA-Rated Collector Current (Single Output)
• High-Voltage Outputs: 50 V
• Output Clamp Diodes
• Inputs Compatible With Various Types of Logic
• Relay-Driver Applications

Applications
• Relay Drivers
• Stepper and DC Brushed Motor Drivers
• Lamp Drivers
• Display Drivers (LED and Gas Discharge)
• Line Drivers
• Logic Buffers
