Yueqing Box Electric Co., Ltd. >> Transparent Door IP65 Panel Box

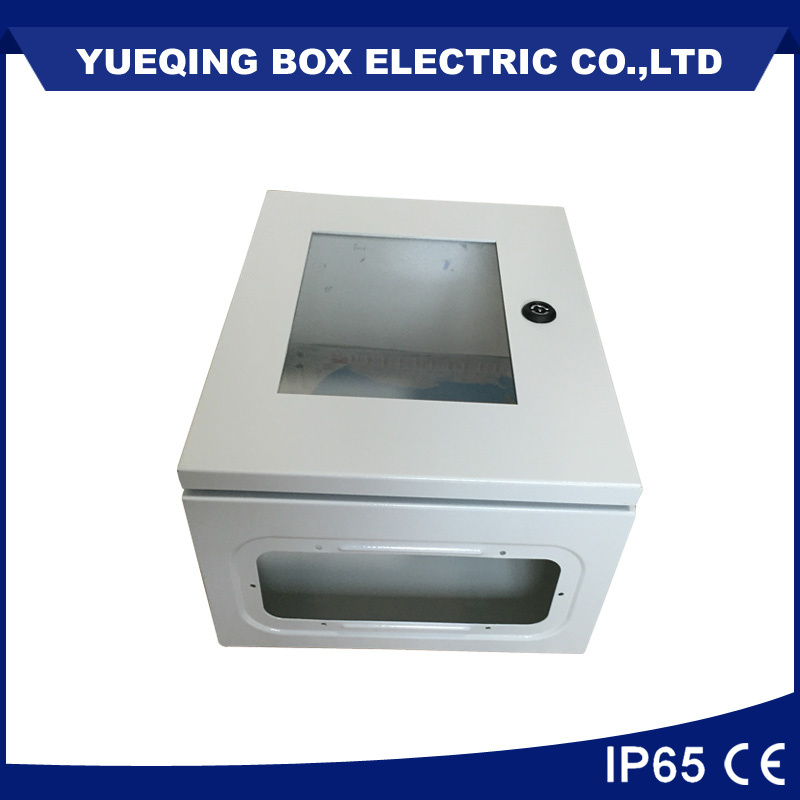

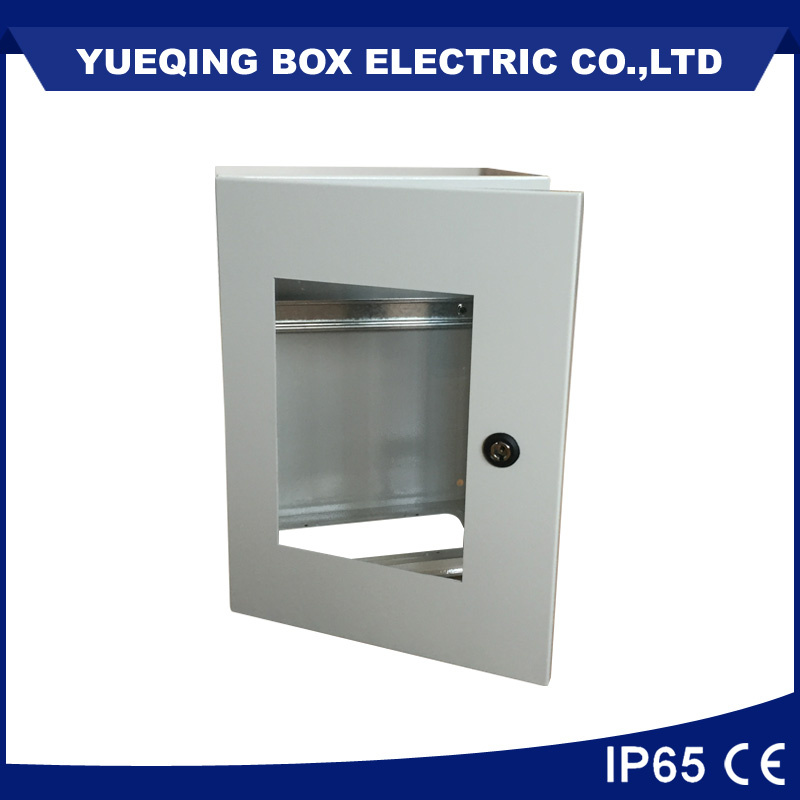

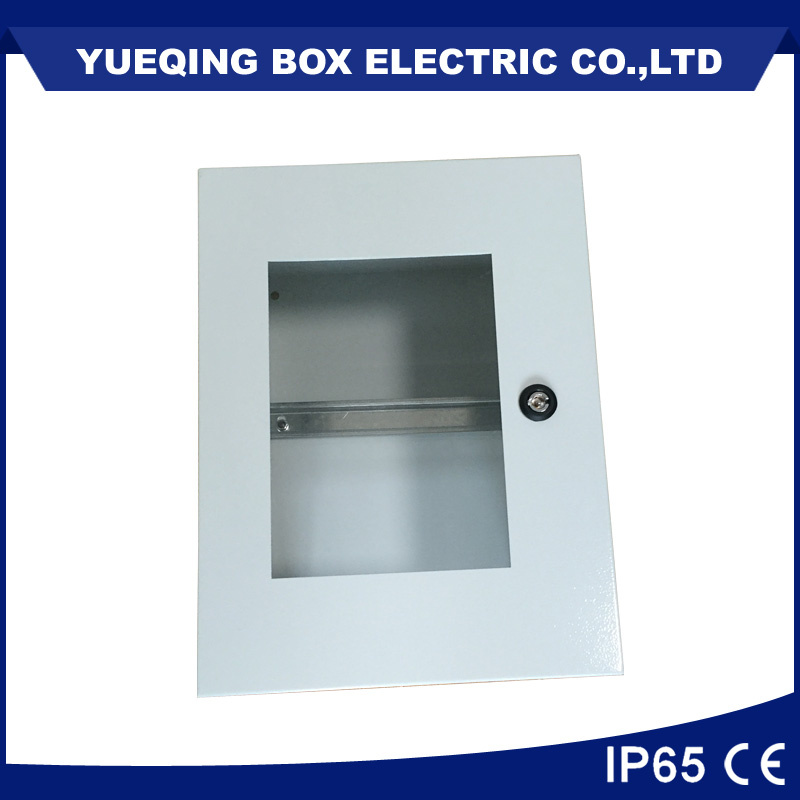

Transparent Door IP65 Panel Box

Transparent Door IP65 Panel Box
Price: US $ 15/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: MEP403020A
Thickness: 1.2/1.2/2.0
Material: Cold Steel
Color: Ral7035 or Ral7032
M.P: Ral2004 or Galvanized Steel
Door: Plexiglass
Type: Lighting
Structure: Protection
Certification: Ce
Size: 400*300*200
Shell Protection Grade: IP65
Brand: Yqbox

Product Description

plexiglass door enclosures

Standard configuration:
Enclosure and door
Mounting plate
Bar Lock
Polyurethane door seal
Cable gland plate and gasket

Degree of protection: IP66 to E N60529

External mechanical impact resistance: I K10

Surface treatment:
Textrured epoxy polyester powder coating



Material and color:
Body and front door: Cold roll steel to paint in RAL7032
Mounting plate : Galvanized steel or plain steel to paint in RAL2004 smooth finish


Model

H (mm)

W(mm)

D(mm)

MEP403015

400

300

150

MEP403020

400

300

200

MEP404020

400

400

200

MEP503020

500

300

200

MEP503025

500

300

250

MEP504020

500

400

200

MEP504025

500

400

250

MEP504030

500

400

300

MEP604020

600

400

200

MEP604025

600

400

250

MEP605020

600

500

200

MEP605025

600

500

250

MEP606025

600

600

250

MEP606030

600

600

300

MEP705025

700

500

250

MEP705030

700

500

300

MEP806025

800

600

250

MEP806030

800

600

300

MEP1006025

1000

600

250

MEP1006030

1000

600

300

MEP1008025

1000

800

250

MEP1008030

1000

800

300

MEP1208025

1200

800

250












Yueqing Box Electric Co., Ltd is established in 2000, situated on a modern industrial park in Yueqing Zhejiang. Our's company away from the qiligang wenzhou port only 500meter.

Our company mainly manufacture wall mounting enclosure, stainless steel enclosure, junction box, telephone box, control desk, floor standing cabinet and so on.

Non-standard products can be dsigned and custom to meet users' special requirements.

The company currently production area of 2, 000m2 and 30 employee. With the most efficient state-of-the art production machinery, and supported by a highly qualified work force and experienced engineers that ensure the highest quality enter into international markets.

Through the past 10 years efforts, we have estbilished a strong and loyal mutually beneficial partnership with customers from Europe, south east Asia, Middle East, south amercia, and Africa.

Just tell us your requirements, we will brng the best to your business!
