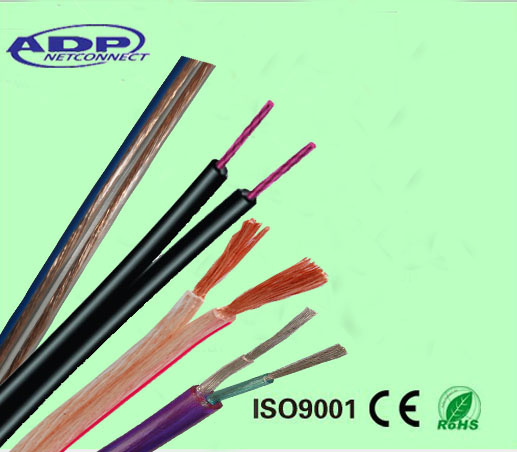

Transparent Flexible High End Speaker Cable

Prod Model:	flexible speaker cable
Shape:	Figure 8
Standard:	Tia/Eia568b.2, IEC/ISO11801
Length And Packing:	100m/Roll, 200m/Roll, 305m/Roll
Core Wire:	Flexible Multi Core
Application:	iPod
Certification:	CCC
Type:	Parallel Twin
Color:	Transparent, Varius Color Available
Species:	Speaker Cable
Brand:	ADP, or Customized

Product Description

Transparent Flexible High End Speaker Cable
1.Introduction

Twin Flat Speaker Cable is for the connection of loudspeaker, home theater or audio system. And for connecting power amplifier and broadcasting systems, transmitting the audio signals amplified by the amplifier.

2.Specification :

Normal area(mm2)	Structure(mm)	Insulation thickness(mm)	Overall dia.(mm)
2X0.50	7X9/0.10	0.7	2.20X4.40
2X0.75	7X14/0.10	0.7	2.40X4.80
2X1.00	7X18/0.10	0.8	2.60X5.20
2X1.50	7X27/0.10	0.9	3.10X6.20
2X2.00	7X36/0.10	1	3.90X7.80
2X2.50	7X45/0.10	1.2	4.20X8.40
2X4.00	7X72/0.10	1.3	4.80X9.60



CONDUCTOR		0.35sqmm to 4.0sqmm, bare copper ,tinned copper or CCA material
INSULATION		PE or PVC Insulation
COLOR		transparent, red/black, white and any color
Conductor                                 Diameter		Overall Diameter		Conductor Square Meter
10 AWG		5.5+5.5mm		4.0mm2
12 AWG		4.5+4.5mm		2.5mm2
14 AWG		4.0+4.0mm		2.0mm2
16 AWG		3.5+3.5mm		1.5mm2
18 AWG		3.0+3.0mm		1.0mm2
20 AWG		2.5+2.5mm		0.75mm2
22 AWG		2.0+2.0mm		0.50mm2
24 AWG		1.8+1.8mm		0.35mm2

Nominal Voltage:220V
Temperature Range: -10°C to + 80°C
Used for audio/speaker equipment signal connect
OEM Service
Specifications
1. Transparent PVC,
2. conductor:  oxygen-free copper, Tinned copper , or CCA, CCS
3. Any guage, any color can be supplied
4. Standard thickness
5. Easy to strip and cut
6. Suitable for Audio Device, Speaker ,electrical equipment, power and lighting system
7. Packing:
a) Packing lengths: 100m/roll, 200m/roll, 305m/roll
b) Inner packing: plastic spool , paper drum , or wooden drum,
c) Outer packing: carton box
d) Other packing available according to customer

FAQ

Q1. What kind of products can your company supply?
 A: We specialize in supplying network cable, fiber optical cable, coaxial cable, HDMI cable, VGA cable, telephone cable, speaker cable ,alarm cable and ect.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
 A: Yes, we can.
