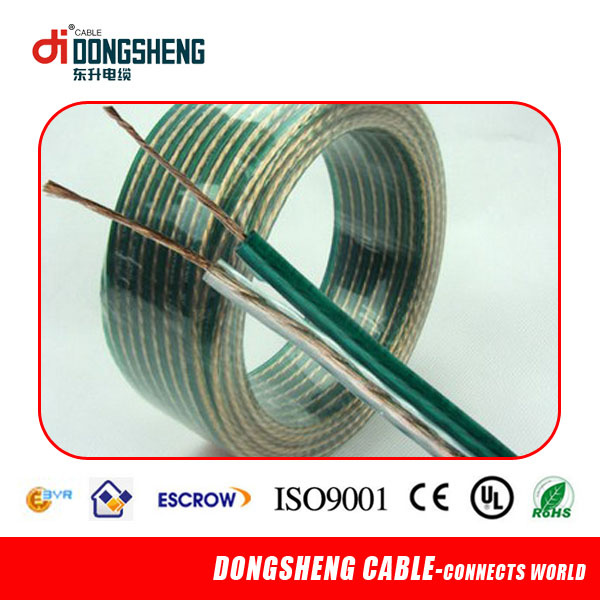

Transparent PVC Insulated Speaker Cable

Name: Transparent PVC Insulated Speaker Cable
Brand: all-electronics-online.com
SKU: 763919545
Availability: InStock
Rating: 4.5 (92 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	30000/Meter
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Transparent PVC Insulated Speaker Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Color:	White, Gray, Black, Yellow, Brown, Red,
Application:	DVD Player, Speaker, Microphone
Species:	HDMI
Connector:	HDMI
Material Shape:	Round Wire
Certification:	RoHS, Ce, ISO9001
Wire Core Material:	Bc/CCS/CCA/Cu/CCAM

Product Description

Application:

Audio analogical signals

Used for installation in normal Indoor environments

Long distance high signal purity

Conductor

Stranded Bare Copper

Stranded Bare Copper &Tinned Copper

Insulation:

PVC (Black & Red Color) or PVC Transparent

Temperature Range:

In motion -10ºC till +70ºC

Nos. of Cores & Section(mm2)	Dimension mm	Insulation Resistance MOhm/KM	Operating Voltage V a.c.	Weight Kg/100mt
2×0.50	2.40×4.80	200	250	2.1
2×0.75	2.50×5.00	200	250	2.9
2×1.00	2.60×5.20	200	250	3.2
2×1.50	2.70×5.60	200	250	4.4
2×2.50	3.50×7.00	200	250	7
2×4.00	4.60×9.20	200	250	11

item	specification	Outer diameter
2*0.35	11/0.20*2C	2.0*4.0
2*0.5	16/0.20*2C	2.2*4.4
2*0.75	24/0.20*2C	2.5*5.0
2*1.0	32/0.20*2C	3.0*6.0
2*1.5	48/0.20*2C	3.5*7.0
2*2.0	64/0.20*2C	3.8*7.6
2*2.5	80/0.20*2C	4.0*8.0
2*4.0	80/0.25*2C	4.5*9.0
2*0.35	44/0.10*2C	2.0*4.0
2*0.5	64/0.10*2C	2.2*4.4
2*0.75	332/0.102C	2.5*5.0
2*1.0	719/0.102C	3.0*6.0
2*1.5	727/0.102C	3.5*7.0
2*2.0	736/0.102C	3.8*7.6
2*2.5	746/0.102C	4.0*8.0
2*4.0	773/0.102C	4.5*9.0
10AWG	724/0.202C	5.0*10
12AWG	105/0.20*2C	4.2*8.4
14AWG	70/0.20*2C	3.8*7.6
16AWG	65/0.16*2C	3.2*6.4
18AWG	41/0.16*2C	3.0*6.0
20AWG	26/0.16*2C	2.6*5.2
22AWG	16/0.16*2C	2.4*4.8
24AWG	10/0.16*2C	2.0*4.0

24 Hours Available
Name:Wendy Lee
Mobile (waht's app):+86 15958030333
Phone:+86-571-61070066
Fax:+86-571-63763198

Web address:www.dongsheng.com

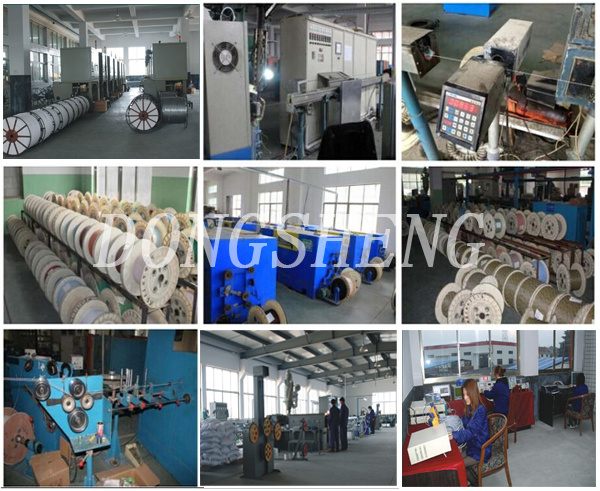

DSC Located at the city of Lin'an, Hangzhou, Hangzhou Lin'an Dongsheng Cable Co., Ltd. is 28km away from Hangzhou City, covering an area of 30000 square meters, with beautiful landscape and convenient communication facilities.
