| Product Name: |
Flat Cable |
| Type: |
Insulated |
| Application: |
Construction |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Conductor Type: |
Flexible |
| Conductor Material: |
Cu CCA Al Tc |
| Range Of Application: |
Construction |
| Brand: |
Gemt |
Product Description

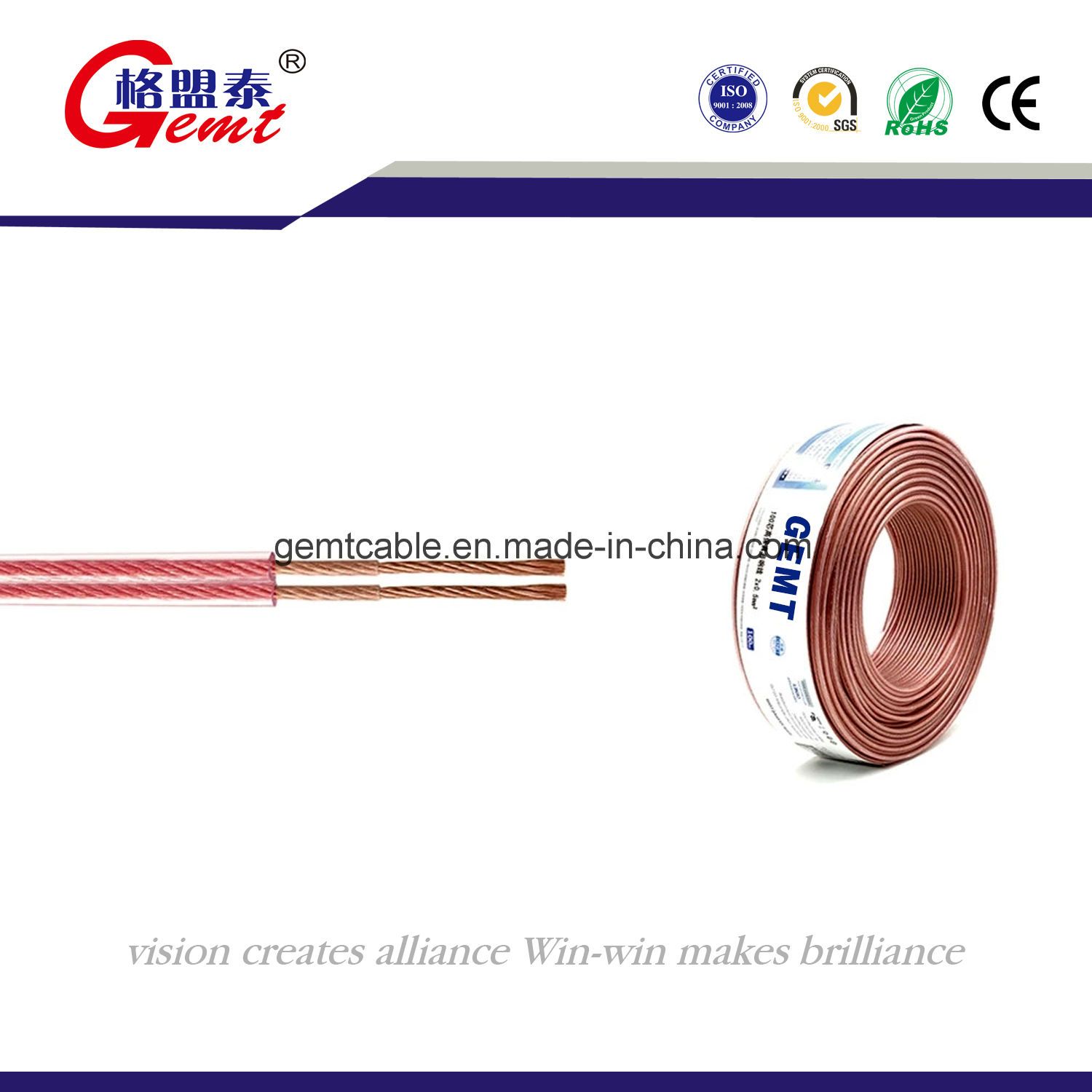

PVC Insulated Twin Parallel SPT Cable
Features:
Standard: GB5023.5-1997
Application: Medium or light type movable electric appliances instruments, household appliances
Structure: Pure copper or CCA, PVC insulator
Rated Voltage: 300/500V, 450/750V
Color: White, Black, Yellow, Red, Blue, etc
Package: Ploy Bag, Paper Box, Plastic Spool
Specification:
| Item | Cross Section of Area (mm) | Conductor Structure (No./mm) | Insulation Thickness (mm) | Cable O.D (mm) | Max.D.C. Resistance of conductor (20°C) |
| Twin Flat Cable | 2x0.12 | 2x7/0.15 | 0.4 | 1.7*3.4 | 81.2 Ohm/km |
| 2x0.2 | 2x12/0.15 | 0.4 | 2.0*4.0 | 75.4 Ohm/km |
| 2x0.3 | 2x16/0.15 | 0.5 | 2.5*5.0 | 69.2 Ohm/km |
| 2x0.4 | 2x23/0.15 | 0.6 | 2.8*5.6 | 52.8 Ohm/km |
| 2x0.5 | 2x28/0.15 | 0.8 | 3.0*6.0 | 39.0 Ohm/km |
| 2x0.75 | 2x42/0.15 | 0.8 | 3.2*6.4 | 26.0 Ohm/km |
| 2x1 | 2x32/0.20 | 0.8 | 3.3*6.6 | 19.5 Ohm/km |
| 2x1.5 | 2x48/0.20 | 0.8 | 3.8*7.6 | 13.3 Ohm/km |
| 2x2.5 | 2x78/0.2 | 1 | 4.2*8.4 | 7.6 Ohm/km |
Brief Introduction of GEMT Cable Co., Ltd
1. WHO ARE WE?
Gemt Cable Co., Ltd is a professional manufacturer and supplier of Lan cable, Flat cable, Welding cable, Speaker cable, Audio cable, Video cable, Coaxial cable, Power cable, Telephone cable, Home electrical cable, etc.
2. WHEN WE BORN?
Gemt Cable Co., Ltd is establish in 1991. For now we have over 20 years in manufacturing cables and wires. We become more mature, more responsibility to our customers!
3. WHERE ARE WE?
We are located in Nanshan 2nd Industrial Zone, Yantian District, Fenggang Town, Dongguan City, Guangdong Province, China. Welcome to visit our factory anytime!
4. WHAT WE HAVE?
We have advanced production lines and inspecting equipments. Our products is with CE,CB,RoHS certificate, by strictly confirming to GB,IEC and ISO9001:2000 standards.
5. TO WHICH MARKET?
6. WHY CHOOSE US(GEMT)?
G--Guaranteed quality
E--Effective service
M--Mutual benefit
T--Top technique
GEMT Cable, Friend Reliable!!
Why choose us?
1. We produce cables with CCC,CE, RoHS certificates.
2. We are a unit of researcher, manufacturer and seller.
3. We have a professional research team in which the members are graduated from famous universities(including master and doctor) home and abroad.
4. We will give you the lowest price for we do business not only for ourselves, but for our customers.
5. Early delivery to any countries or areas.
If any of our product is of interest to you, please don't hesitate to contact us, we'll give you the best service and lowest price!
Why Choose Us(GEMT):
G--Guaranteed quality
E--Effective service
M--Mutual benefit
T--Top technique
GEMT Cable, Friend Reliable

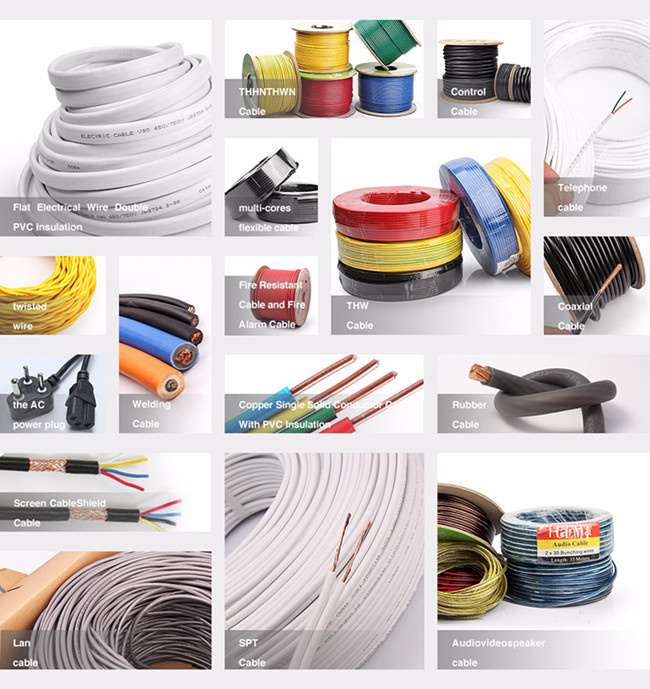

Related Products
Our Company
Gemt Cable Co., Ltd is a professional manufacturer and supplier of Lan cable, Flat cable, Welding cable, Speaker cable, Audio cable, Video cable, Coaxial cable, Power cable, Telephone cable, Home electrical cable, etc. With years of export experience along with excellent quality, advanced services and competitive prices, Gemt has won numerous customers' trust and support.

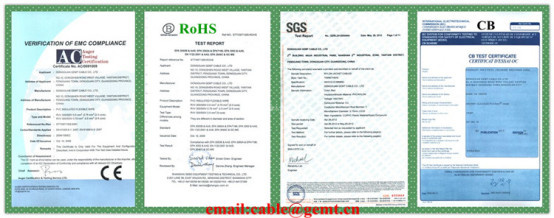

Certifications
