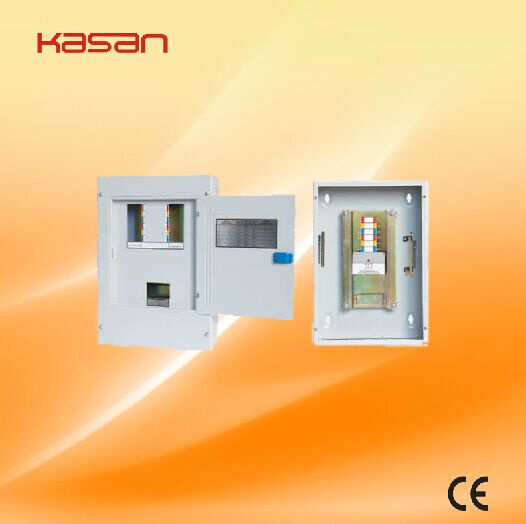

Triple Phase Emdt Distribution Box

Name: Triple Phase Emdt Distribution Box
Brand: all-electronics-online.com
SKU: 702354162
Availability: InStock
Rating: 4.7 (86 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EMDT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ways:	4.6.8.10.12ways
Model.:	Flush.Surface
Color Code:	Ral7032,Ral7035
Type:	Distribution Metering Box
Structure:	Protection

Product Description

Specifications
made of standard cold-rolled steel and use powder-coating techniques to process the crust. Finished over rust protected steel en
The series products are made of standard cold-rolled steel and use powder-coating techniques to process the crust. Finished over rust protected steel enclosure for lasting durability. The distribution box fit for surface and flush installation.

Specification: Single Phase and Neutral Panelboard
Three Phase Standard Multipole Panelboard

Model	type	phase	way	main switch
flush	Din-Rail	triple	4.6.8.10.12	MCB ELCB MCCBisolator
surface	Din-Rail	triple	4.6.8.10.12	ELCB+Isolator

surface model	H	W	D	E	F
4WAY	506	350	105	496	340
6WAY	560	350	105	550	340
8WAY	614	350	105	604	340
10WAY	668	350	105	658	340
12WAY	722	350	105	712	340

flush model	H	W	D	E	F
4WAY	526	370	105	496	340
6WAY	580	370	105	550	340
8WAY	634	370	105	604	340
10WAY	688	370	105	658	340
12WAY	742	370	105	712	340
