Triplex Cyclops/Lepas/Shrimp/Arca Phase AAC/Messenger AAAC ABC Cable

Name: Triplex Cyclops/Lepas/Shrimp/Arca Phase AAC/Messenger AAAC ABC Cable
Brand: all-electronics-online.com
SKU: 794651275
Availability: InStock
Rating: 4.7 (59 reviews)

Price:	US $ 2500/Ton
Min Order:	20/Ton
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	cyclops lepas shrimp Arca
Standards:	ANSI/Icea S-76-474
Factory:	100000mm2
QC:	25
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Aluminum
Insulation Material:	XLPE
Certification:	CCC
Range Of Application:	Overhead Line
Brand:	Huatong

Product Description

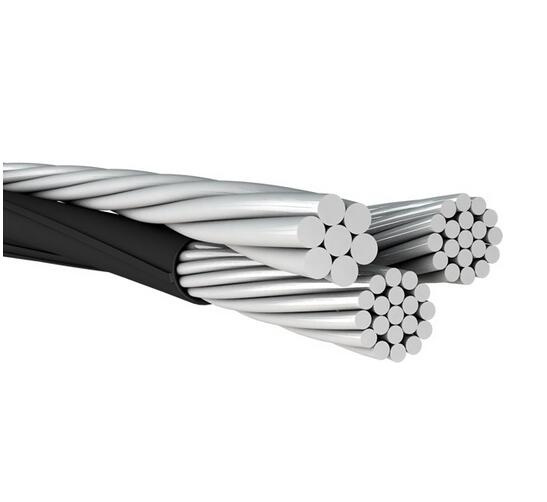

Triplex Cyclops/Lepas/Shrimp/Arca Phase AAC/Messenger AAAC ABC Cable

The basic construction is as follows:
2 power cores consisting of standard aluminium conductors, insulated withXLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)

The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors.

Your best choice :Huatong Cable Inc.
(1) ,More than 30 years experience.
(2) ,100,000m² factory,200 staffs,annual output 100,000 metic tons.

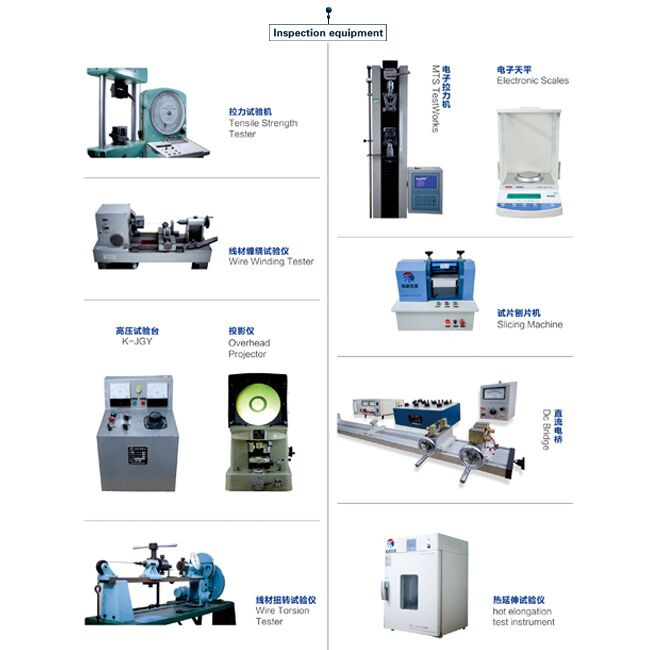

(3) ,Sound Quality Control
- Material inspection;
- manufacturing inspection;
- Finished products inspection;
- Inspection before delivery.
- Third party inspection.
- Inspection of storage at port of departure.
(4),ISO Certificated.
(5),Plenty of material and lobor gurantee the delivery prompt and price competitive.
(6),24/7 service.

IF YOUR HAVE ANY INTERESTED PRODUCTS, PLS FEEL FREE TO CONTACT OUR SALES TEAM.

Code* Word	Phase Conductor			Bare Neutral Messenger			Weight per 1000 ft. (lbs.)		Allowable Ampacities+
Code* Word	Size (AWG or kcmil)	Strand- ing	Insul. Thick. (mils)	Size (AWG or kcmil)	Strand-ing	Rated Strength (lbs.)	XLP	POLY	XLP	POLY
ACSR NEUTRAL-MESSENGER
Paludina	6	1	45	6	6/1	1190	109	109	85	70
Voluta	6	7	45	6	6/1	1190	114	114	85	70
Whelk	4	1	45	4	6/1	1860		164	115	90
Periwinkle	4	7	45	4	6/1	1860	172	172	115	90
Conch	2	7	45	2	6/1	2850	262	262	150	120
Neritina	1/0	7	60	1/0	6/1	4380	420	420	205	160
Cenia	1/0	9	60	1/0	6/1	4380	414	414	205	160
Runcina	2/0	7	60	2/0	6/1	5310	520	520	235	185
Triton	2/0	11	60	2/0	6/1	5310	512	512	235	185
Mursia	3/0	17	60	3/0	6/1	6620	635	635	275	215
Zuzara	4/0	18	60	4/0	6/1	8350	789	789	315	245
Limpet	336.4	19	80	336.4	18/1	8680	1167	1167	420	325

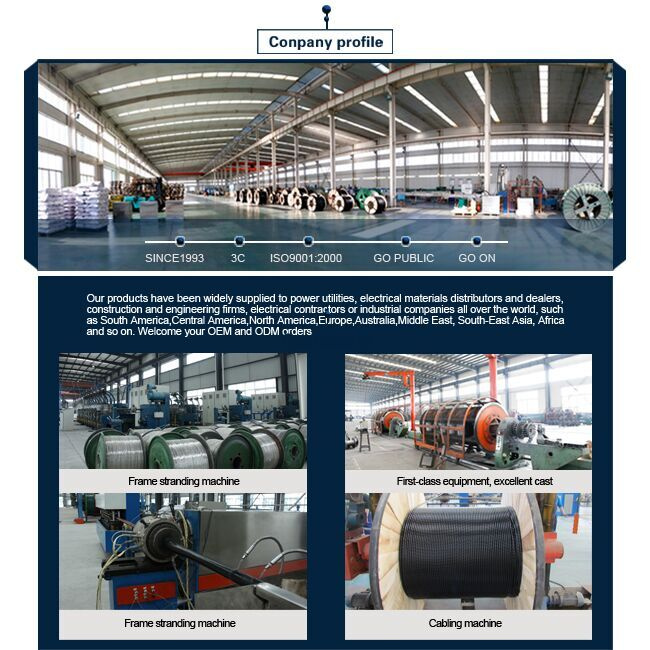

Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.

Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.

In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
