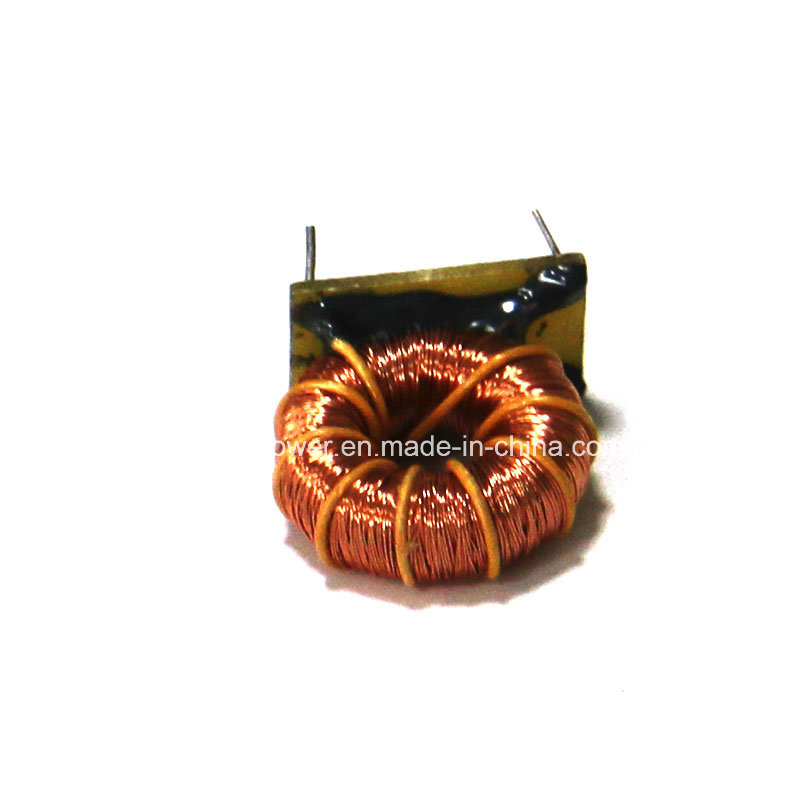

Tripple Wire Wound Common Mode Choke Coil Inductor

Name: Tripple Wire Wound Common Mode Choke Coil Inductor
Brand: all-electronics-online.com
SKU: 785396255
Availability: InStock
Rating: 4.3 (69 reviews)

Price:	US $ 0.1-0.2/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LF-TR131300-001R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pin:	Different Side
Type:	Choke Inductor
Structure:	Inductive Choke
Packaging Form:	Carton
Brand:	XP Power

Product Description

1. Toroidal choke coils
2. Ferrite core toroid choke coils
3. Choke coil:
-Small profile
-Large current
-Low resistance
-MPP, hi-flux, sendust, RF carbonyl, and iron power core
4. For excellent EMI suppressor
5. High frequency and low loss
6. Common mode filter

XP Part Number	Inductance (mH) @ 1KHz	IDC(A)MAX.	DCR()MAX.	Wire Diameter (Φ) mm
XP-CMC1508-0.625MH	0.625	1	0.04	0.41
XP-CMC1508-0.1MH	0.1	1	0.06	0.41
XP-CMC1508-0.225MH	0.225	1	0.07	0.41
XP-CMC1508-0.4MH	0.4	1	0.1	0.41
XP-CMC1508-0.625MH	0.625	1	0.125	0.41
XP-CMC-1508-0.9MH	0.9	2	0.03	0.51
XP-CMC1508-1.225MH	1.225	2	0.04	0.51
XP-CMC1508-1.6MH	1.6	2	0.06	0.51
XP-CMC1508-2.0MH	2.0	2	0.075	0.51
XP-CMC1508-2.5MH	2.5	3	0.02	0.58
XP-CMC1508-3.0MH	3.0	3	0.03	0.58
XP-CMC1813-0.85MH	0.85	2	0.05	0.58
XP-CMC1813-0.62MH	0.62	2	0.075	0.58
XP-CMC1813-0.1MH	0.1	2	0.085	0.58
XP-CMC1813-0.22MH	0.22	2	0.11	0.58
XP-CMC1813-0.4MH	0.4	2	0.2	0.58
XP-CMC1813-0.62MH	0.625	5	0.035	0.58
XP-CMC3118-0.05MH	0.055	5	0.04	0.76
XP-CMC3118-0.22MH	0.22	4	0.046	0.76
XP-CMC3118-0.49MH	0.495	4	0.06	0.76
XP-CMC3118-0.88MH	0.88	2	0.2	0.58
XP-CMC3118-1.37MH	1.375	4	0.13	0.76
XP-CMC3118-1.98MH	1.98	5	0.072	0.91
XP-CMC3118-2.69MH	2.695	10	0.02	1.17

XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.

The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.

XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
